1.4 Image Plates with IPs in a Nutshell
The cassettes are similar to the DX-S digitizer cassettes, however not
compatible.
The IPs are named "MD40" (MD = media definition; 40 = version).
These are flexible IPs that are also used in the previous digitizers,
except DX-S.
The tray is used as carrier to pull out the image plate and put it back into the
cassette. The tray only leaves the cassette for approx. 3 cm.
Shutter
Lock
517511al.cdr
RF-tag
Tray
Image plate

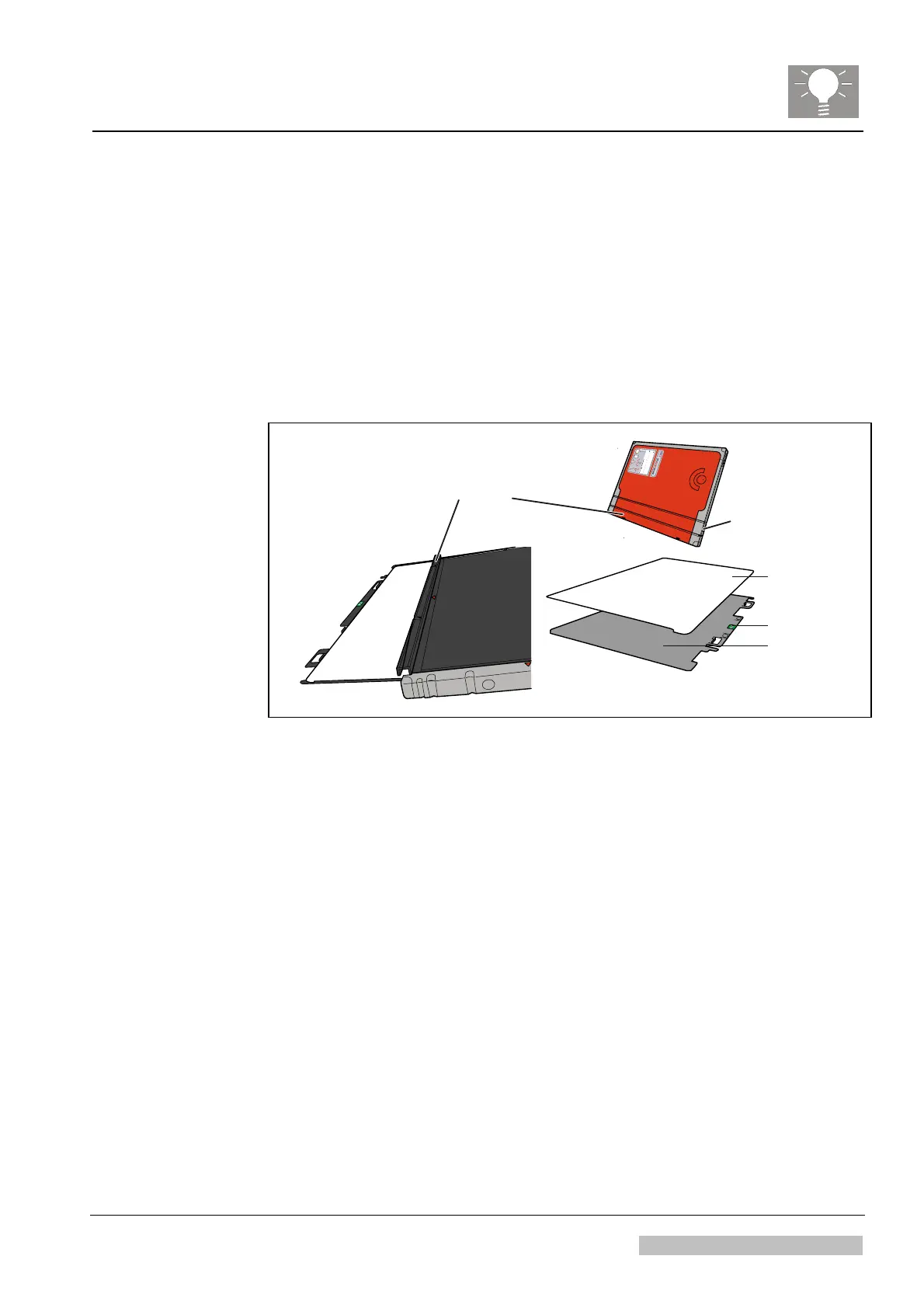

Figure 3: CR30-X Cassette with Image Plate "MD40"
