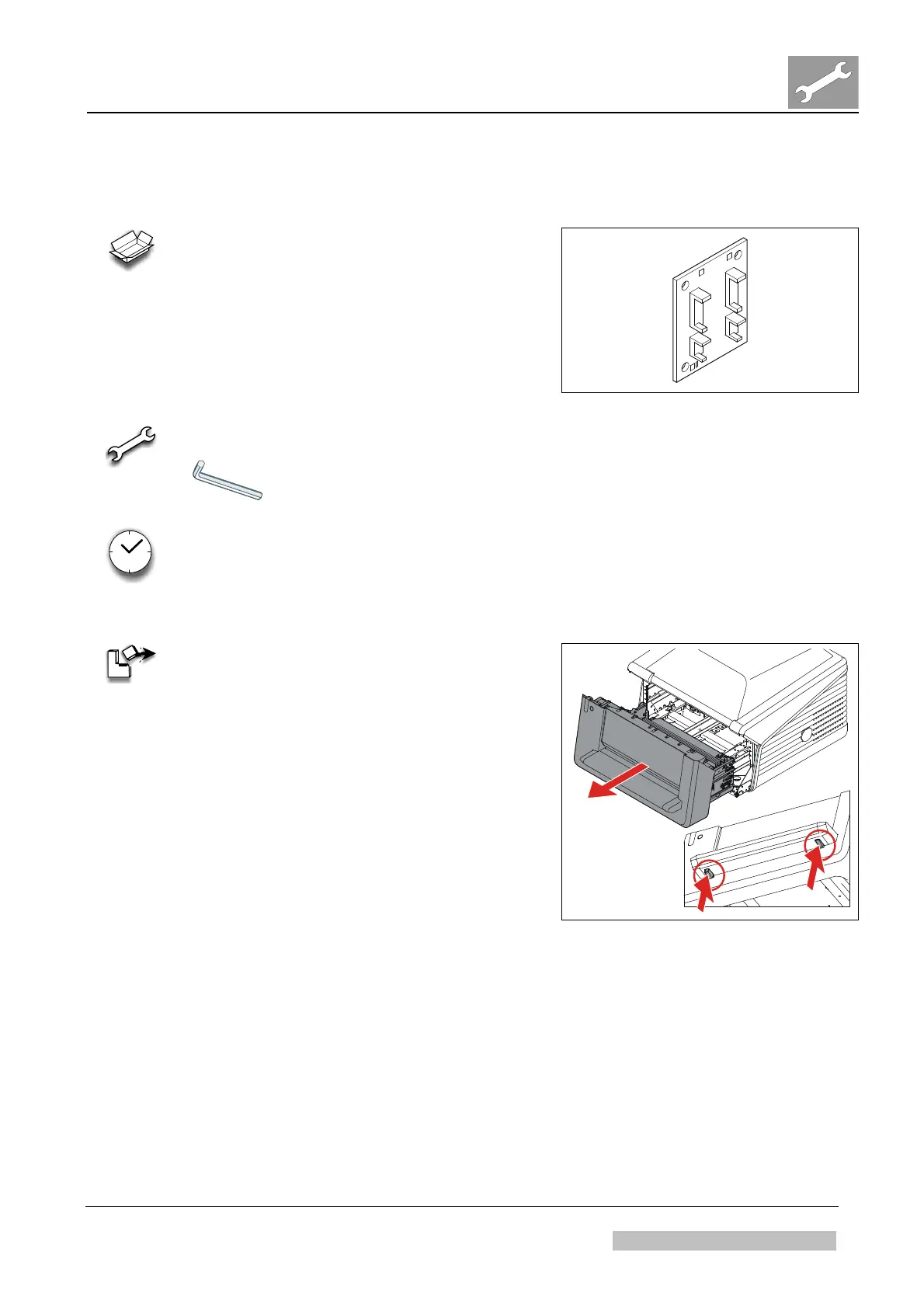

4.2 Replacing the Distributor Board
REQUIRED SPARE PART*:
CM+9 5175 1560 0
* The last digit in the spare part number indicates the spare
part revision at release of this document. When ordering,
the actual revision of the spare part is delivered.
Figure 234
REQUIRED TOOLS:
3 mm
REQUIRED TIME:
30 min.
DISASSEMBLY:
(1) Switch off the digitizer.
(2) Disconnect the mains cable.
(3) Simultaneously press the two buttons (A)
positioned underneath the feed table.
(4) Pull out cassette unit (B).
A
A
B
Figure 235
