Repair and Service
Replacements / Repair Procedures
DOCUMENT CONTROL NOTE:
The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.
Edition 1, Revision 2 CR 30-X Chapter 3.5 / 98
03-2009 Type 5175 / 100/110 Agfa Company Confidential

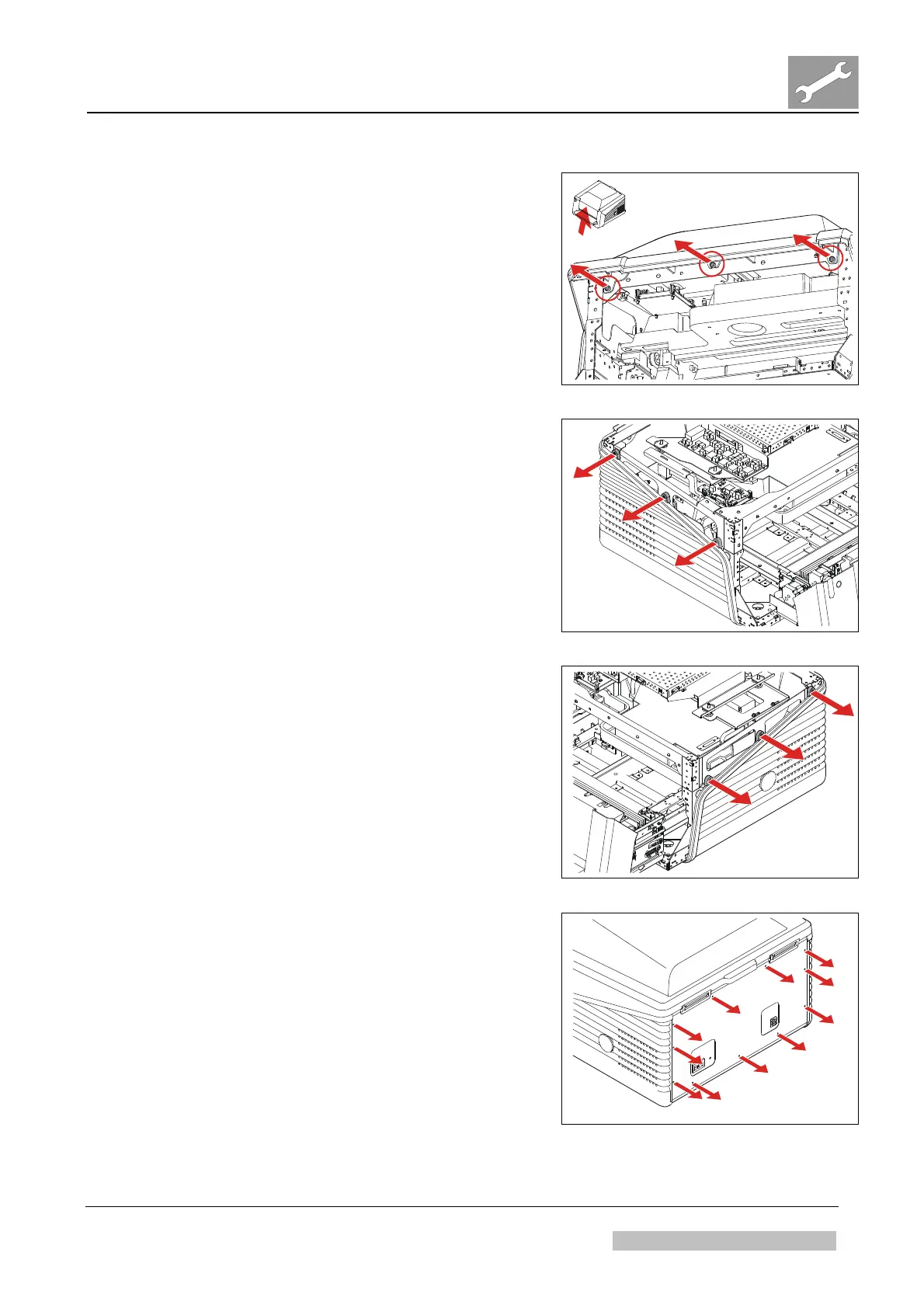

(5) Remove 3 screws of the top cover.
(6) Remove top cover.
Figure 236
(7) Remove 3 screws of the left cover
(8) Remove left cover
Figure 237
(9) Remove 3 screws of the right cover.
(10) Remove right cover.
Figure 238
(11) Remove screws of the rear cover.
(12) Remove rear cover.
Figure 239
