AGFA CR 30-X - Replacing the Roller Clamping Stepper Motor (M6)

DD+DIS150.06E
Repair and Service
Replacements / Repair Procedures
DOCUMENT CONTROL NOTE:
The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.
Edition 1, Revision 2 CR 30-X Chapter 3.5 / 59
03-2009 Type 5175 / 100/110 Agfa Company Confidential

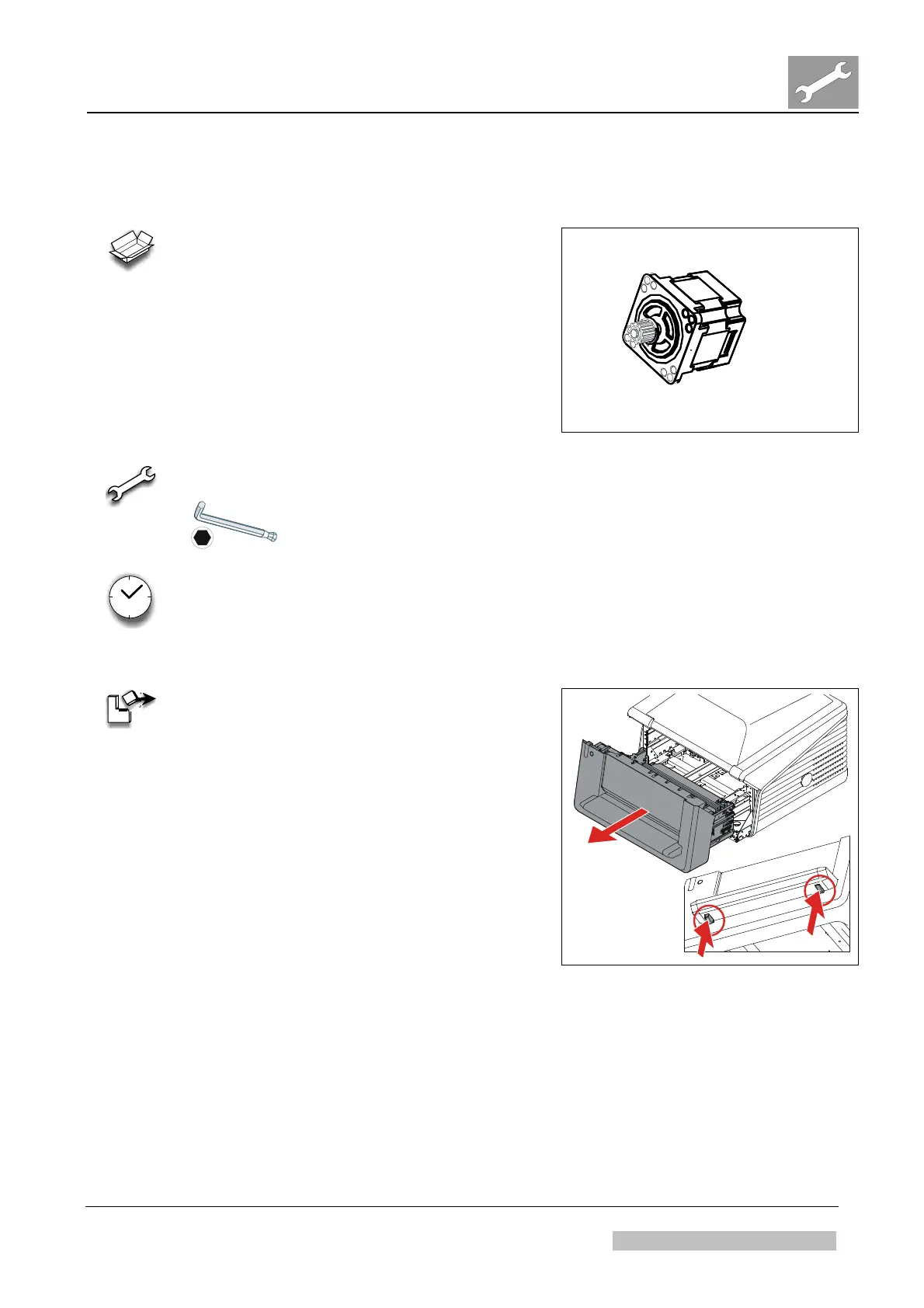

2.19 Replacing the Roller Clamping Stepper Motor (M6)
REQUIRED SPARE PART*:
CM+9 5175 8680 0
* The last digit in the spare part number indicates the spare
part revision at release of this document. When ordering,
the actual revision of the spare part is delivered.
Figure 141
REQUIRED TOOLS:
3 mm,
with ball-shaped head
REQUIRED TIME:
30 min.
DISASSEMBLY:
(1) Switch off the digitizer.
(2) Disconnect the mains cable.
(3) Simultaneously press the two buttons (A)
positioned underneath the feed table.
(4) Pull out cassette unit (B).
A
A
B
Figure 142
