Repair and Service
Replacements / Repair Procedures
DOCUMENT CONTROL NOTE:
The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.
Edition 1, Revision 2 CR 30-X Chapter 3.5 / 13
03-2009 Type 5175 / 100/110 Agfa Company Confidential

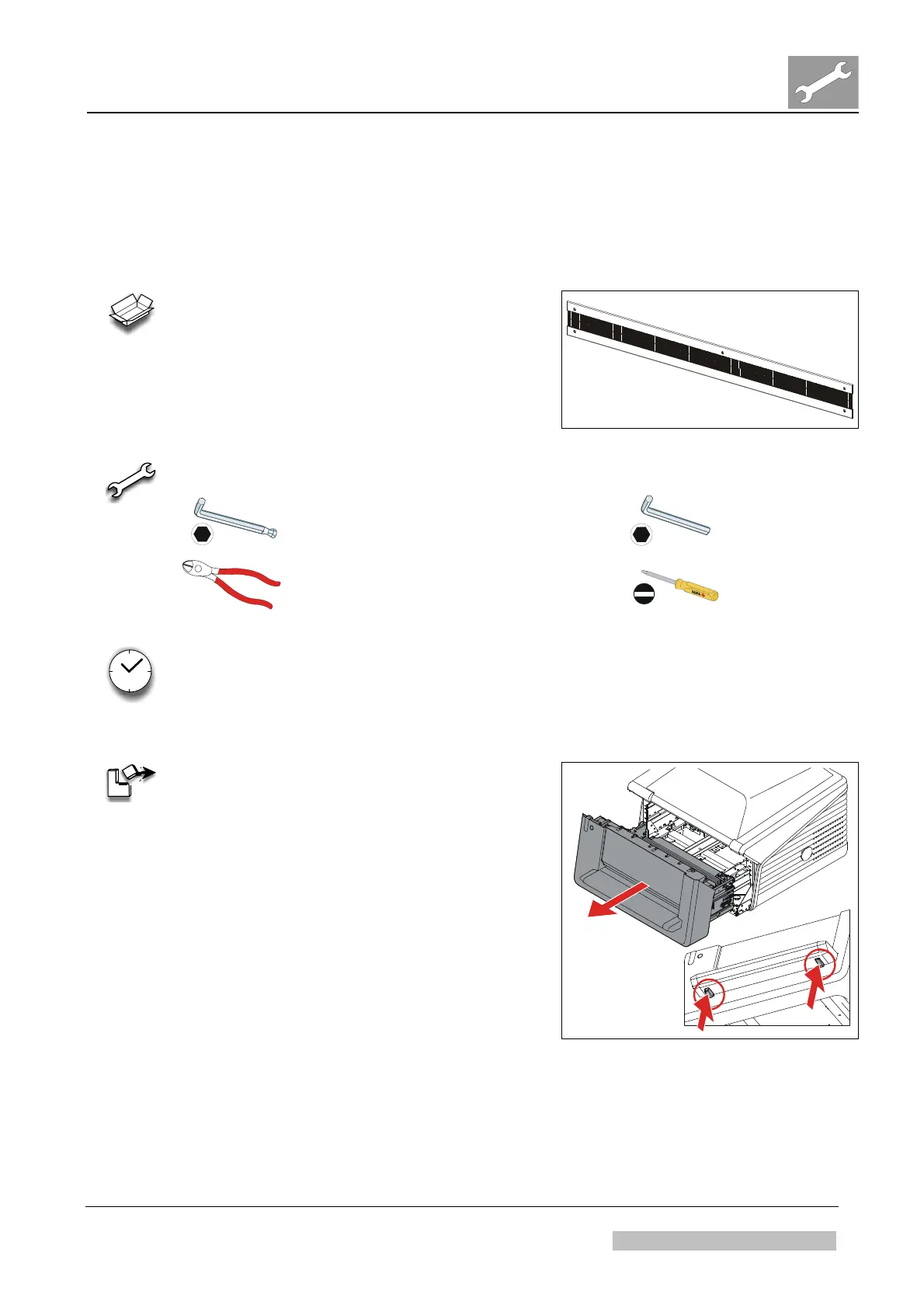

2 Replacements in Cassette Unit
2.1 Replacing the Antistatic Brush Cassette Unit Entry
REQUIRED SPARE PART*:
CM+9 5160 5006 0
* The last digit in the spare part number indicates the spare
part revision at release of this document. When ordering,
the actual revision of the spare part is delivered.
Figure 19
REQUIRED TOOLS:
3 mm,
with ball-shaped head
2 mm
Medium size
REQUIRED TIME:
90 min.
DISASSEMBLY:
(1) Switch off the digitizer.
(2) Disconnect the mains cable.
(3) Simultaneously press the two buttons (A)
positioned underneath the feed table.
(4) Pull out cassette unit (B).
A
A
B
Figure 20
