AGFA CR 30-X - Replacing the PMI Board

DD+DIS150.06E
Repair and Service
Replacements / Repair Procedures
DOCUMENT CONTROL NOTE:
The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.
Edition 1, Revision 2 CR 30-X Chapter 3.5 / 89
03-2009 Type 5175 / 100/110 Agfa Company Confidential
5175R3-3_103

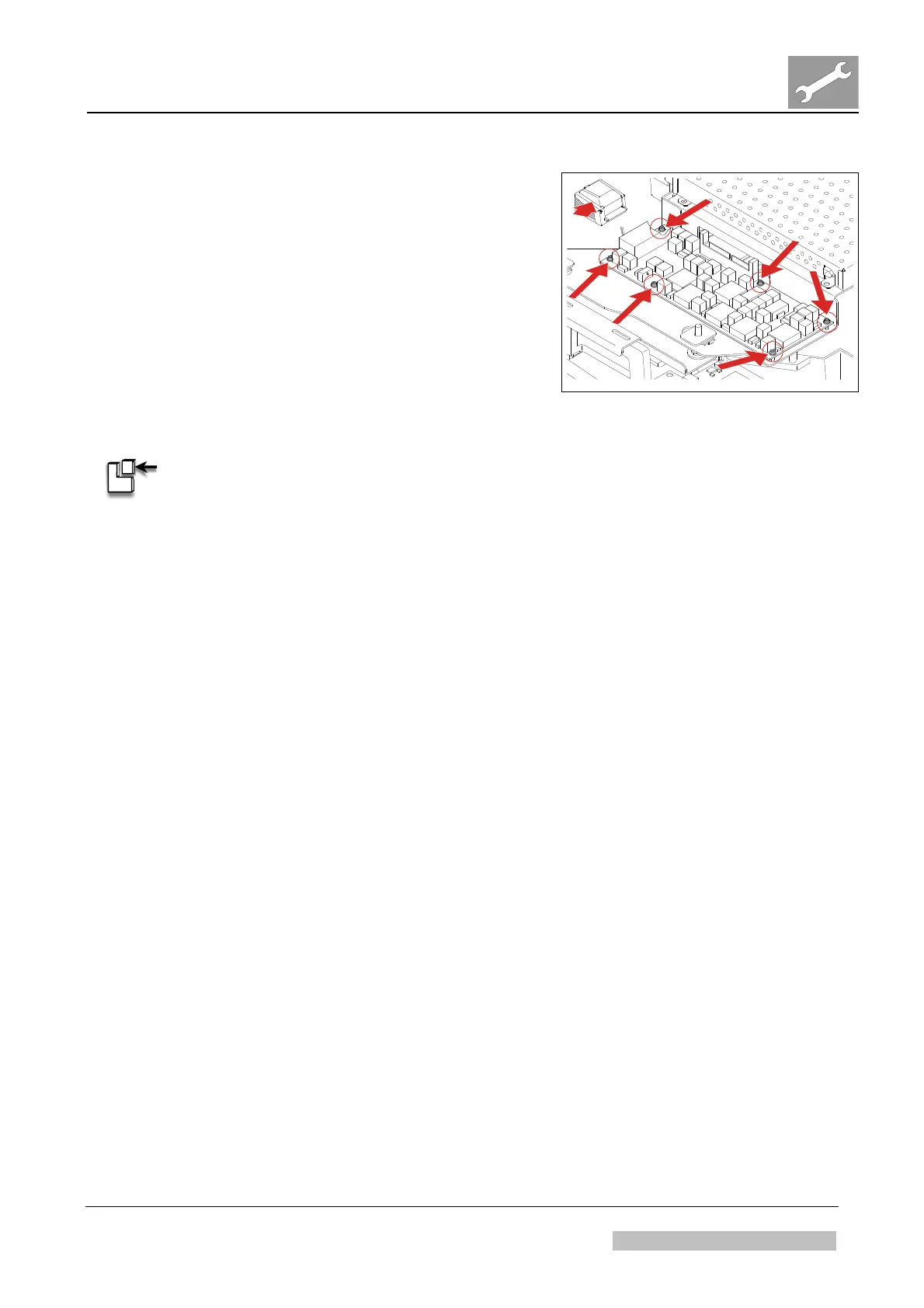

(7) Disconnect all cables at the PMI Power
distribution board.
(8) Open the 6 mounting screws.
(9) Remove the PMI Power distribution board.
Figure 219
ASSEMBLY:
(1) Mount in reverse order.
Verification:
(1) Switch on the digitizer.
(2) Wait till the status indicator at the digitizer switches to green
(takes approx. 1,5 min.).
(3) Insert cassette with unexposed IP in the digitizer.
(4) At the workstation select examination type “System diagnosis – Flatfield”.
(5) Select “ID” to identify the image: Scanning starts.
(6) Confirm that the image arrives at the workstation.
(7) Reject the image.
Result:
The PMI Power Distribution Board is replaced.
3.4 Replacing the PMI Board
The replacement instructions for the PMI Board, spare part number*
CM+9 5175 2180 0, are enclosed to the spare part.
* The last digit in the spare part number indicates the spare part revision at release of this document.
When ordering, the actual revision of the spare part is delivered.
