Repair and Service
Adjustments and Calibrations
DOCUMENT CONTROL NOTE:
The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.
Verification
(1) Connect the power cord.
(2) Switch on the digitizer.
(3) Open the cassette unit approximately 1 cm.
(4) Confirm that the switch opens and switches off the digitizer.
(5) Close the cassette unit.
(6) Wait till the green LED lights up.
Result
The cassette unit safety switch is adjusted.
2.4 Cassette Edge Sensor Position Adjustment
Purpose
Adjustment of the switch position, so that it reliably detects whether the cassette is
inserted the right way.
Use Case
After replacement of the cassette edge sensor

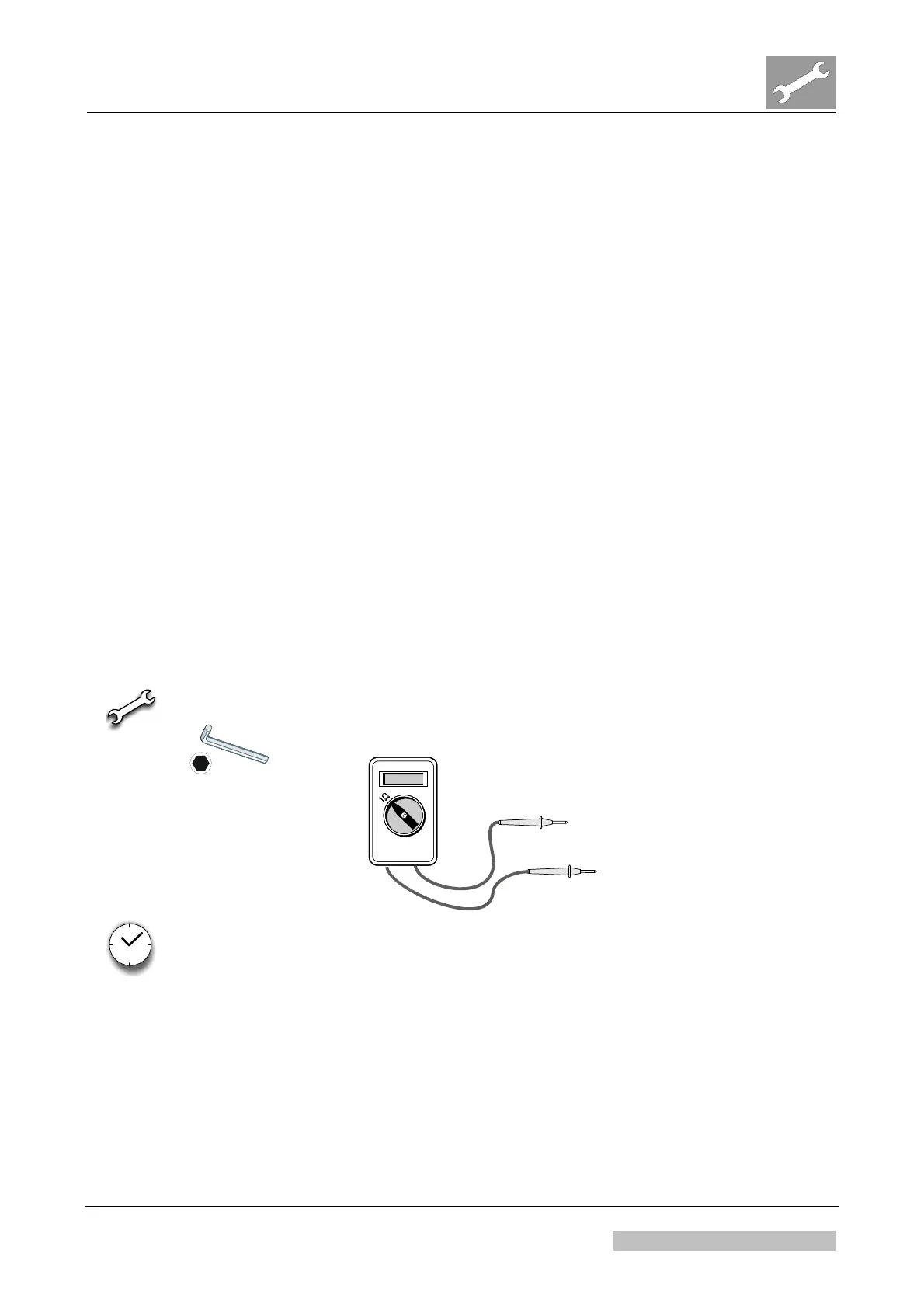

REQUIRED TOOLS:
1,5 mm
Optional:
200
Multimeter
(Ohmmeter)
REQUIRED TIME:
20 minutes
Edition 1, Revision 3 CR 30-X Chapter 3.6 / 16
10-2009 Type 5175 / 100/110 Agfa Company Confidential
