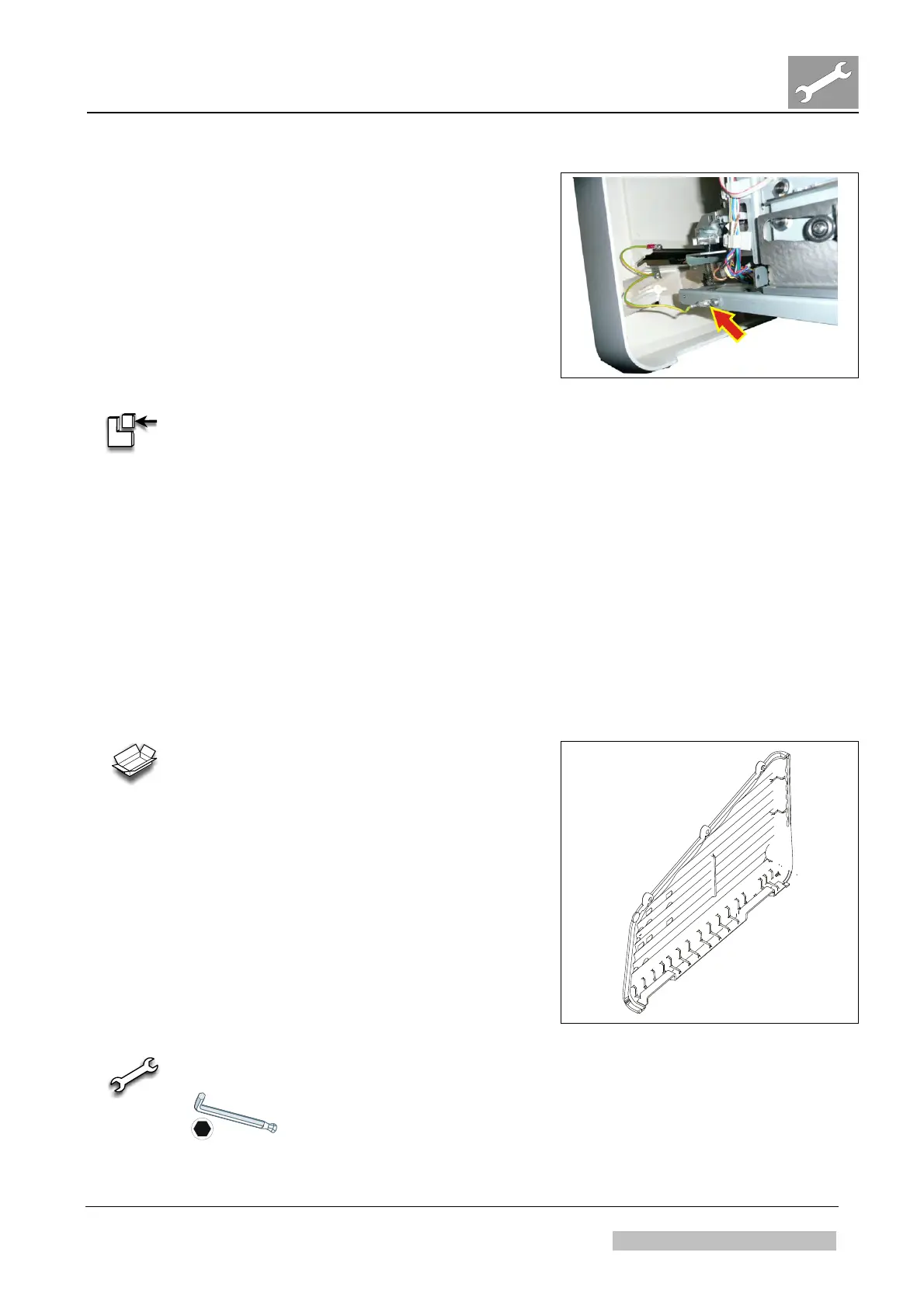

AGFA CR 30-X - Replacing the Left Cover

DD+DIS150.06E
Repair and Service
Replacements / Repair Procedures
DOCUMENT CONTROL NOTE:
The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.
Edition 1, Revision 2 CR 30-X Chapter 3.5 / 7
03-2009 Type 5175 / 100/110 Agfa Company Confidential
(10) Disconnect ground cable at right hand side.
(11) Remove front cover.
Figure 7
ASSEMBLY:
(1) Mount in reverse order.
Verification:
(1) Switch on the digitizer.
(2) Wait till the green light at the user interface lights up
(takes approx. 1,5 min.).
Result:
The front cover is replaced.
1.2 Replacing the Left Cover
REQUIRED SPARE PART*:
CM+9 5175 1503 1
* The last digit in the spare part number indicates the spare
part revision at release of this document. When ordering,
the actual revision of the spare part is delivered.
Figure 8
REQUIRED TOOLS:
3 mm,
with ball-shaped head
