Repair and Service
Replacements / Repair Procedures
DOCUMENT CONTROL NOTE:
The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.
Edition 1, Revision 2 CR 30-X Chapter 3.5 / 6
03-2009 Type 5175 / 100/110 Agfa Company Confidential

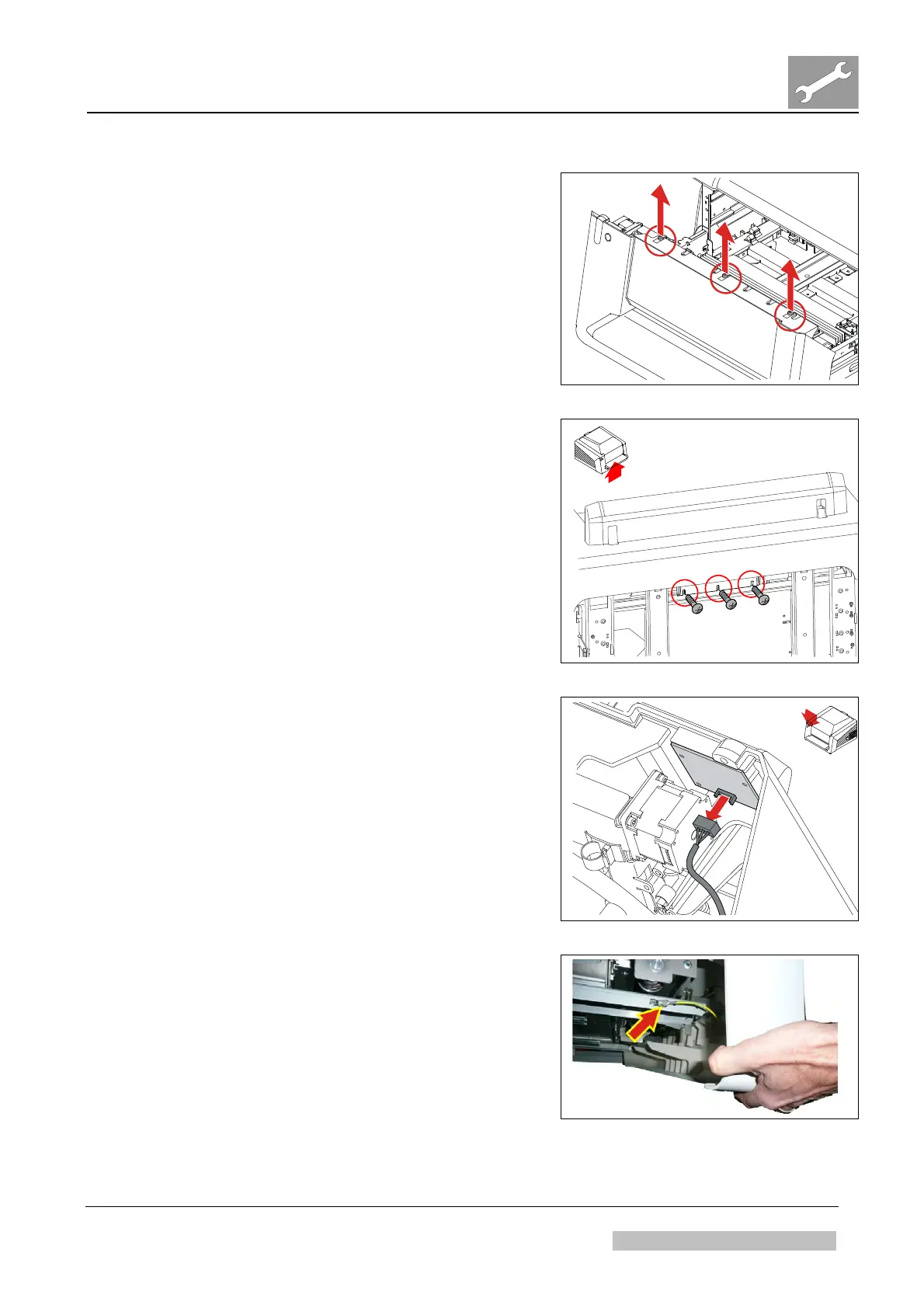

(5) Remove 3 upper screws.
Figure 3
(6) Open 3 lower screws at front cover a few
turns.
5175R3-5_004.cdr
Figure 4
(7) Press both handles and pull out front cover
approx. 5 cm.
(8) Disconnect cable at user interface board.
See Figure 5.
Figure 5
(9) Disconnect ground cable at left hand side.
Figure 6
