AGFA CR 30-X - Page 147

DD+DIS150.06E
Repair and Service
Replacements / Repair Procedures
DOCUMENT CONTROL NOTE:
The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.
Edition 1, Revision 2 CR 30-X Chapter 3.5 / 5
03-2009 Type 5175 / 100/110 Agfa Company Confidential

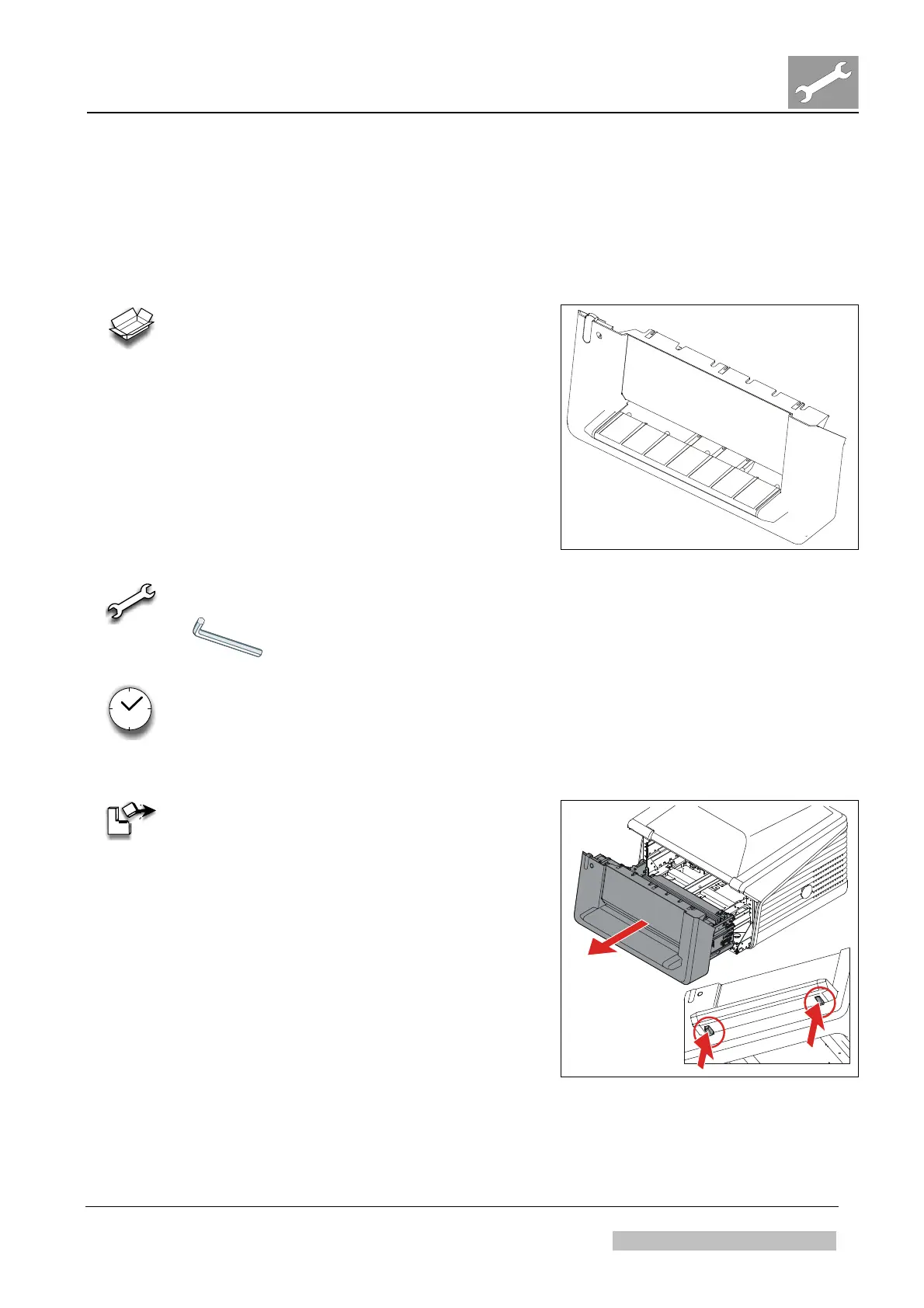

1 Replacing the Covers
1.1 Replacing the Front Cover
REQUIRED SPARE PART*:
Type 5175/100: CM+9 5175 1630 2
Type 5175/110: CM+9 5175 1650 0
* The last digit in the spare part number indicates the spare
part revision at release of this document. When ordering,
the actual revision of the spare part is delivered.
Figure 1
REQUIRED TOOLS:
3 mm
REQUIRED TIME:
10 min.
DISASSEMBLY:
(1) Switch off the digitizer.
(2) Disconnect the mains cable.
(3) Simultaneously press the two buttons (A)
positioned underneath the feed table.
(4) Pull out cassette unit (B).
A
A
B
Figure 2
