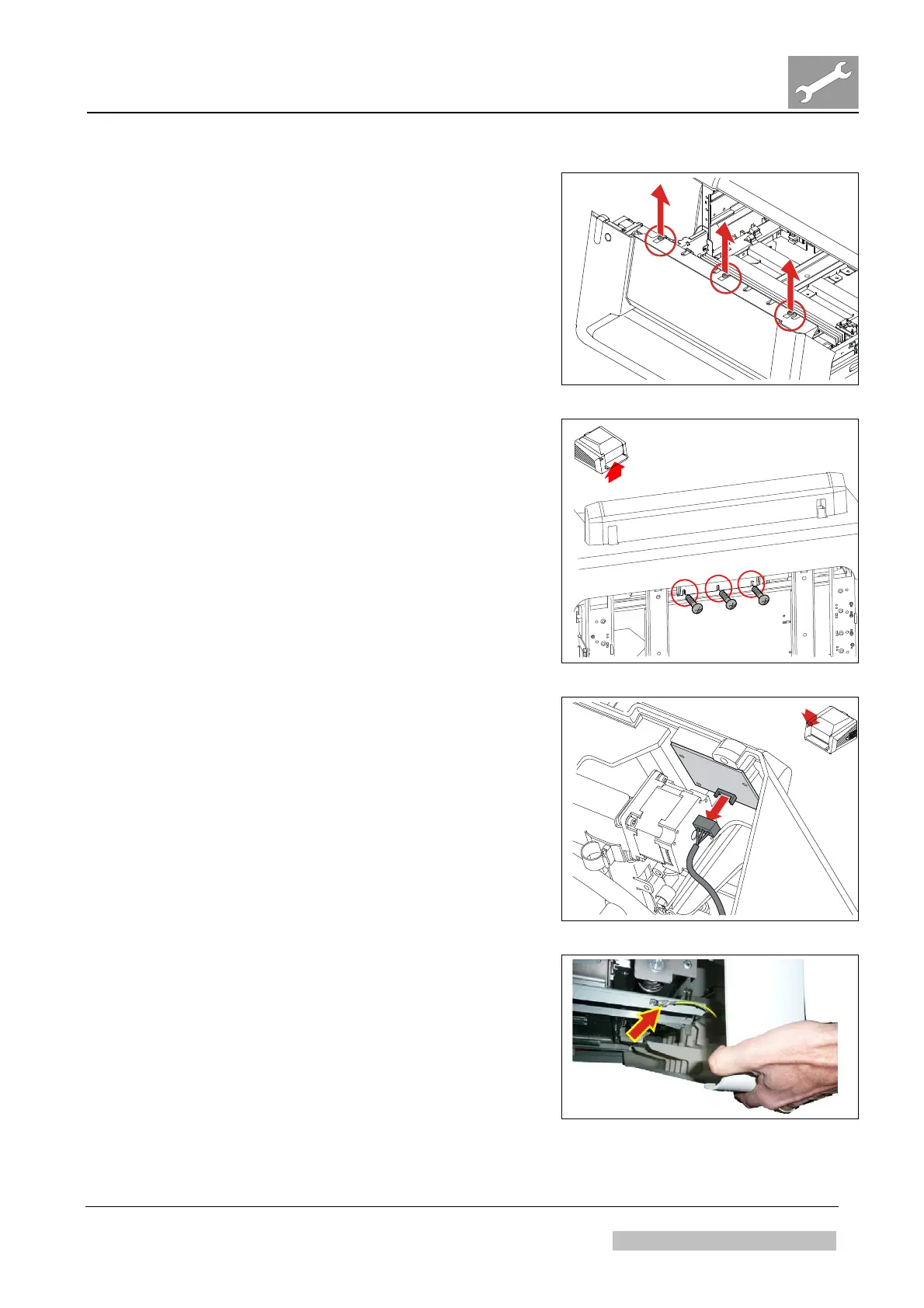

(5) Remove 3 upper screws.
Figure 143
(6) Open 3 lower screws at front cover a few
turns.
5175R3-5_004.cdr
Figure 144
(7) Press two handles and pull out front cover
approx. 5 cm.
(8) Disconnect cable at user interface board.
See Figure 145.
Figure 145
(9) Disconnect ground cable at left hand side.
Figure 146
