DD+DIS150.06E
Repair and Service
Replacements / Repair Procedures
DOCUMENT CONTROL NOTE:
The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.
Edition 1, Revision 2 CR 30-X Chapter 3.5 / 26
03-2009 Type 5175 / 100/110 Agfa Company Confidential

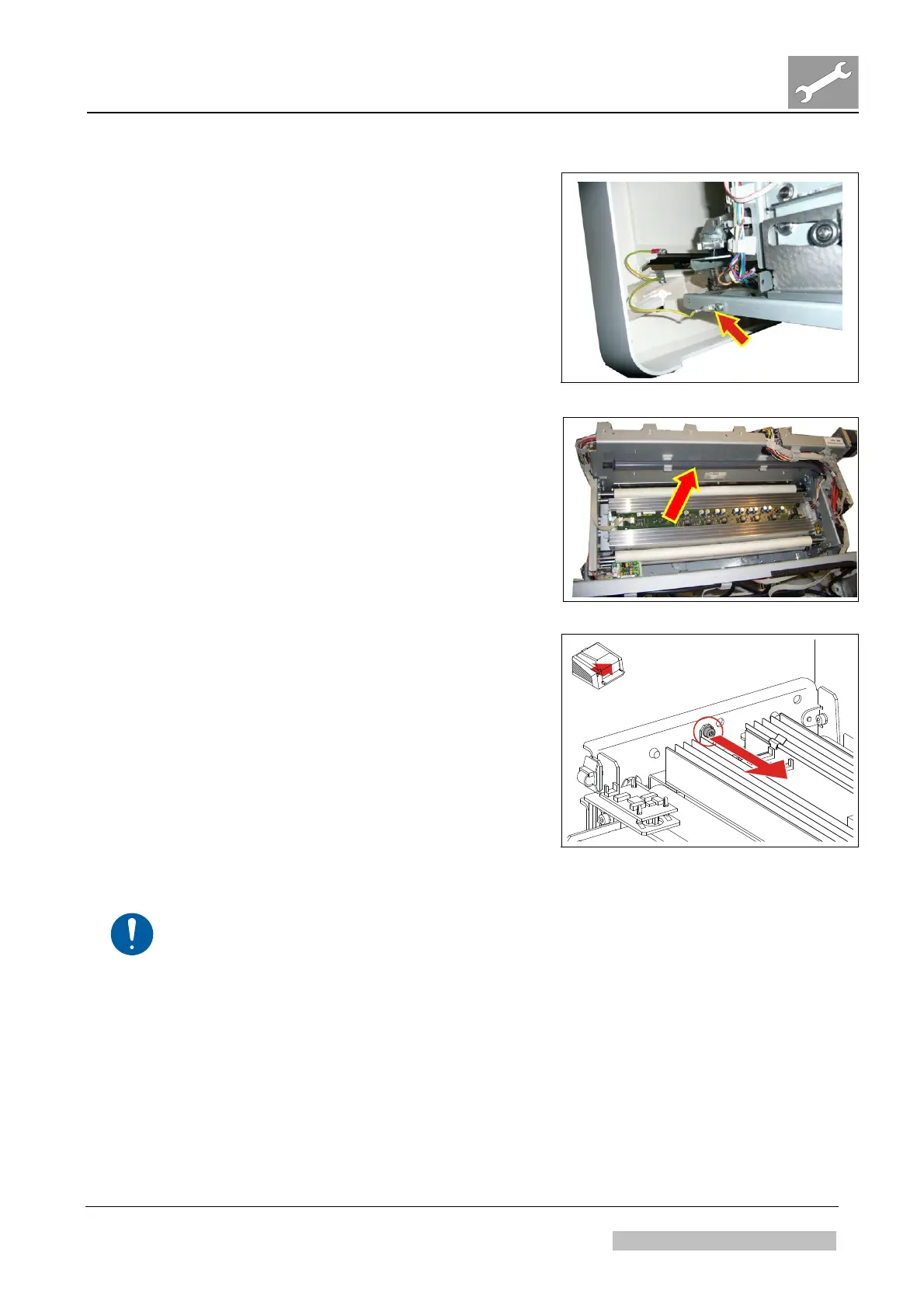

(10) Disconnect ground cable at right hand side.
(11) Remove front cover.
Figure 56
(12) Take out cleaning brush holder.
Figure 57
(13) Remove screw at erasure unit.
(14) Disconnect two cables at erasure unit.
(15) Take out erasure unit.
Figure 58
CAUTION:
IP jams possible if IP guide plate is deformed.
Do not bend IP guide plate at removal.
