DD+DIS150.06E
Repair and Service
Replacements / Repair Procedures
DOCUMENT CONTROL NOTE:
The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.
Edition 1, Revision 2 CR 30-X Chapter 3.5 / 95
03-2009 Type 5175 / 100/110 Agfa Company Confidential

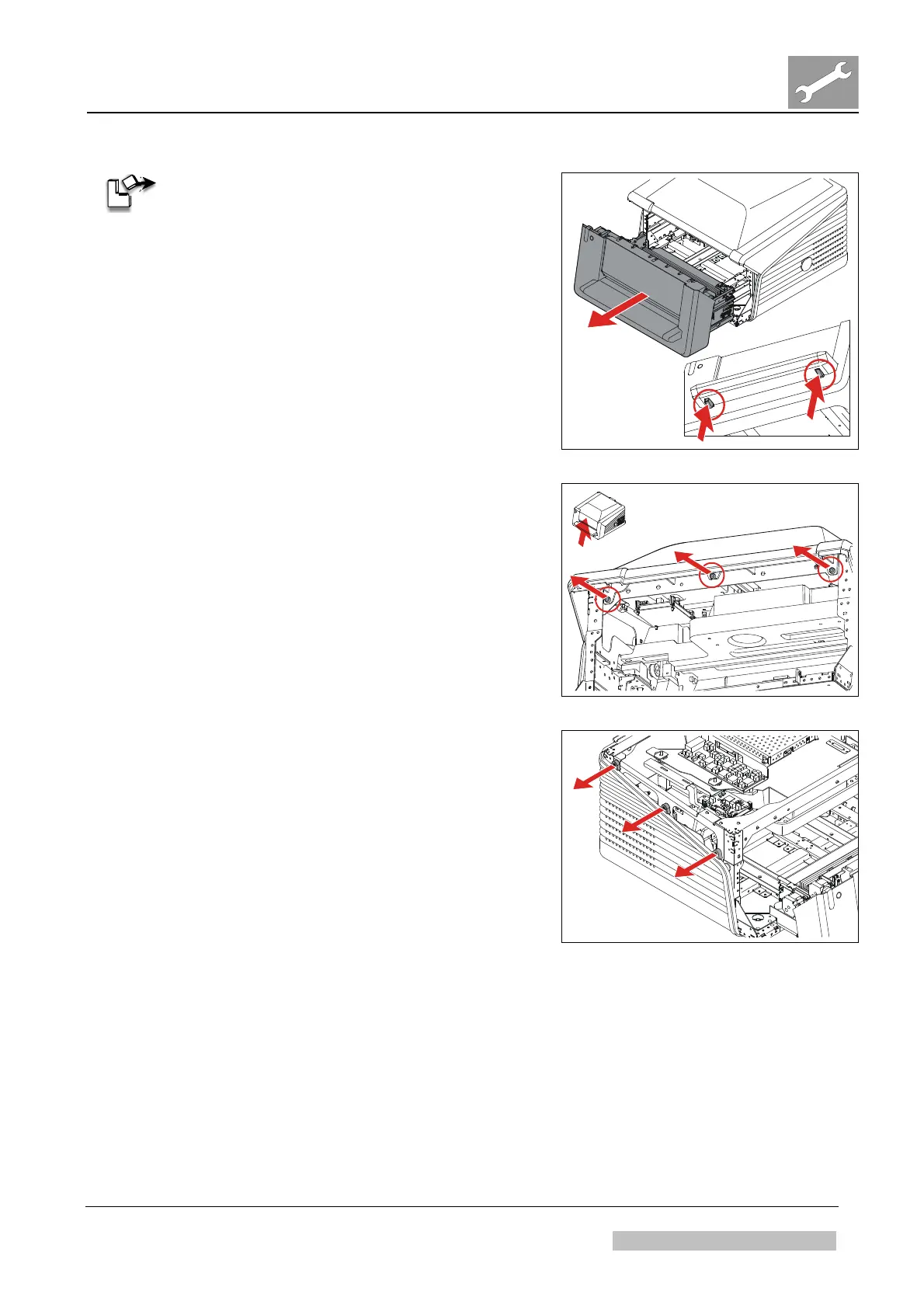

DISASSEMBLY:
(1) Switch off the digitizer.
(2) Disconnect the mains cable.
(3) Simultaneously press the two buttons (A)
positioned underneath the feed table.
(4) Pull out cassette unit (B).
A
A
B
Figure 230
(5) Remove 3 screws of the top cover.
(6) Remove top cover.
Figure 231
(7) Remove 3 screws of the left cover.
(8) Remove left cover.
Figure 232
