AGFA CR 30-X - Page 44

DD+DIS150
.06E
Controls, Connections, and Setup Procedures
DOCUMENT CONTROL NOTE:
The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.

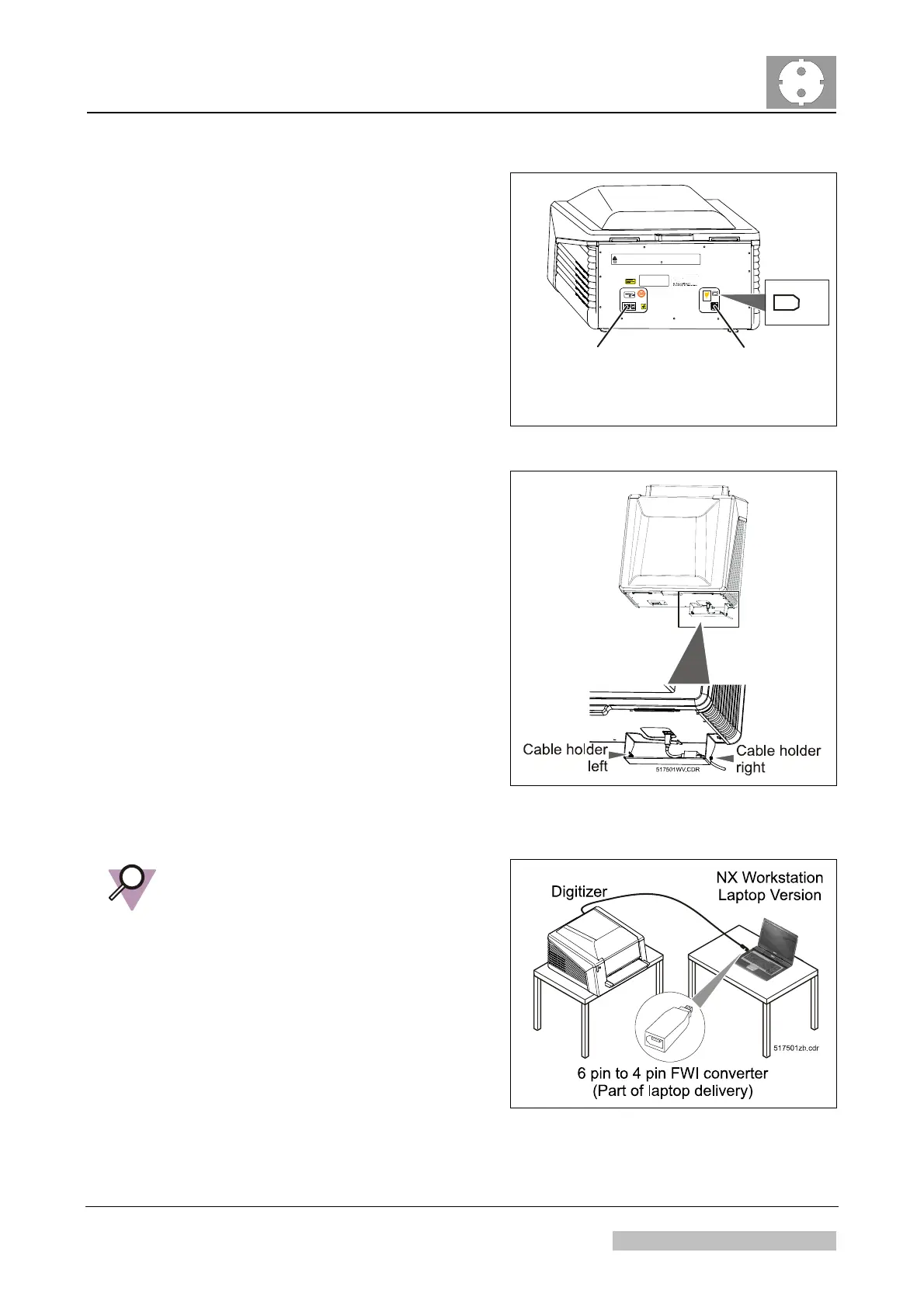

(1) Connect the power cable.
(2) Connect the FireWire cable
between digitizer and control PC.
517501za.cdr
FireWire
Connector
(IEEE1394)
100 - 240 V / 50 - 60 Hz AC
Power supply input
Manufacturer
Made in Germany
Peissenberg
MMMMM-YYYY
AGFA HEALTHCAR E N .V.
Septestraat 27 - 2640 - Mortsel - BELGIUM
MEDICAL ELECTRICAL
EQUIPMENT
WITH RESPECT TO
ELECTRIC SHOCK, FIRE,
AND MECHANICA L
HAZARDS ONLY IN
ACCORDAN CE WITH
UL60601-1 /
CAN/CSA C22.2 NO.601.1
9F03
Connector
Direction
FireWire
The manufacturer certifies that this
product conforms to all applicable
provisions of 21 CFR Subchapter J in
effect of the date of manufacture
CAUTION! Remove power plug before servicing.
Transport ma y only be un dertake n as descri bed in the o perator ma nual.
ACHTUNG! Vor Öffnen des Gerätes Netzstecker ziehen.
Vor dem Transport unbedingt Hinweise im Bedienhandbuch beachten.
ATTENTION! R etirez la prise de co urant avan t l'entret ien.
Cat appare il être tran sporté c onfrom au manual d'op eration s.
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cu ase harm ful inter ference ( 2) This d evice m ust accept any int erferenc e
received, including interference that may cause undesired operation.
This Class A digital apparatus meets all requirements of the Canadian Interference Causing Equipment
Regulations.
Cet appareil numerique de la classe A respecte toutes les exigences du Reglement sur le material
brouillant du Canada.
Type B equipment
Geräte Typ B
Appareil du type B
U
C US
L
R
Figure 5
(3) Fasten the FireWire cable at the
cable holder left or right.
Figure 6
IMPORTANT:
 For the Fire Wire cable connection to
the NX Workstation as Laptop
Version use the 6 pin to 4 pin FWI
connector which is part of delivery.
 Do not place the laptop on top of the
digitizer, because the accumulated
heat developed by the digitizer and
the laptop may affect the operation of
the system.
Figure 7
Edition 1, Revision 5 CR 30-X Chapter 1 / 10
11-2009 Type 5175 / 100/110 Agfa Company Confidential
