If you use a FLFS cassette for flatfield exposure, the image will be slightly darker in
the upper and lower image area where the backscatter protection is removed (approx.
1 cm each). These darker zones also have to be used for image quality evaluation in
slow scan and fast scan direction.

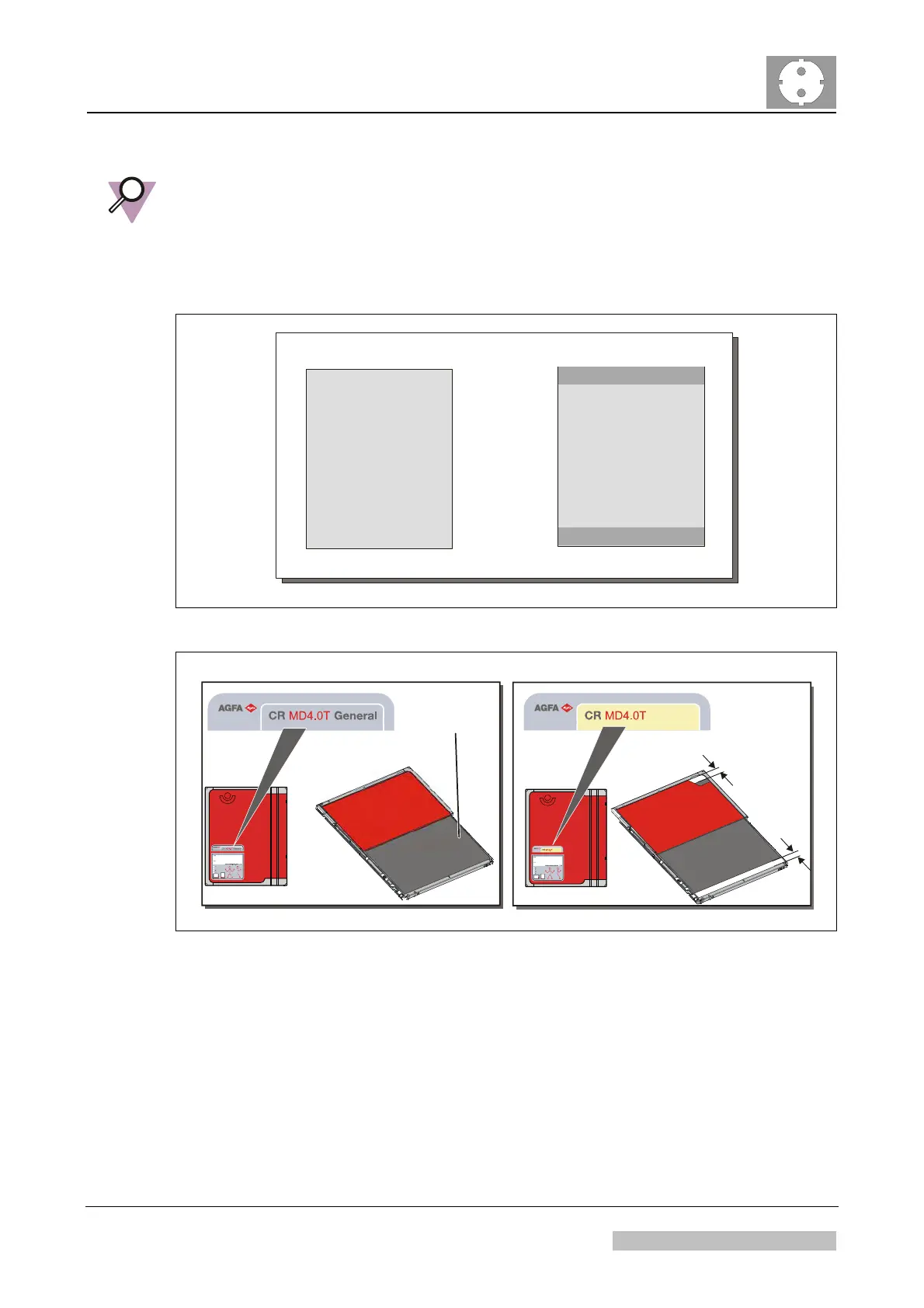

Flatfield with Genrad Cassette
Flatfield with FLFS Cassette
Effect exaggerated
Figure 22
FLFS
FLFS
10 mm
10 mm
Backscatter
Protection
Genrad Cassette FLFS Cassette
Figure 23: Main differences of Genrad and FLFS Cassettes
