Repair and Service
Safety Guidelines / GeneDD+DIS150 ral Repair Instruction
DOCUMENT CONTROL NOTE:
The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.

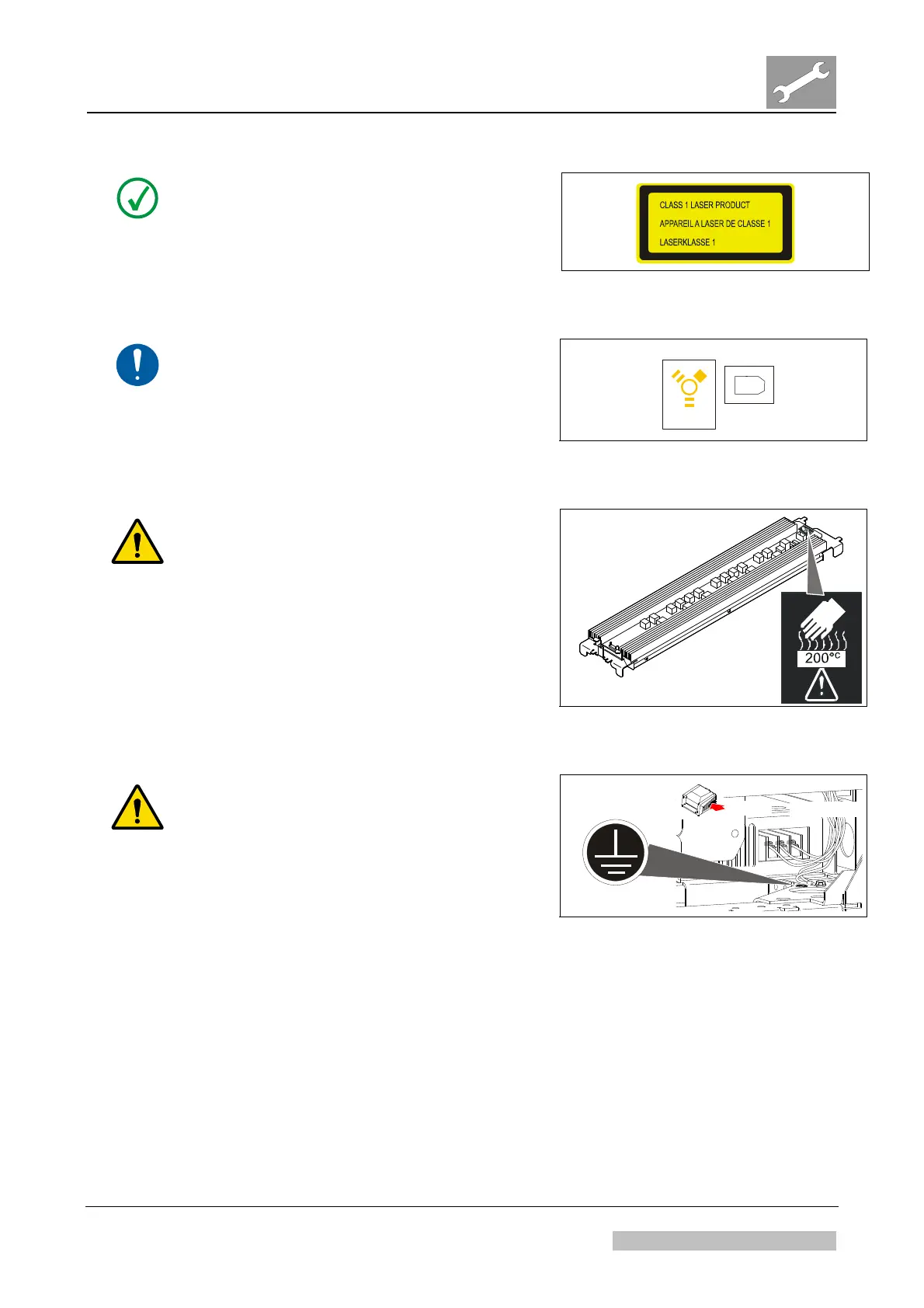

NOTE:
With covers closed the digitizer is a Class 1
laser product and not dangerous to the human
eye or skin.
Figure 6
Connector
Direction
FireWire
CAUTION:
Risk of damage of the PMI board if FireWire
connector is inserted wrong.
Insert the FireWire connector in the rear as
indicated on the sticker.
Figure 7
WARNING:
The erasure unit is hot - up to 200 °C: Risk
of burns.
Avoid contact with the Erasure Unit.
Observe the relevant sticker on the Erasure
Unit.
Figure 8
WARNING:
Improper ground connections inside the
device may lead to electric shocks.
Make sure, that the grounding connection to
the digitizer frame is present.
Figure 9
