Chapter 5 229

Replaceable Parts

Replaceable Parts List

5. Replaceable Parts

Front View (Semirigid Cables) (Opt. 2xx)

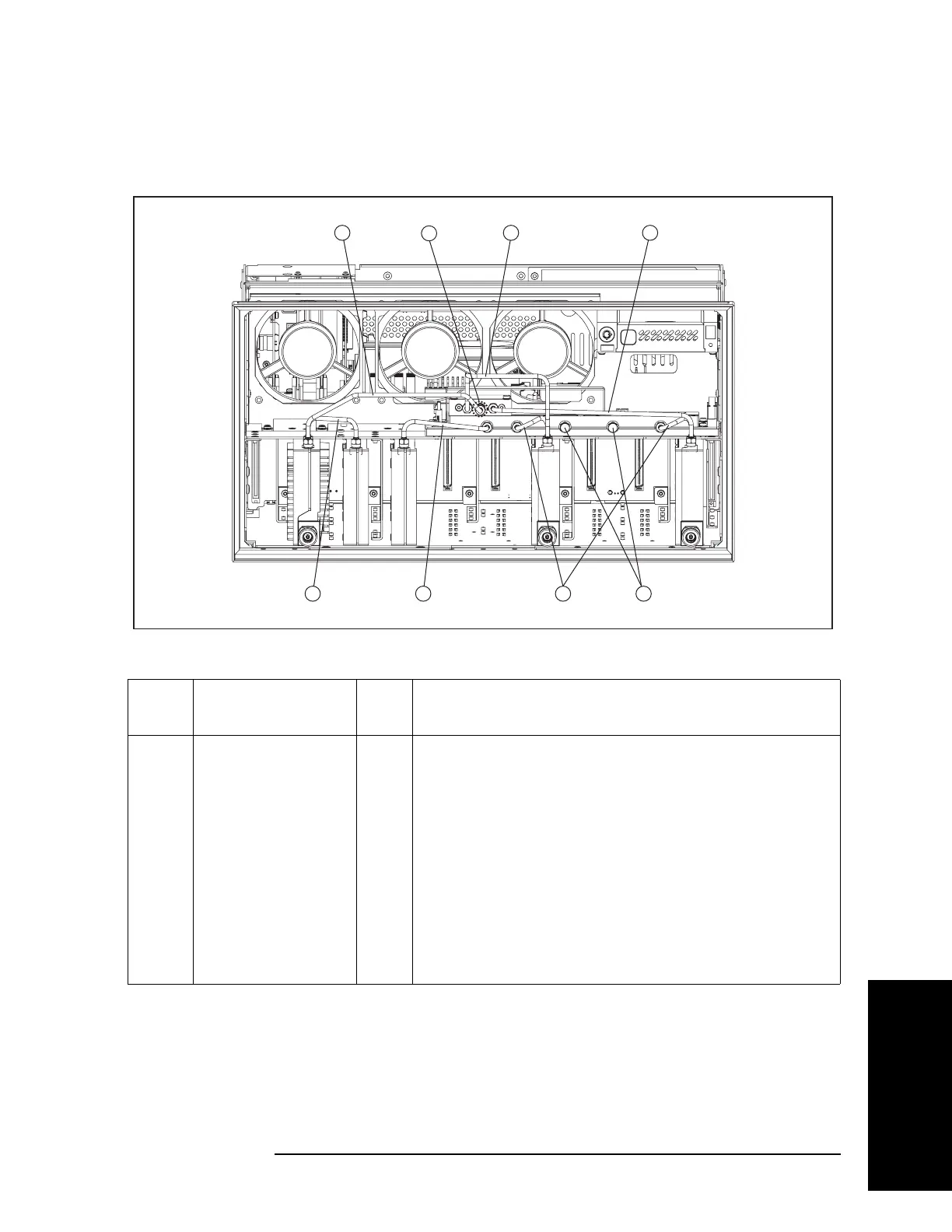

Figure 5-8 Front View (Semirigid Cables) (Opt. 2xx)

e5071cse1009

124

765

Table 5-8 Front View (Semirigid Cables) (Opt. 2xx)

Ref.

Desig.

Agilent Part Number Qty. Description

1 E5071-61641 1 RF CABLE ASSY SRGD

2 E5071-61640 1 RF CABLE ASSY SRGD

3 0955-0301 1 ATTENUATOR

4 E5071-61639 1 RF CABLE ASSY SRGD

5 E5071-61635 1 RF CABLE ASSY SRGD

6 E5071-61634 1 RF CABLE ASSY SRGD

7 E5071-61631 2 RF CABLE ASSY SRGD

8 1810-0118 2 TERMINATION
