Agilent Technologies E5071C Service Guide

182 Chapter 4
Troubleshooting
Boot Process Troubleshooting
Boot Process Troubleshooting

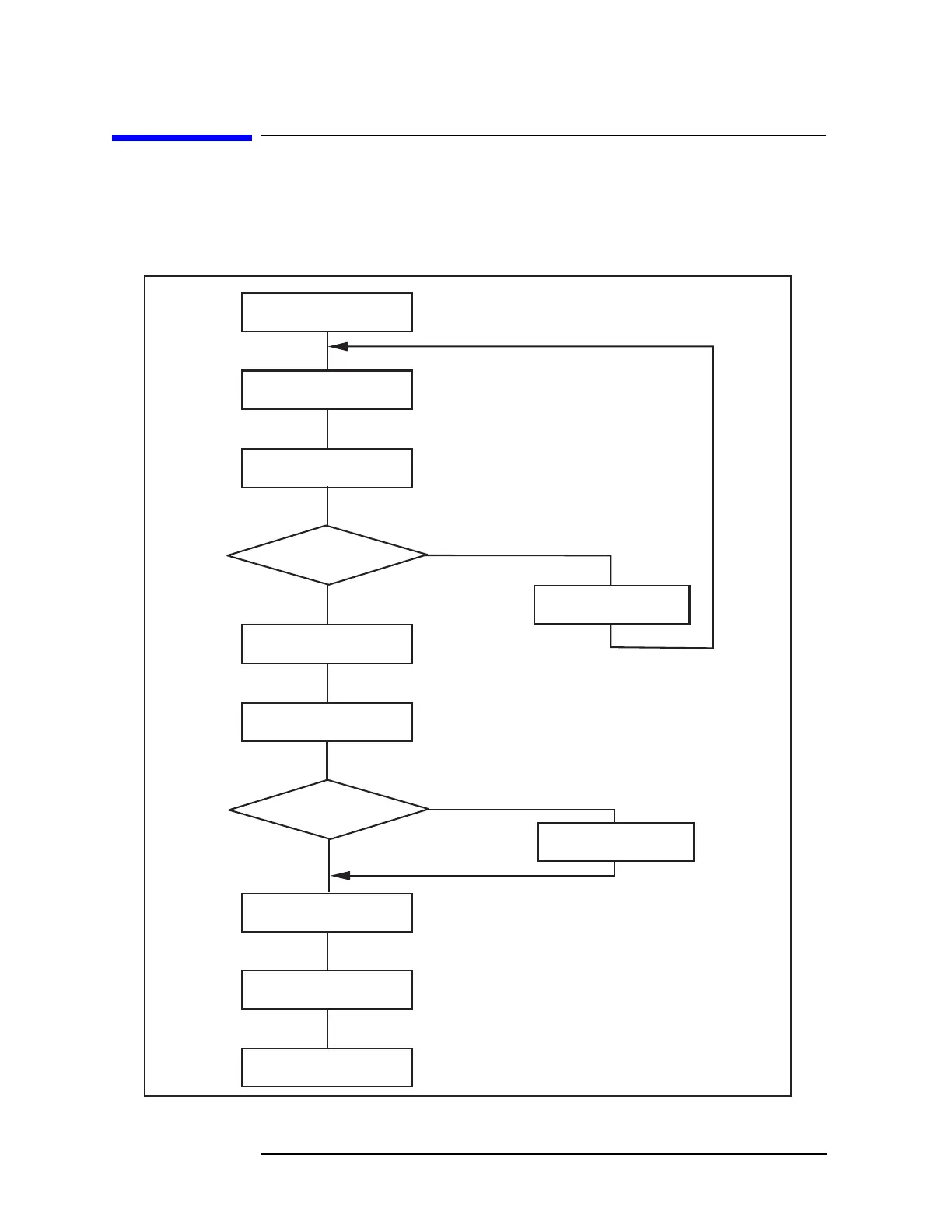

Figure 4-4 represents the booting process flow in the E5071C. If the E5071C stops in the
booting process, troubleshoot using the following step-by-step procedure.
Figure 4-4 Booting process flowchart
e50071cse1120
Windows Boot Screens
Revision and Option
Information Display
Measurement View
Power On
VIDEO BIOS Title Screen
Splash Screen
F2 Key Pressed?
BIOS Setup Menu
No
Yes
Searching for Boot
Record
Power On Self Test
1
2
5
4
3
6
7
Did it Shutdown Properly
Last Time?
Scan Disk Check
Yes
No
