230 Chapter 5

Replaceable Parts

Replaceable Parts List

Front View (Semirigid Cables) (Opt. 4xx)

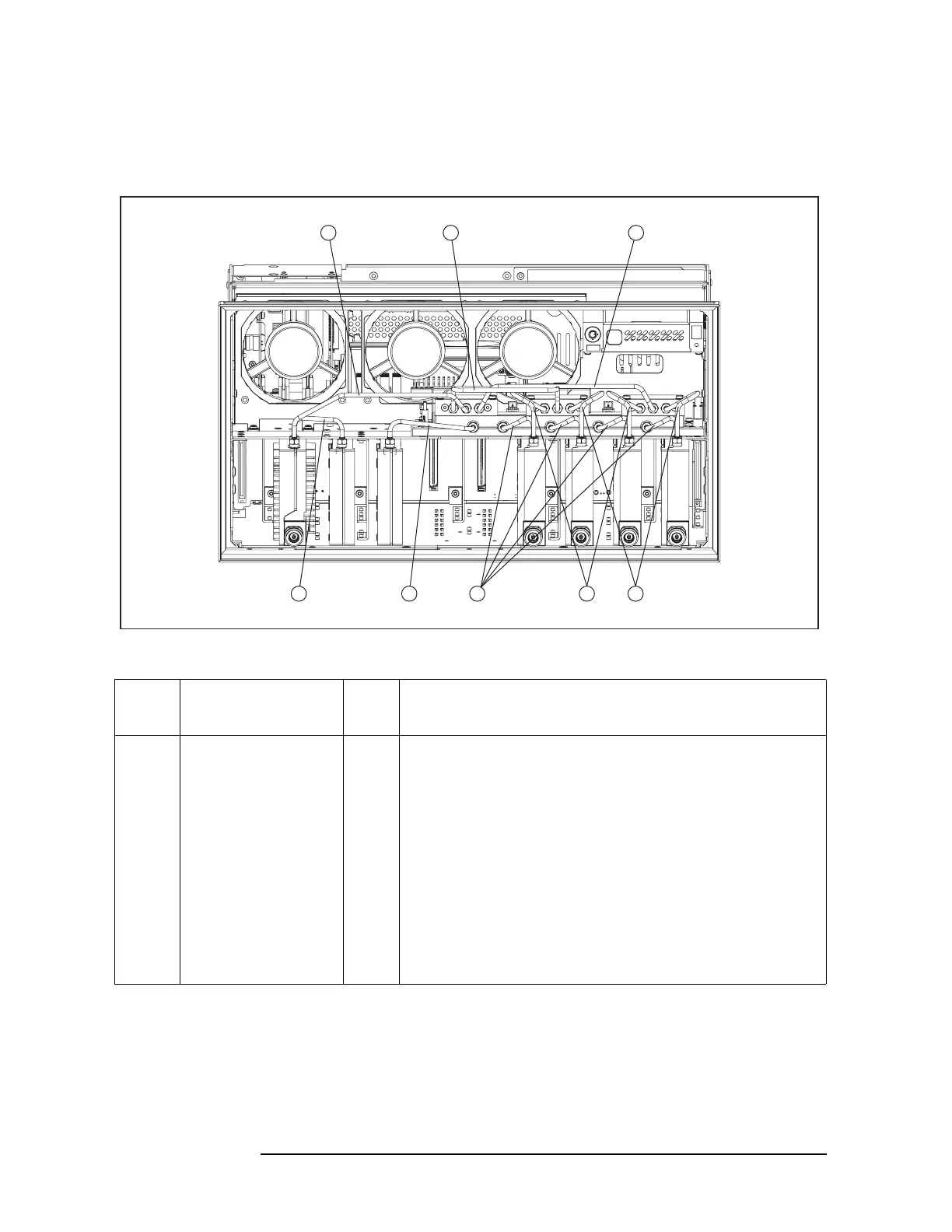

Figure 5-9 Front View (Semirigid Cables) (Opt. 4xx)

e5071cse1011

123

65 7 84

Table 5-9 Front View (Semirigid Cables) (Opt. 4xx)

Ref.

Desig.

Agilent Part Number Qty. Description

1 E5071-61638 1 RF CABLE ASSY SRGD

2 E5071-61637 1 RF CABLE ASSY SRGD

3 E5071-61636 1 RF CABLE ASSY SRGD

4 E5071-61635 1 RF CABLE ASSY SRGD

5 E5071-61634 1 RF CABLE ASSY SRGD

6 E5071-61631 4 RF CABLE ASSY SRGD

7 E5071-61632 2 RF CABLE ASSY SRGD

8 E5071-61633 2 RF CABLE ASSY SRGD
