Agilent Technologies E5071C Service Guide

Chapter 6 309
Replacement Procedure
Fan Replacement
6. Replacement Procedure

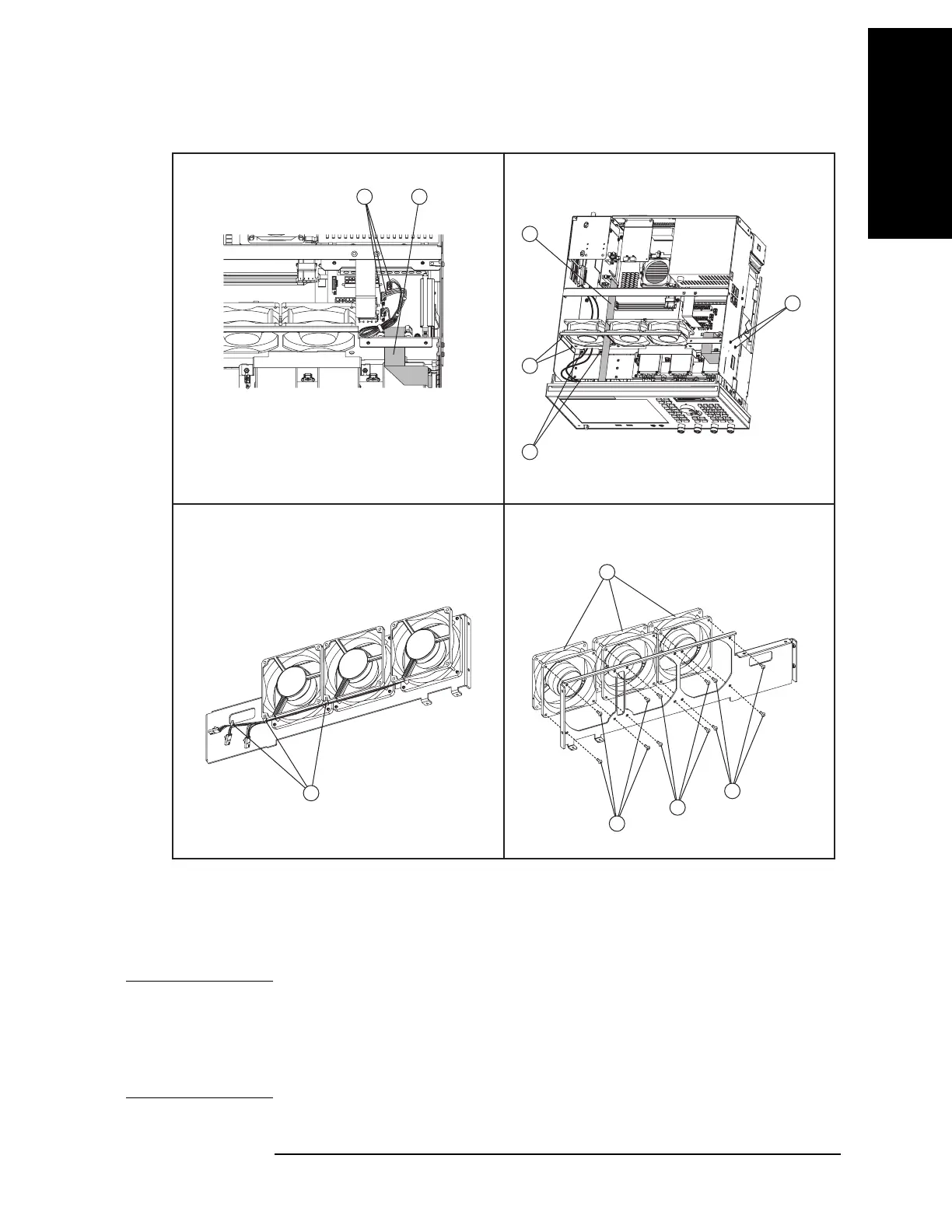

Figure 6-24 Fan Removal
e5071cse1107
1 2
4
5
4
7
6
6
6
4
3
Replacement Procedure
Step 1. Replace the fan by inverse procedure of removal.
NOTE Connecting the cables (item 1) as described below.
• Connect the short cable to “J5” connector.
• Connect the middle cable to “J6” connector.
• Connect the long cable to “J7” connector.
