Chapter 5 249
Replaceable Parts
Replaceable Parts List
5. Replaceable Parts
Analog Motherboard Assembly

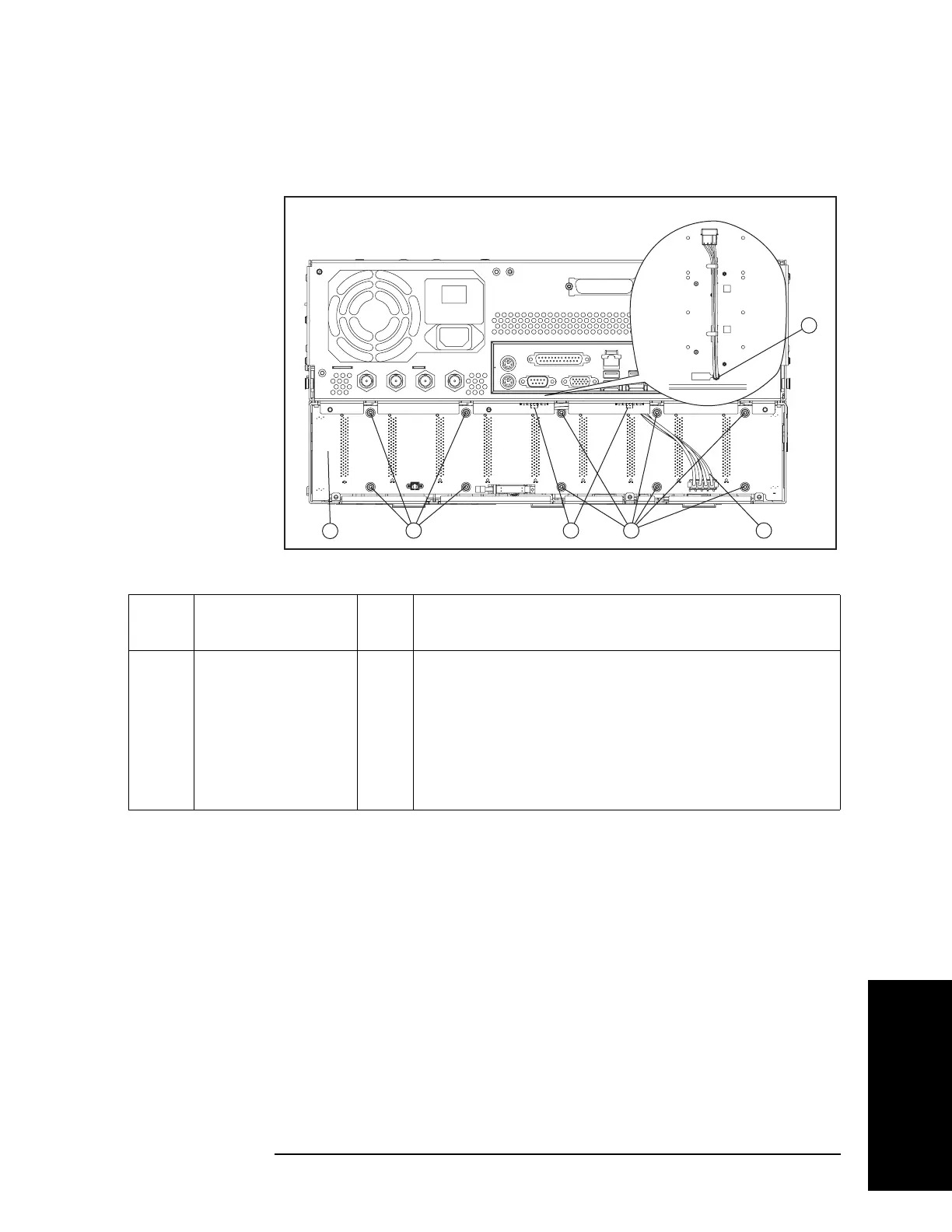

Figure 5-25 Analog Motherboard Assembly
e5071cse1085
4232
1
5
Table 5-25 Analog Motherboard Assembly
Ref.
Desig.
Agilent Part Number Qty. Description
1 E5070-66550 1 ANALOG MOTHER BOARD
2
0515-0430
10 SCREW-MACH M3.0 x 6 PN T10
3
1400-1334
2 CLAMP CABLE
4 E5071-61613 1 WIRE ASSY
5 0340-1259 1 GROMMET
