Chapter 5 235
Replaceable Parts
Replaceable Parts List
5. Replaceable Parts
Cover Assembly

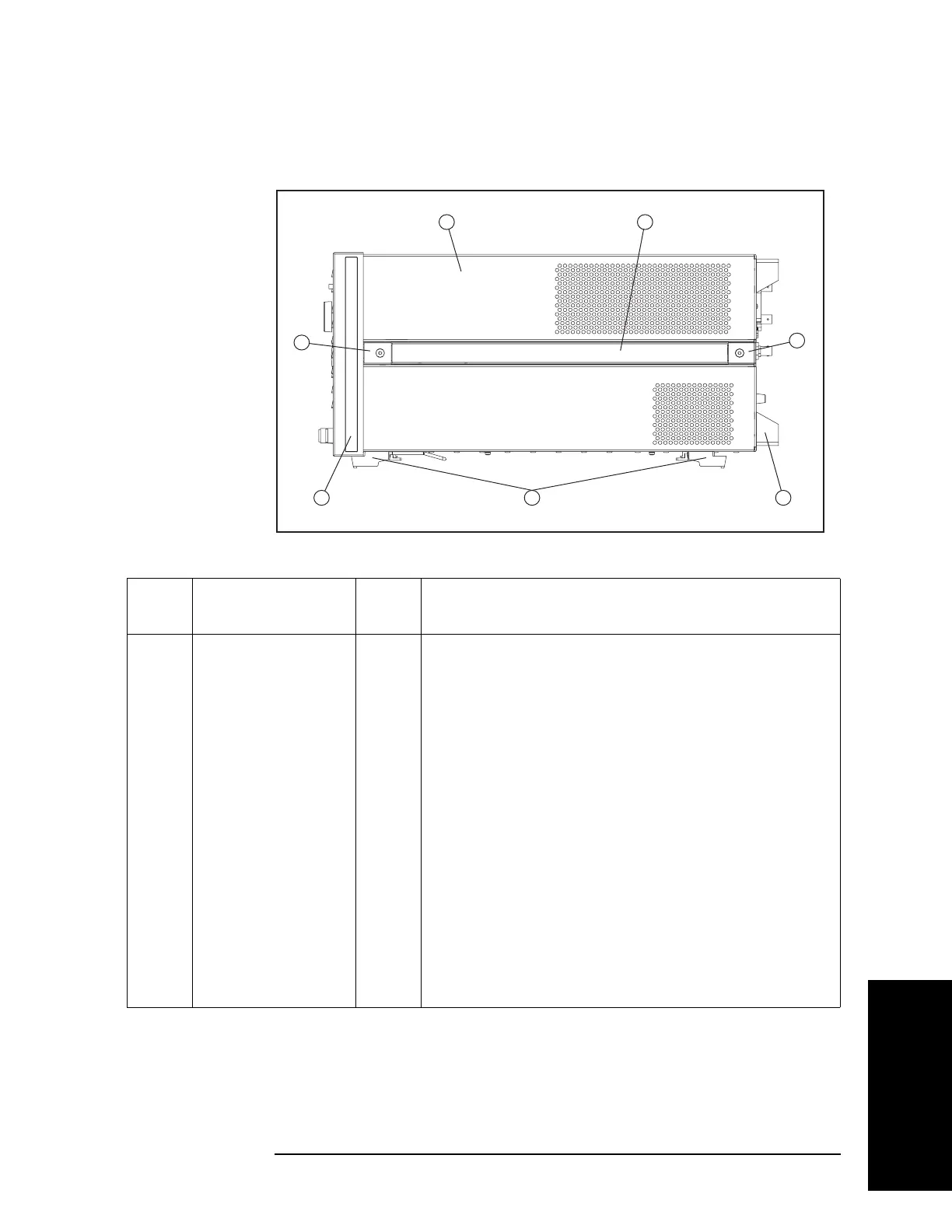

Figure 5-13 Cover Assembly
e5071cse1014
2
3 54
1 7
6
Table 5-13 Cover Assembly
Ref.
Desig.
Agilent Part Number Qty. Description
1 E5071-04002 1 COVER ASSY
2 5041-9186 2 STRAP HANDLE FRT
0515-2049 2 SCREW-MACH M5.0 x L16 FL T20
3 5041-9173 2 SIDE TRIM 221.5
4 5041-9167 4 FOOT FL
1460-1345 2 WIREFORM
5021-2840 4 KEY LOCK
5 E5100-40002 4 STANDOFF
0515-1402 4 SCREW-MACH M3.5 x L8 PN T15
6 5041-9187 2 STRAP HANDLE REAR
0515-2049 2 SCREW-MACH M5.0 x L16 FL T20
7 08720-00081 2 STRAP HANDLE
