Replaceable Parts
Replaceable Parts List
5. Replaceable Parts
Rear View (1)

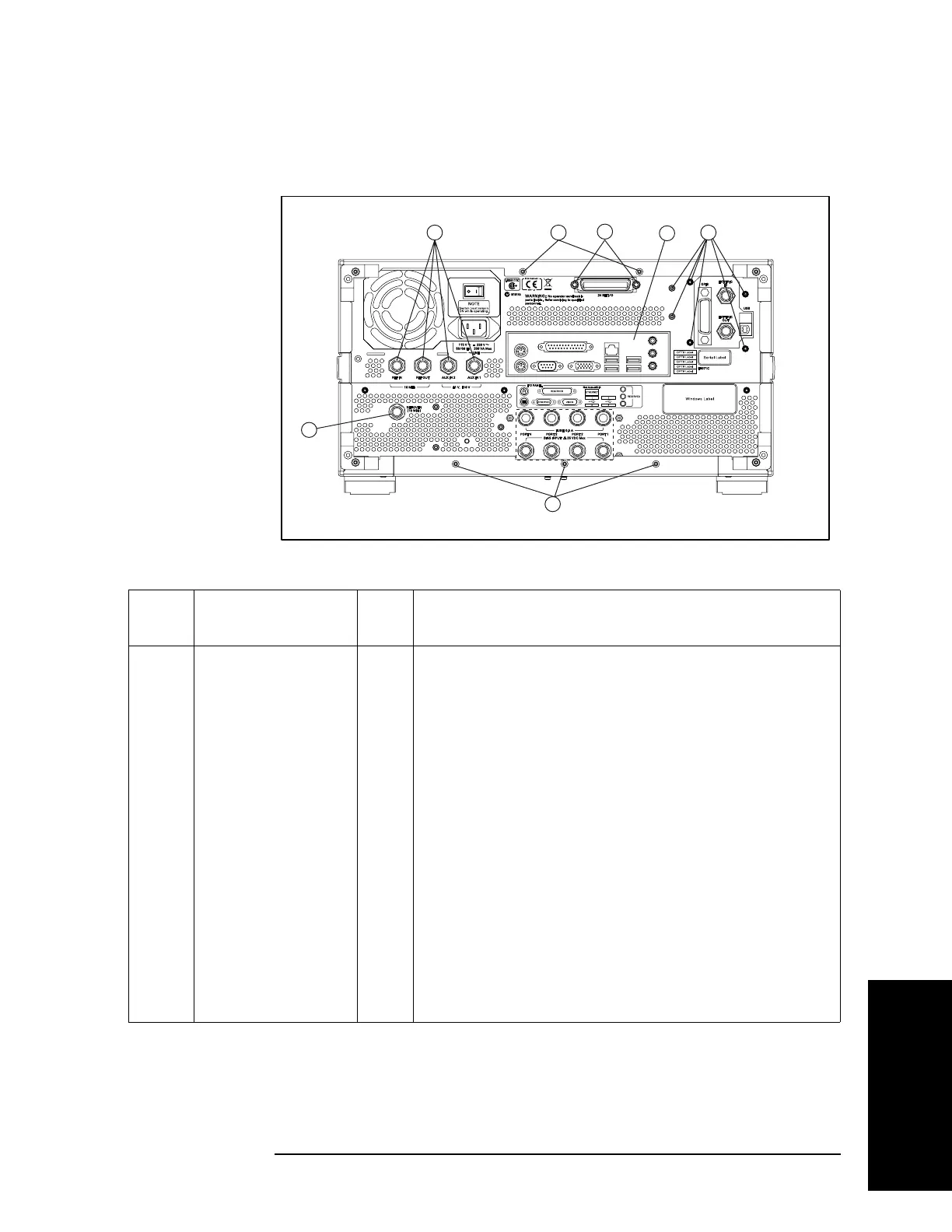

Figure 5-11 Rear View (1)
e5071cse1013
74
3
2
1
6
5
Table 5-11 Rear View (1)
Ref.
Desig.
Agilent Part Number Qty. Description
1
0515-0372
6 SCREW-MACH M3.0 x L8 PN T10
2
8160-1677
1 I/O SHIELD
3 0515-0372 2 SCREW-MACH M3.0 x L8 PN T10
4 2950-0054 4 NUT
2190-0054 4 WASHER-LK INTL T
5 1250-0252 1 BNC CONNECTOR (Opt. 1E5)
2950-0035 1 NUT-HEX-DBL-CHAM (Opt. 1E5)
2190-0102 1 WSHR-LK INTL T (Opt. 1E5)
E5071-00610 1 SPACER (Opt. 1E5)
6960-0041 1 PLUG HOLE (Opt. UNQ)
6 0515-1402 3 SCREW-MACH M3.5 x L8 PN T15
7 0515-1402 2 SCREW-MACH M3.5 x L8 PN T15
