Chapter 6 293

Replacement Procedure

Digital Motherboard Replacement

6. Replacement Procedure

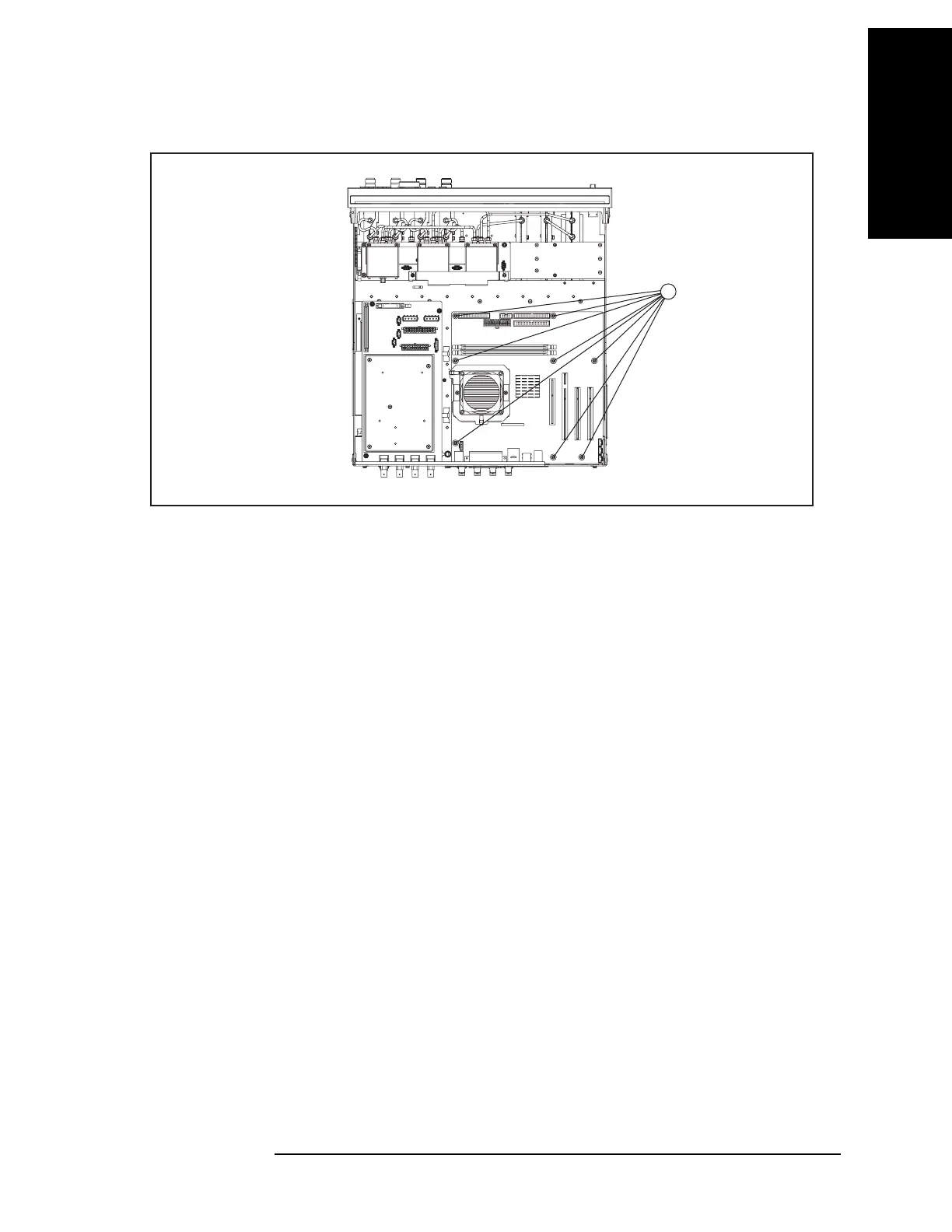

Figure 6-16 Digital Motherboard Removal

e5071cse1124

Replacement Procedure

Step 1. Replace the digital motherboard by inverse procedure of removal.
