Agilent Technologies E5071C Service Guide

278 Chapter 6
Replacement Procedure
Hard Disk Assembly Removal Option 019
Hard Disk Assembly Removal Option 019
Tools Required
• TORX screwdriver, T10, T15, and T20
• Flat edge screwdriver
Removal Procedure
Refer to Figure 6-8 for this procedure.
Step 1. Remove the outer cover as described in “Outer Cover Removal” on page 266.
Step 2. Remove the front panel as described in “Front Panel Removal” on page 267.
Step 3. Disconnect the two cables (item 1).
Step 4. Remove the four TORX T10 screws (item 2) fastening the hard disk assembly.
Step 5. Lift the hard disk assemby (item 3).
Step 6. Remove the two TORX T10 screws (item 4) fastening the bracket.
Step 7. Remove a TORX T10 screw (item 5) fastening the bracket.
Step 8. Be careful to release the hook from chassis (item 6) and lift the bracket (item 7).

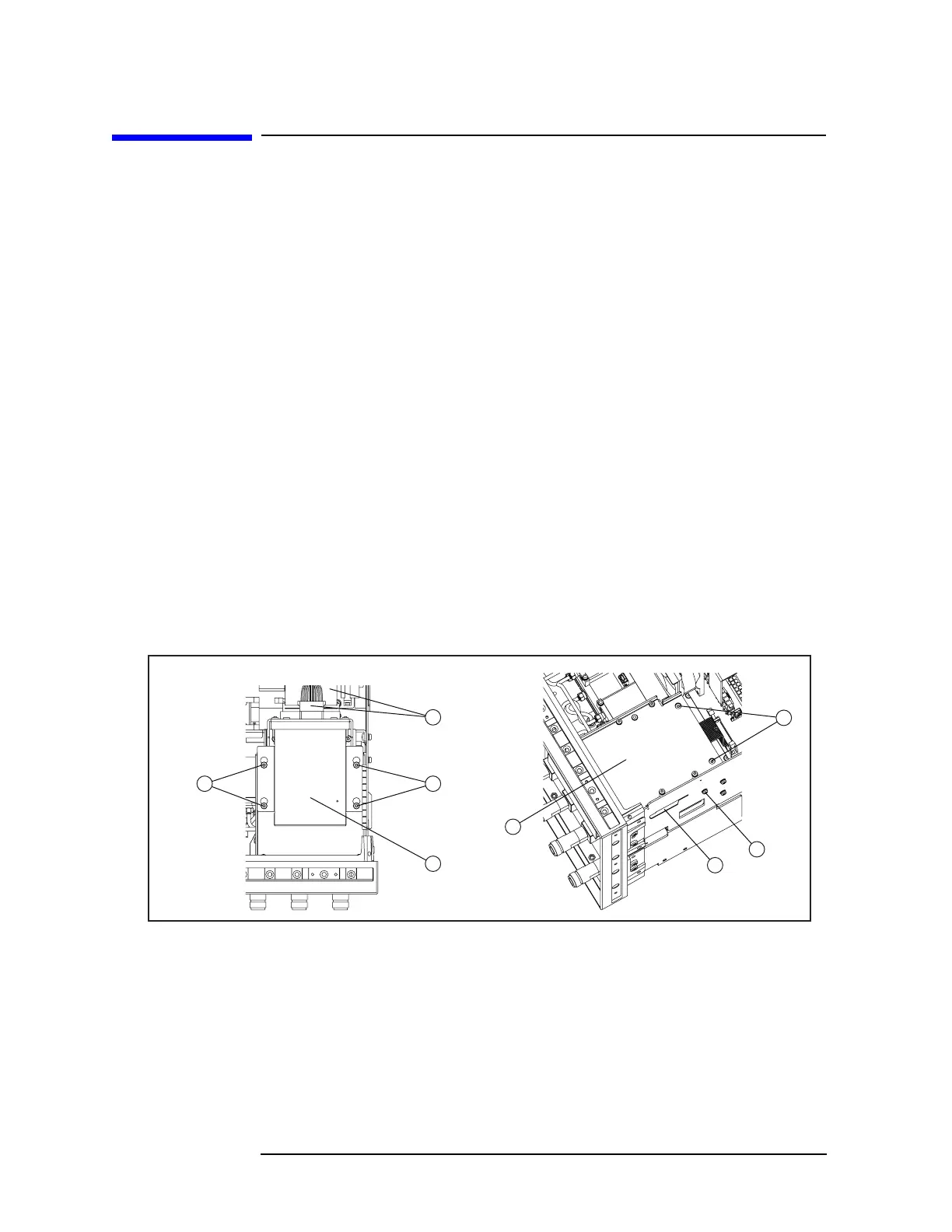

Figure 6-8 Removable Hard Disk Assembly Replacement Opton 019
e5071cse3005
1
2
2
3
4
5
6
7
