256 Chapter 5
Replaceable Parts
Replaceable Parts List
Cover Assembly (1)

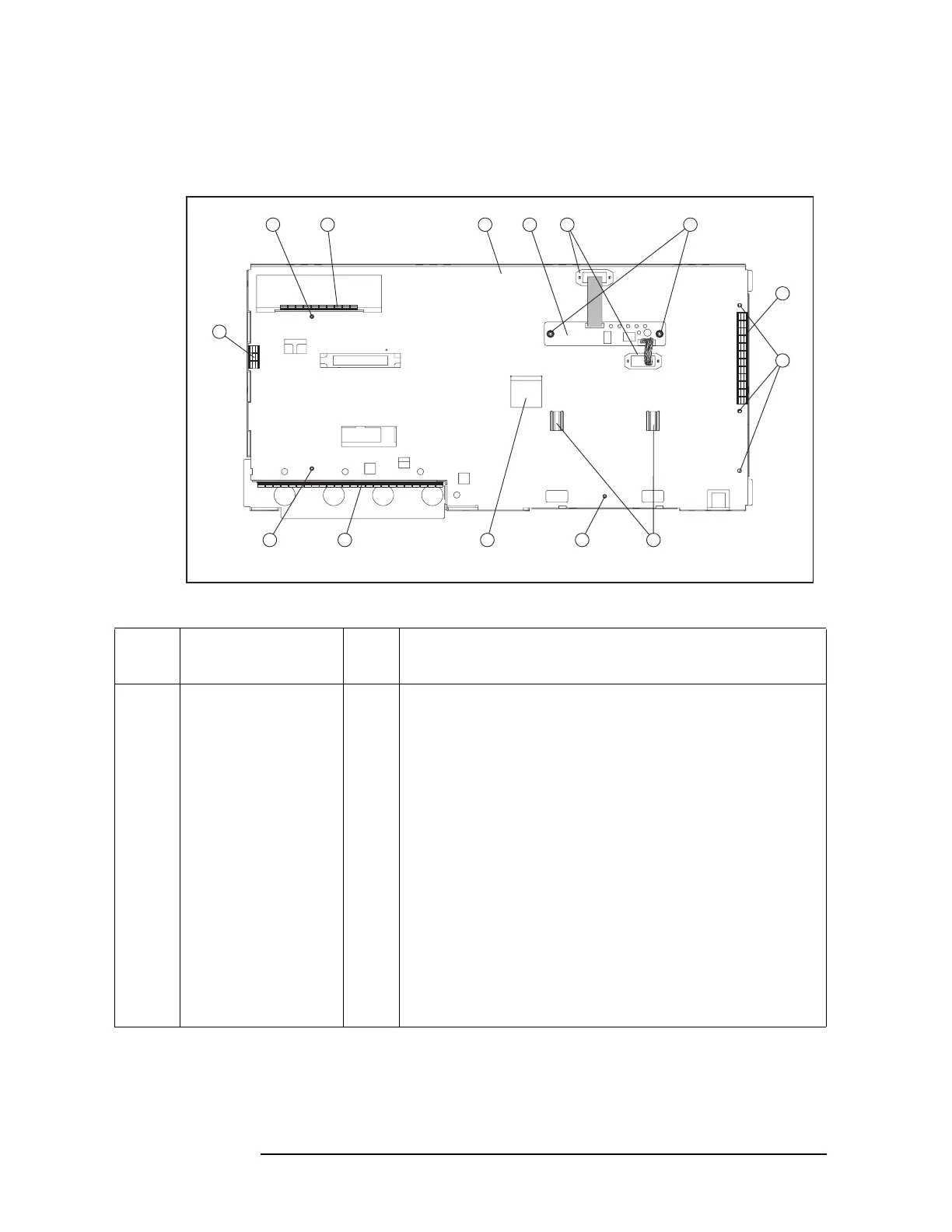

Figure 5-31 Cover Assembly
e5071cse1028
45
7
66 8 9
10
6 123
6
11
Table 5-31 Cover Assembly
Ref.
Desig.
Agilent Part Number Qty. Description
1 0515-0430 2 SCREW-MACH M3.0 x L6 PN T10
2 1400-3156 2 CLAMP-CABLE NYLON 6/6
3 5183-4184 1 CNTR TOUCH PANEL
4 E5071-00621 1 COVER
5 0363-0170 1 GASKET 10-UNITS
6 0515-0430 6 SCREW-MACH M3.0 x L6 PN T10
7 0363-0170 1 GASKET 3-UNITS
8 0363-0170 1 GASKET 24-UNITS
9 1400-0611 1 CLAMP CABLE
10 1400-3337 2 CLAMP CABLE
11 0363-0170 1 GASKET 12-UNITS
