Agilent Technologies E5071C Service Guide

Chapter 6 305
Replacement Procedure
RF Switch and Distributor Module Replacement for 2-Port model
6. Replacement Procedure

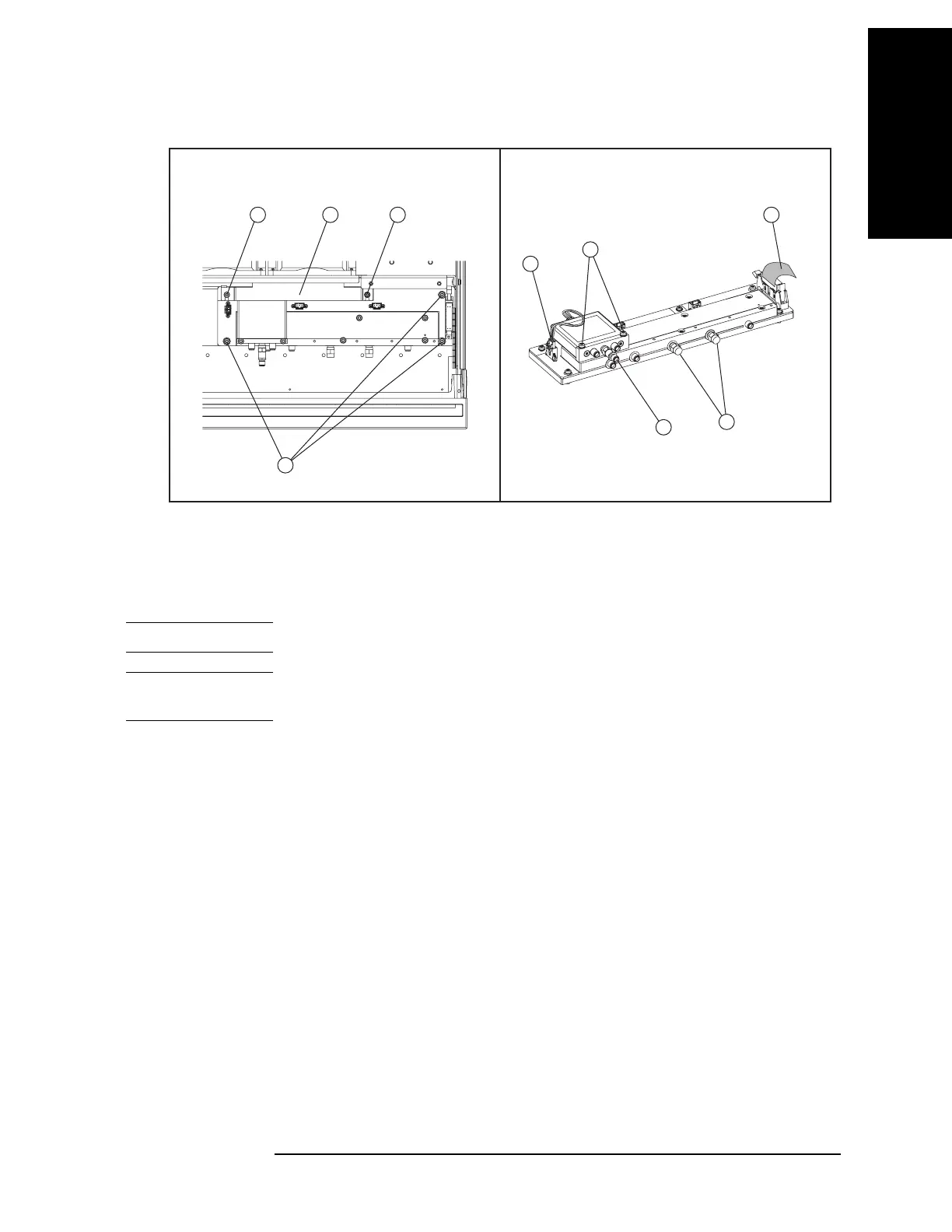

Figure 6-22 RF Switch and Distributor Module Replacement for 2-port model
e5071cse1165
342
5
1
6
8
9
7
Replacement Procedure
Step 1. Replace the switch and distributor module by inverse procedure of removal.
NOTE Be careful screw (item 2) and screw (item 3) are different.
NOTE Fasten the semi rigid cables, attenuator and terminations using a torque wrench or torque
driver set for replacement.
