Replacement Procedure
10 MHz Oven Board (Opt. 1E5) Replacement
6. Replacement Procedure
10 MHz Oven Board (Opt. 1E5) Replacement
Tools Required
• TORX screwdriver, T10, T15, and T20
Removal Procedure
Refer to Figure 6-14 for this procedure.
Step 1. Remove the outer cover as described in “Outer Cover Removal” on page 266.
Step 2. Remove the six TORX T10 screws (item 1) fastening the rear cover.
Step 3. Release the clamped cables from the clamps (item 2) on the rear cover.
Step 4. Disconnect the cables (item 3, 4) from the oven.
Step 5. Remove the three TORX T10 screws (item 5) fastening the oven.

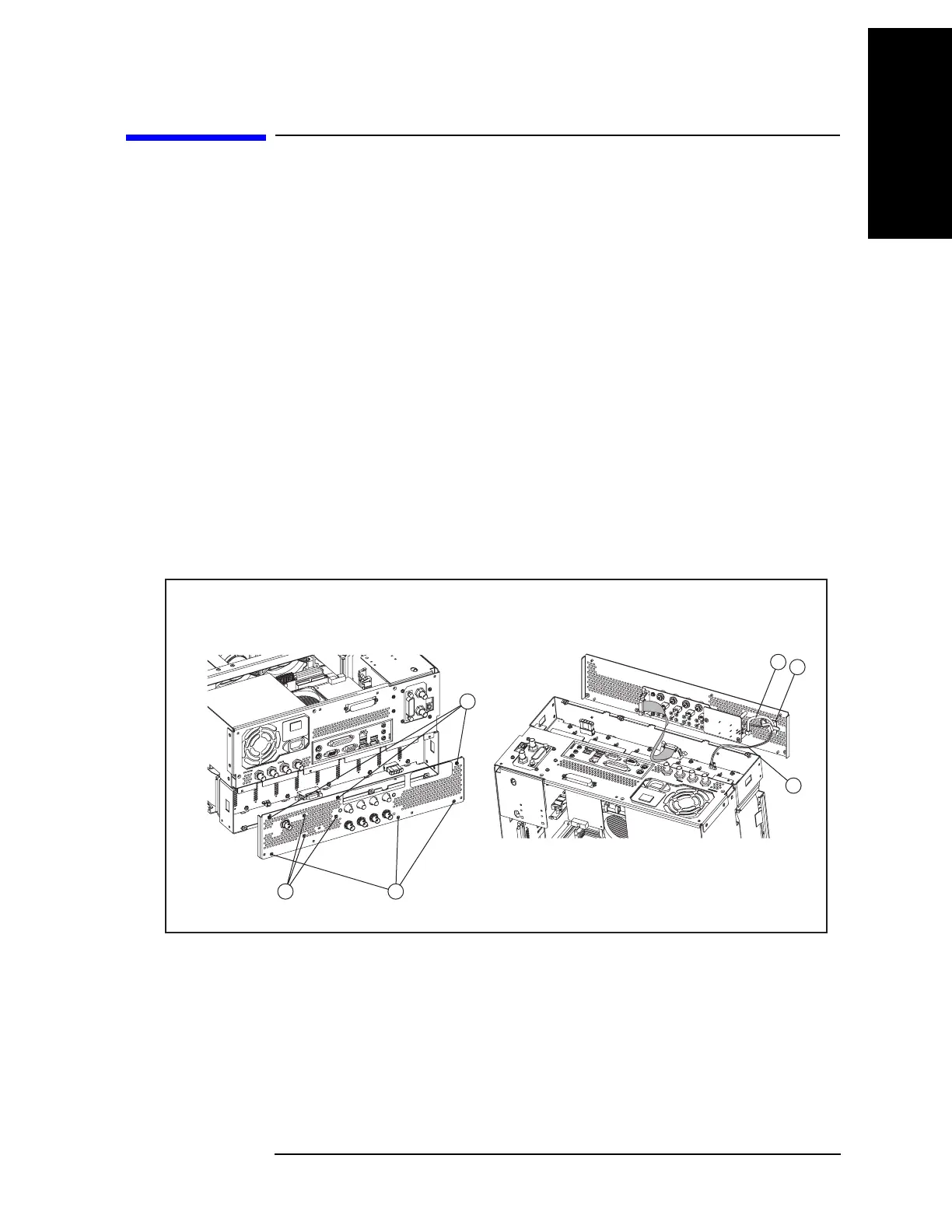

Figure 6-26 10 MHz Oven Board Removal
e5071cse1109
15
1
2
4
3
Replacement Procedure
Step 1. Replace the 10 MHz oven board by inverse procedure of removal.
