Agilent Technologies E5071C Service Guide

Chapter 5 245
Replaceable Parts
Replaceable Parts List
5. Replaceable Parts
T2 Switch Assembly

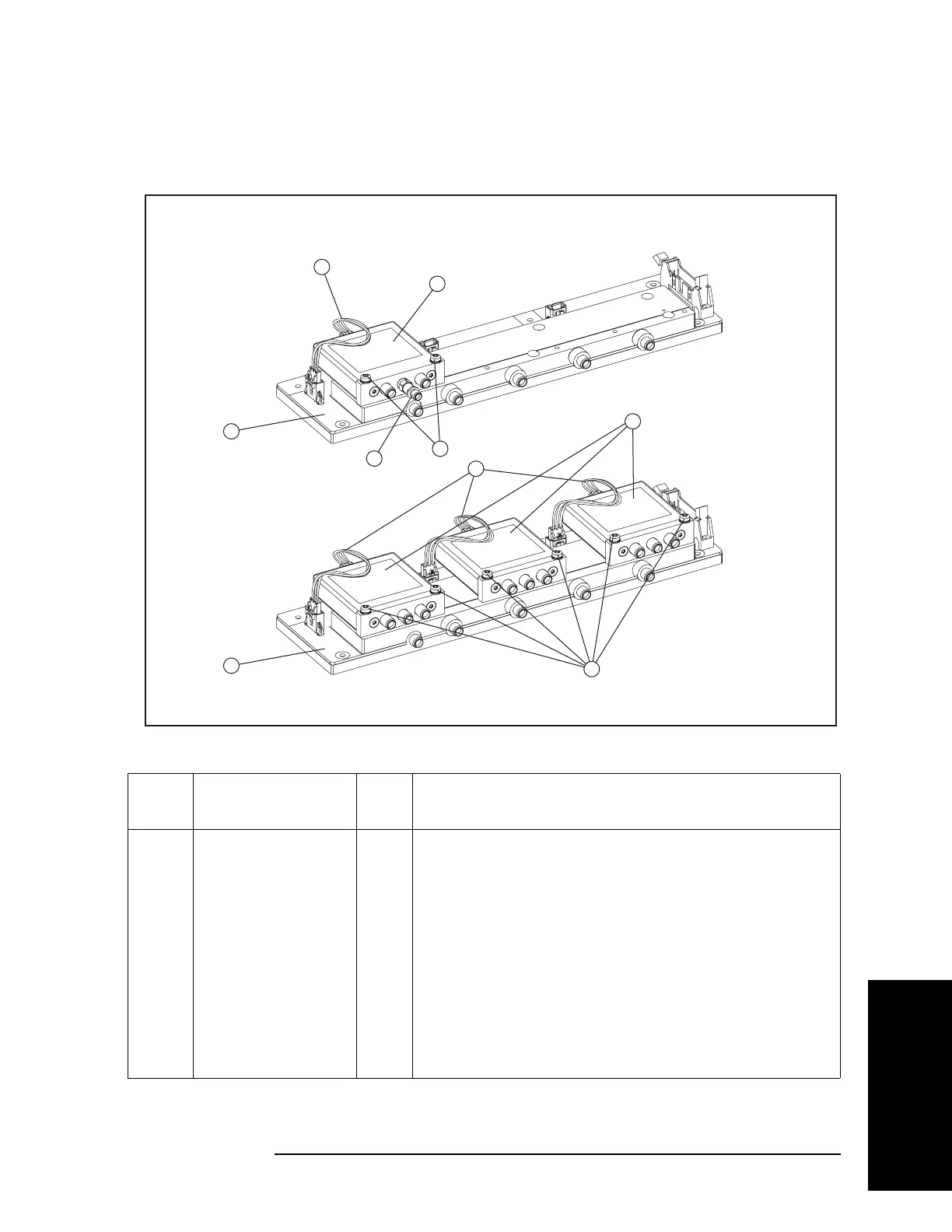

Figure 5-21 T2 Switch Assembly
e5071cse1086
1
1
2
2
3
3
5
4
4
2-port Option
4-port Option
Table 5-21 T2 Switch Assembly
Ref.
Desig.
Agilent Part Number Qty. Description
1 E5071-61084 1 DISTRIBUTOR MODULE
2 E5071-61619 1 WIRE ASSY (Opt.2xx)
3 WIRE ASSY (Opt.4xx)
3 5087-7272 1 SWITCH RF SPDT (Opt.2xx)
3 SWITCH RF SPDT (Opt.4xx)
4 0515-1410 2 SCREW-MACH M3.0 x L20 PN T10 (Opt.2xx)
6 SCREW-MACH M3.0 x L20 PN T10 (Opt.4xx)
5 0955-0301 1 ATTENUATOR (Opt.2xx)
