Chapter 6 295
Replacement Procedure
Analog Base Module Replacement
6. Replacement Procedure

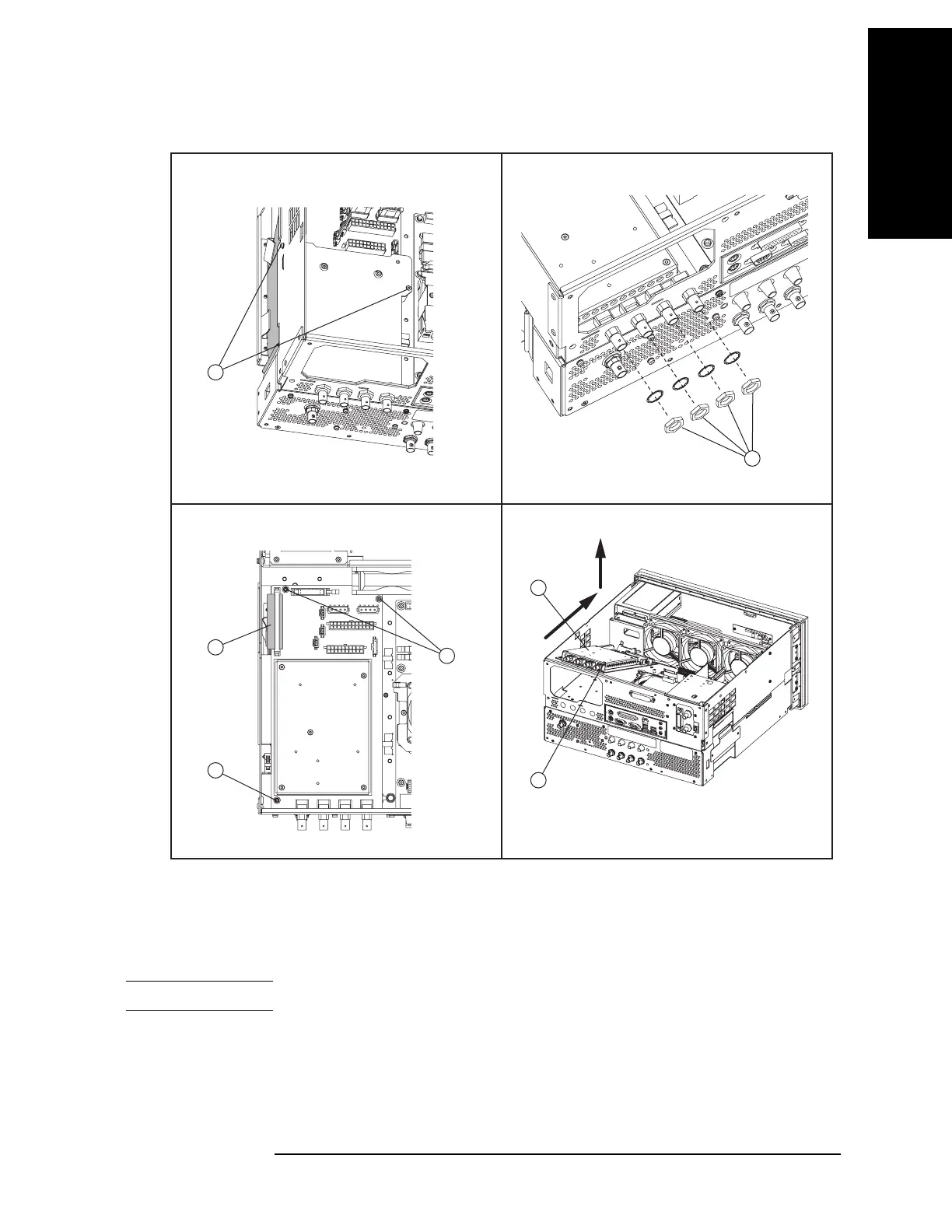

Figure 6-17 Analog Base Module Removal
e5071cse1123
5
6
3
1
4
3
2
Replacement Procedure
Step 1. Replace the analog base module by inverse procedure of removal.
NOTE Fasten the 5/8 inch nuts (item 2) using an open-end torque wrench.
