246 Chapter 5

Replaceable Parts

Replaceable Parts List

Fan Assembly

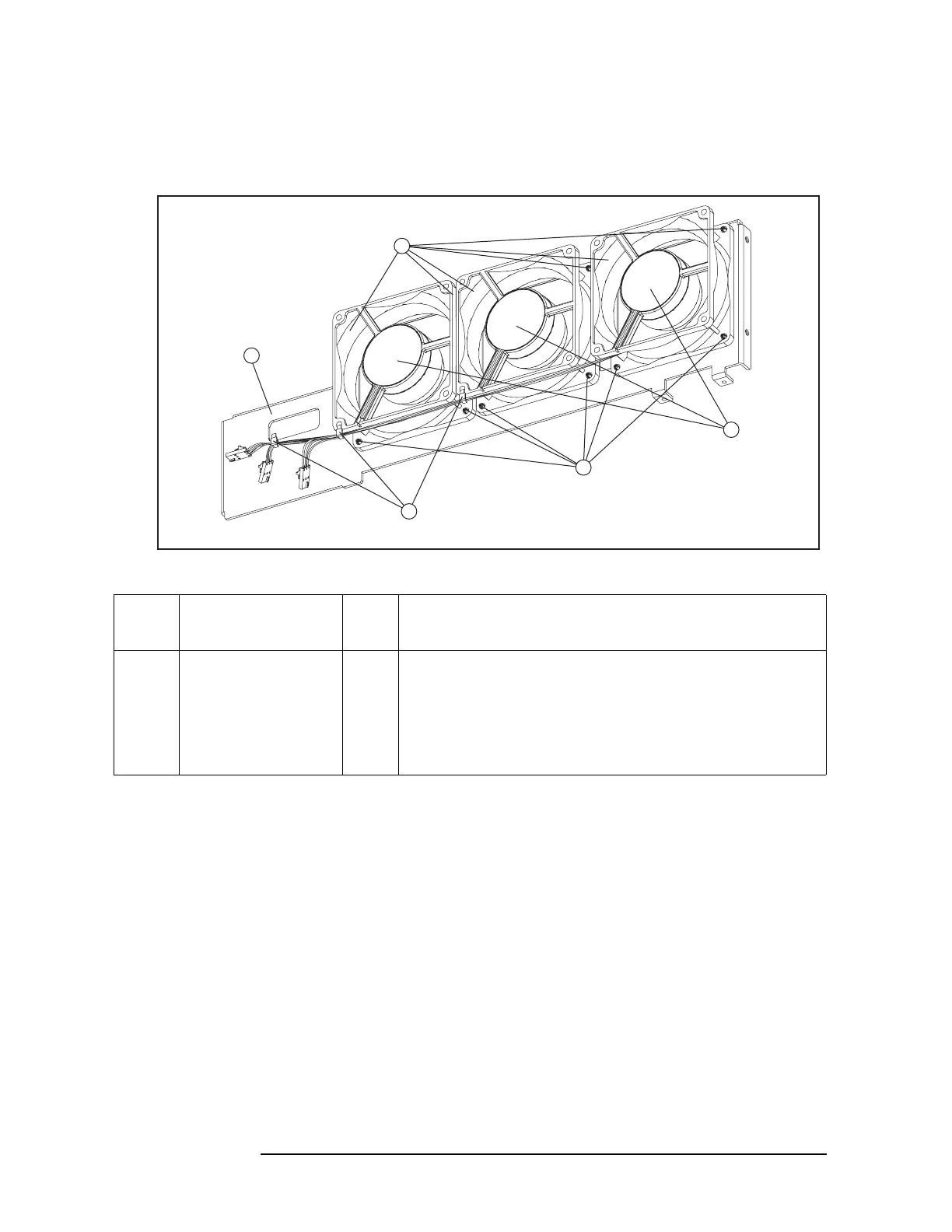

Figure 5-22 Fan Assembly

e5071cse1089

Table 5-22 Fan Assembly

Ref.

Desig.

Agilent Part Number Qty. Description

1 E5071-01200 1 BRACKET FAN

2 0361-1885 12 RIVET PLASTIC

3 E5071-61618 3 FAN ASSY

4 1400-0249 3 CABLE TIE
