Agilent Technologies E5071C Service Guide

Chapter 5 253
Replaceable Parts
Replaceable Parts List
5. Replaceable Parts
LCD Assembly

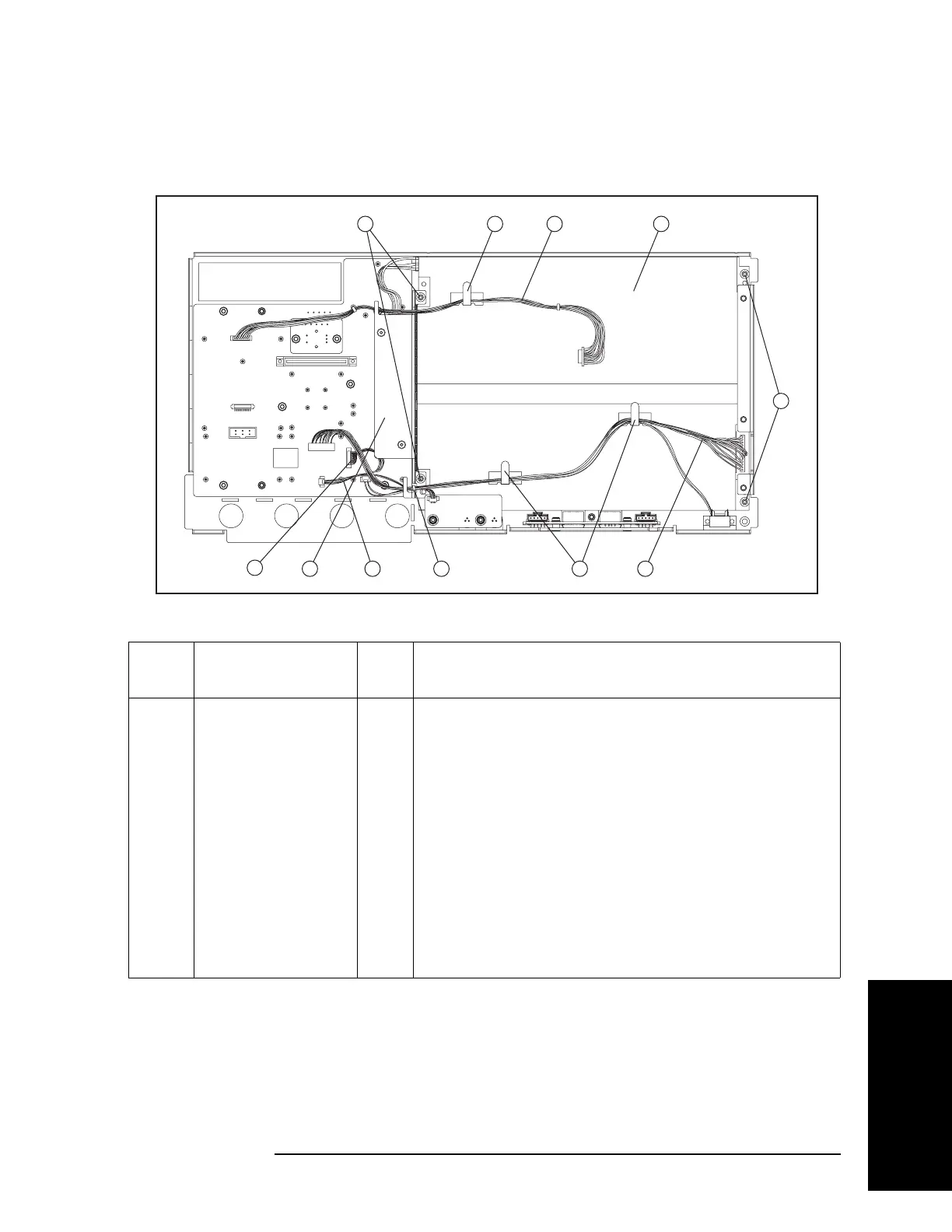

Figure 5-28 LCD Assembly
e5071cse1026
4
1
321
65 7 2 8
9
Table 5-28 LCD Assembly
Ref.
Desig.
Agilent Part Number Qty. Description
1 0515-1402 4 SCREW-MACH M3.5 x L8 PN T15
2 1400-1391 3 CLANP CABLE
3 E5070-61628 1 WIRE ASSY
4 E5070-60112 1 LCD-TPANEL ASSY
5 See Table 5-29 1 INVERTER ASSY
6 E5071-61611 1 WIRE ASSY
7 1400-0249 1 CABLE TIE
8 E5071-61616 1 FLAT CBL ASSY
9 E5071-61608 1 WIRE ASSY
