Agilent Technologies E5071C Service Guide

Chapter 6 291
Replacement Procedure
PCI DSP Card and GPIB Card Replacement
6. Replacement Procedure

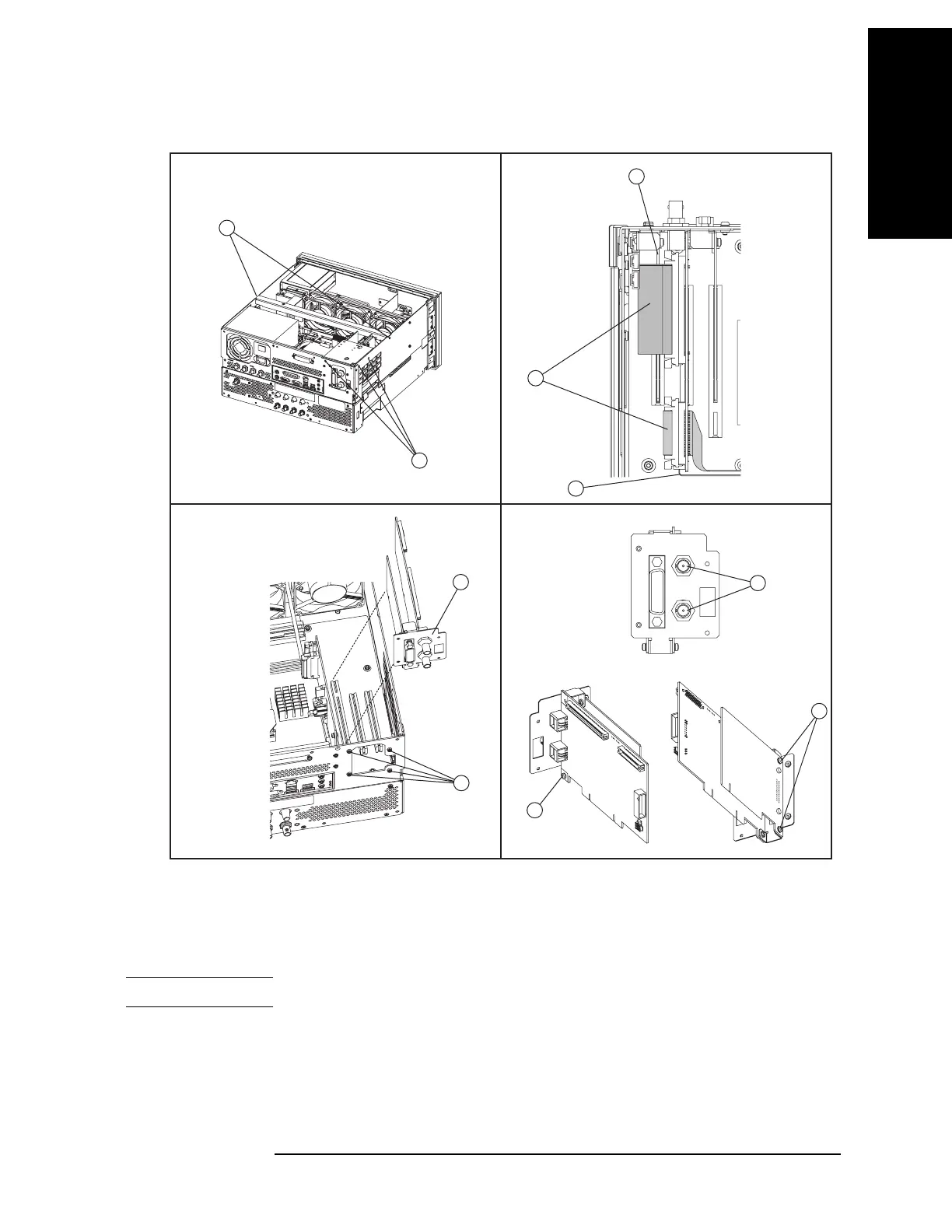

Figure 6-15 PCI DSP Card and GPIB Card Removal
e5071cse1101
1
3
6
9
10
5
8
7
2
4
Replacement Procedure
Step 1. Replace the PCI DSP card and GPIB card by inverse procedure of removal.
NOTE Fasten the 5/8 inch nuts (item 8) using an open-end torque wrench.
