314 Chapter 6
Replacement Procedure
Front Panel Cover Removal
Front Panel Cover Removal
Tools Required
• TORX screwdriver, T10, T15, and T20
• Flat edge screwdriver
Removal Procedure
Refer to Figure 6-28 for this procedure.
Step 1. Remove the outer cover as described in “Outer Cover Removal” on page 266.
Step 2. Remove the front panel as described in “Front Panel Removal” on page 267.
Step 3. Disconnect the cables (item 1, 2, 3, 4) connected through the cover.
Step 4. Remove the six TORX T10 screws (item 5) fastening the cover.

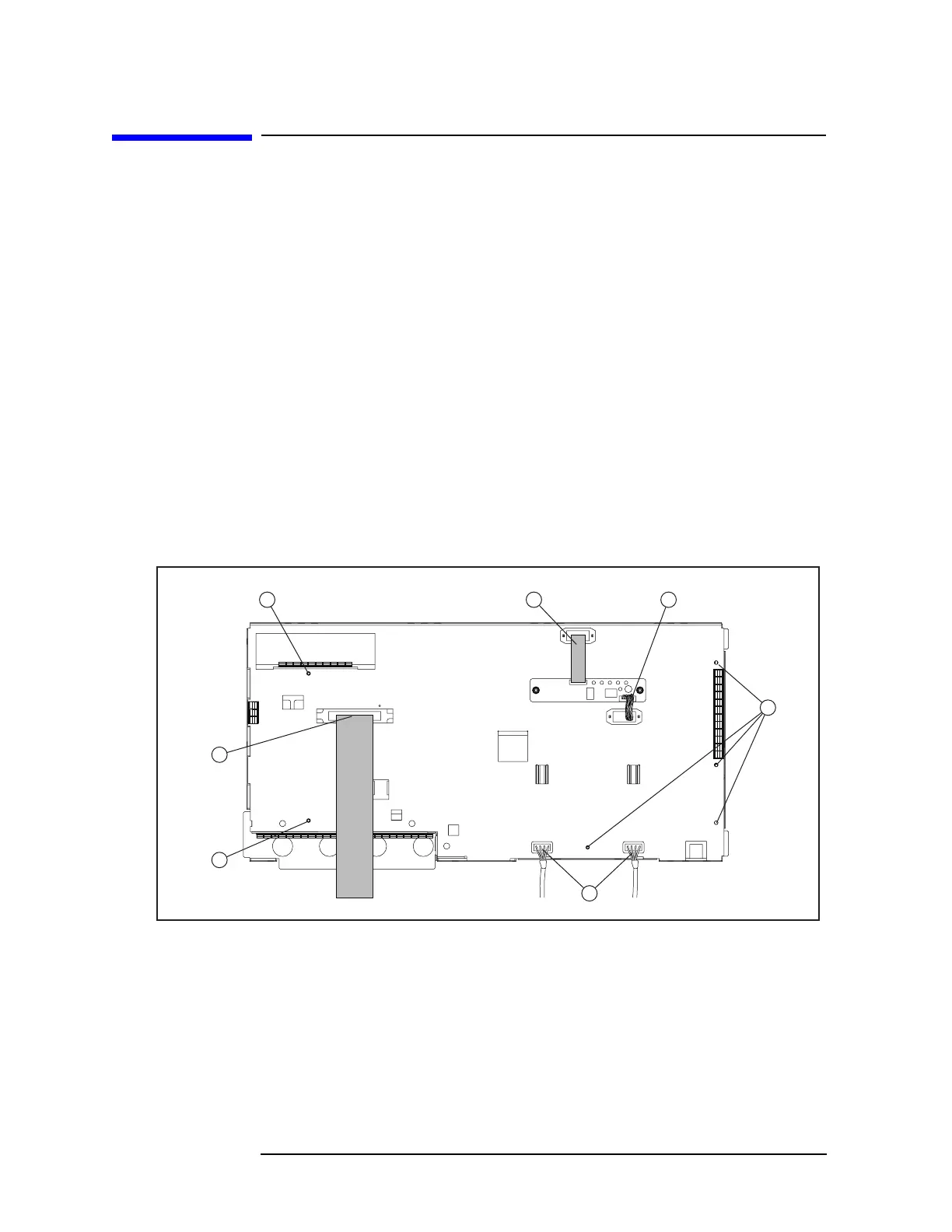

Figure 6-28 Front Panel Cover Removal
e5071cse1111
5 4 3
5
2
1
5
To Next Page
