Chapter 6 319
Replacement Procedure
LCD Replacement
6. Replacement Procedure

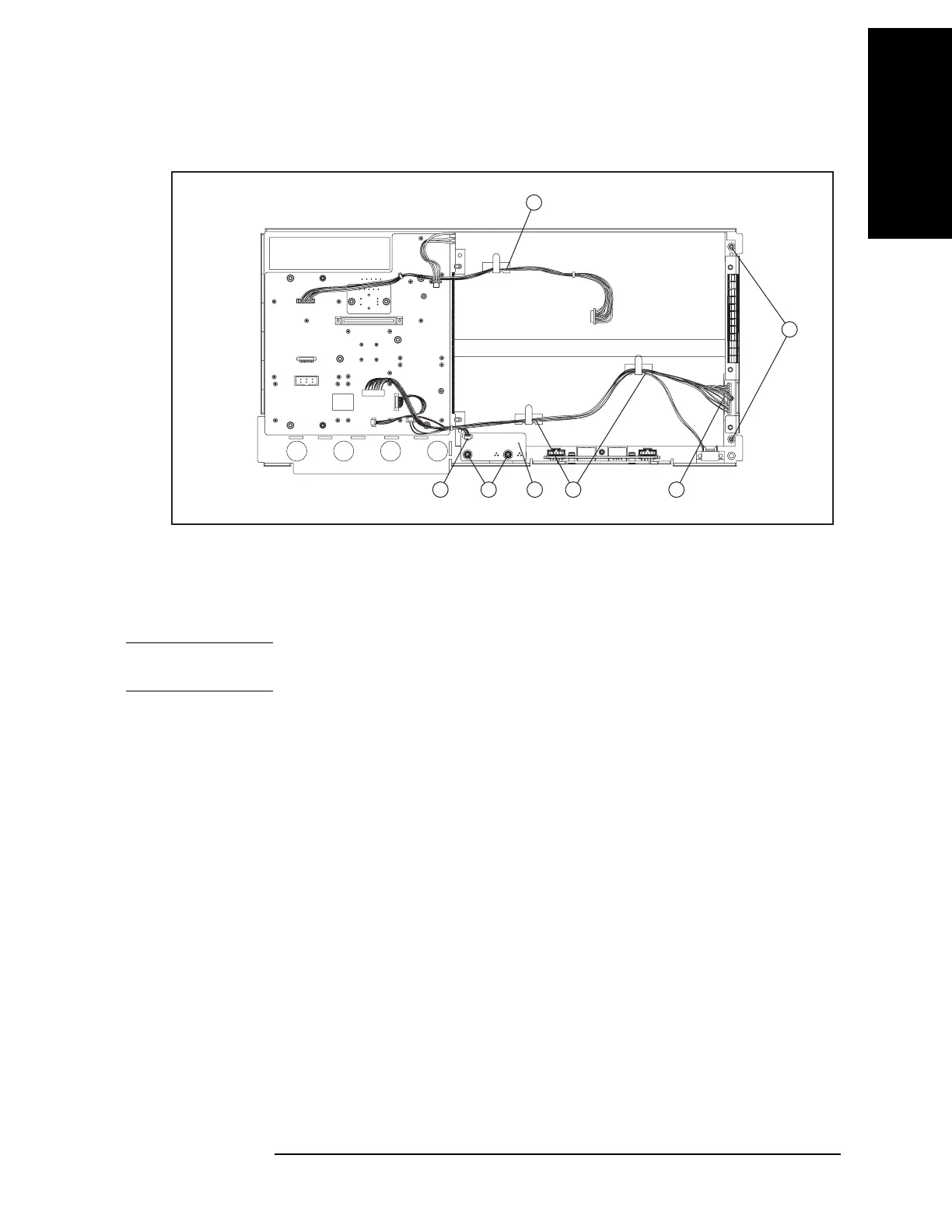

Figure 6-31 LCD Removal
e5071cse1114
1
5
62 3 4 1
Replacement Procedure
Step 1. Replace the LCD by inverse procedure of removal.
NOTE Fasten the TORX T15 screws (item 5) using a torque screwdriver (set to 1.02 N-m / 9.0
lb-in).
Step 2. You have to calibrate the touch screen. Follow the procedure described on “Calibration of
the Touch Screen” on page 272.
