Agilent Technologies E5071C Service Guide

234 Chapter 5
Replaceable Parts
Replaceable Parts List
Rear View (2)

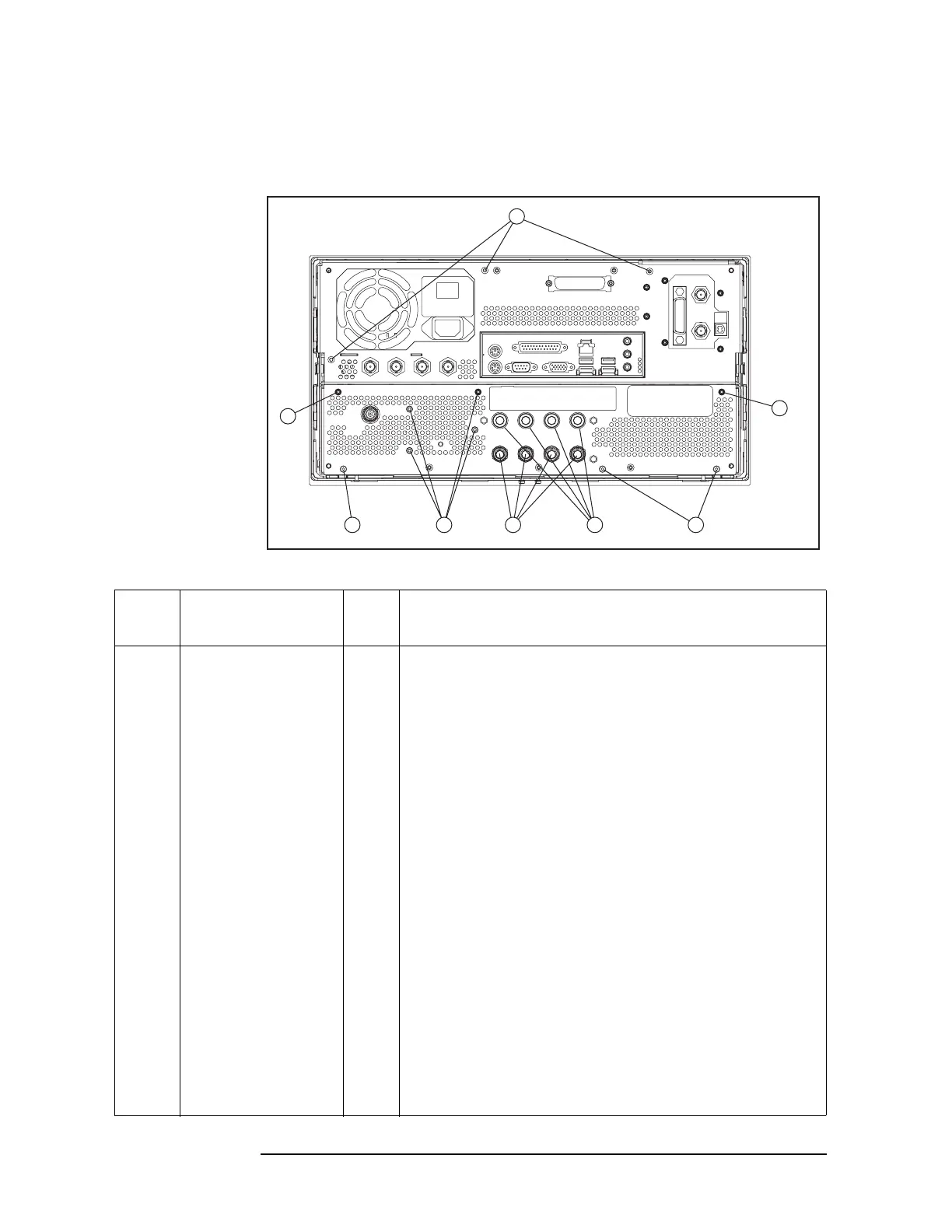

Figure 5-12 Rear View (2)
e5071cse1092
1
2
34 523
2
Table 5-12 Rear View (2)
Ref.
Desig.
Agilent Part Number Qty. Description
1
0515-1946
3 SCREW-MACH M3.0 x L6 FL T10
2 0515-0430 6 SCREW-MACH M3.0 x L6 PN T10
3
0515-1946
3 SCREW-MACH M3.0 x L6 FL T10
4 2950-0035 2 NUT (Opt. 235, 285)
2190-0102 2 WASHER (Opt. 235, 285)
6960-0524 2 PLUG-HOLE (Opt. 235, 285)
2950-0035 4 NUT (Opt. 435, 485)
2190-0102 4 WASHER (Opt. 435, 485)
6960-0524 4 PLUG-HOLE (Opt. 230, 280, 430, 480)
5 2110-0046 2 FUSE 5A 125V (Opt. 235, 285)
1400-0112 2 FUSE HOLDER CAP (Opt. 235, 285)
6960-0309 2 PLUG-HOLE (Opt. 235, 285)
2110-0046 4 FUSE 5A 125V ( Opt. 435, 485)
1400-0112 4 FUSE HOLDER CAP ( Opt. 435, 485)
6960-0309 4 PLUG-HOLE ( Opt. 430, 480)
