Chapter 5 247

Replaceable Parts

Replaceable Parts List

5. Replaceable Parts

Power Suplly Assembly

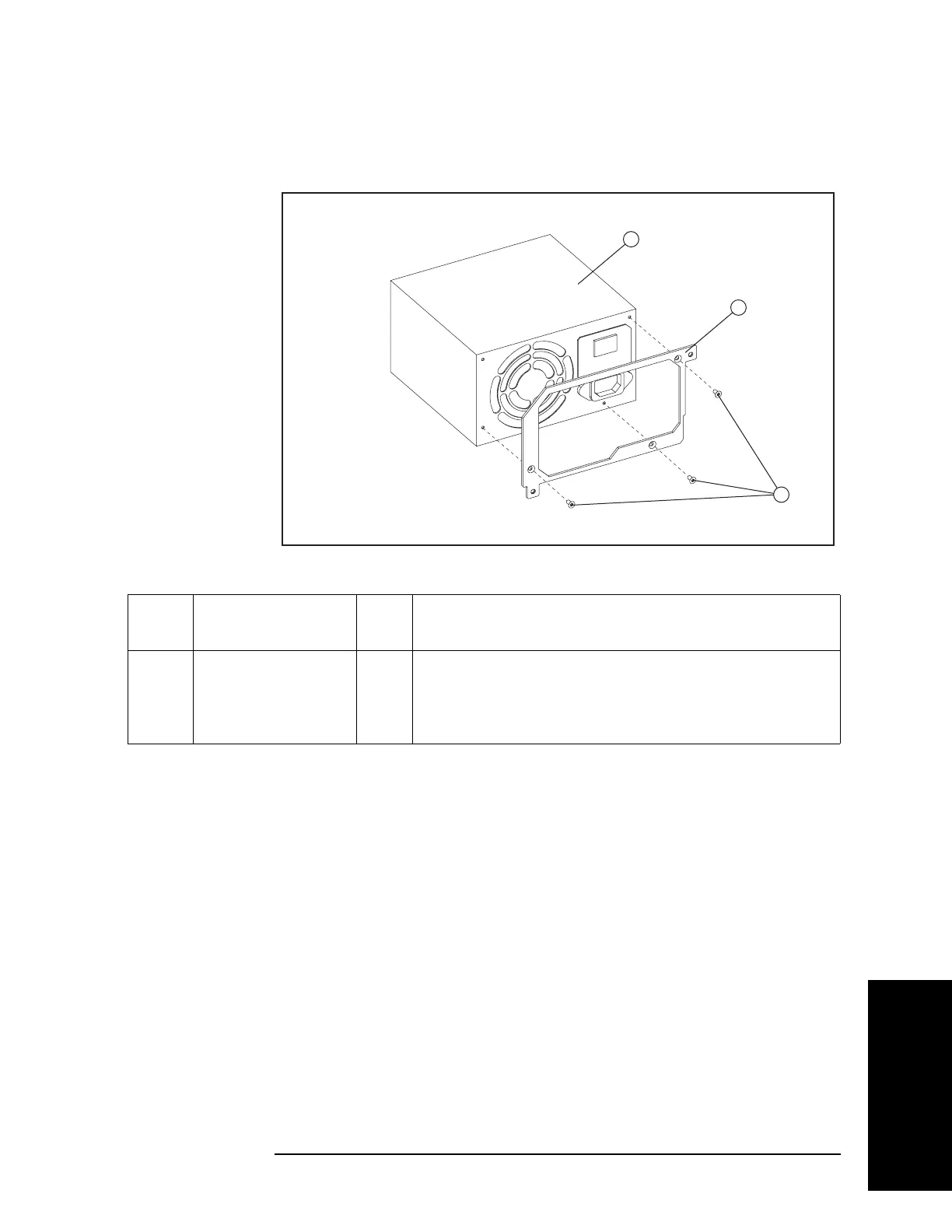

Figure 5-23 Power Suplly Assembly

e5071cse1159

Table 5-23 Power Suplly Assembly

Ref.

Desig.

Agilent Part Number Qty. Description

1 0950-4773 1 POWER SUPPLY

2 E5071-00601 1 PLATE

3 0515-1946 3 SCREW-MACH M3.0 x L6 FL T10
