Agilent Technologies E5071C Service Guide

Chapter 5 243
Replaceable Parts
Replaceable Parts List
5. Replaceable Parts
PCI DSP Card, GPIB Card and USB Card Assembly

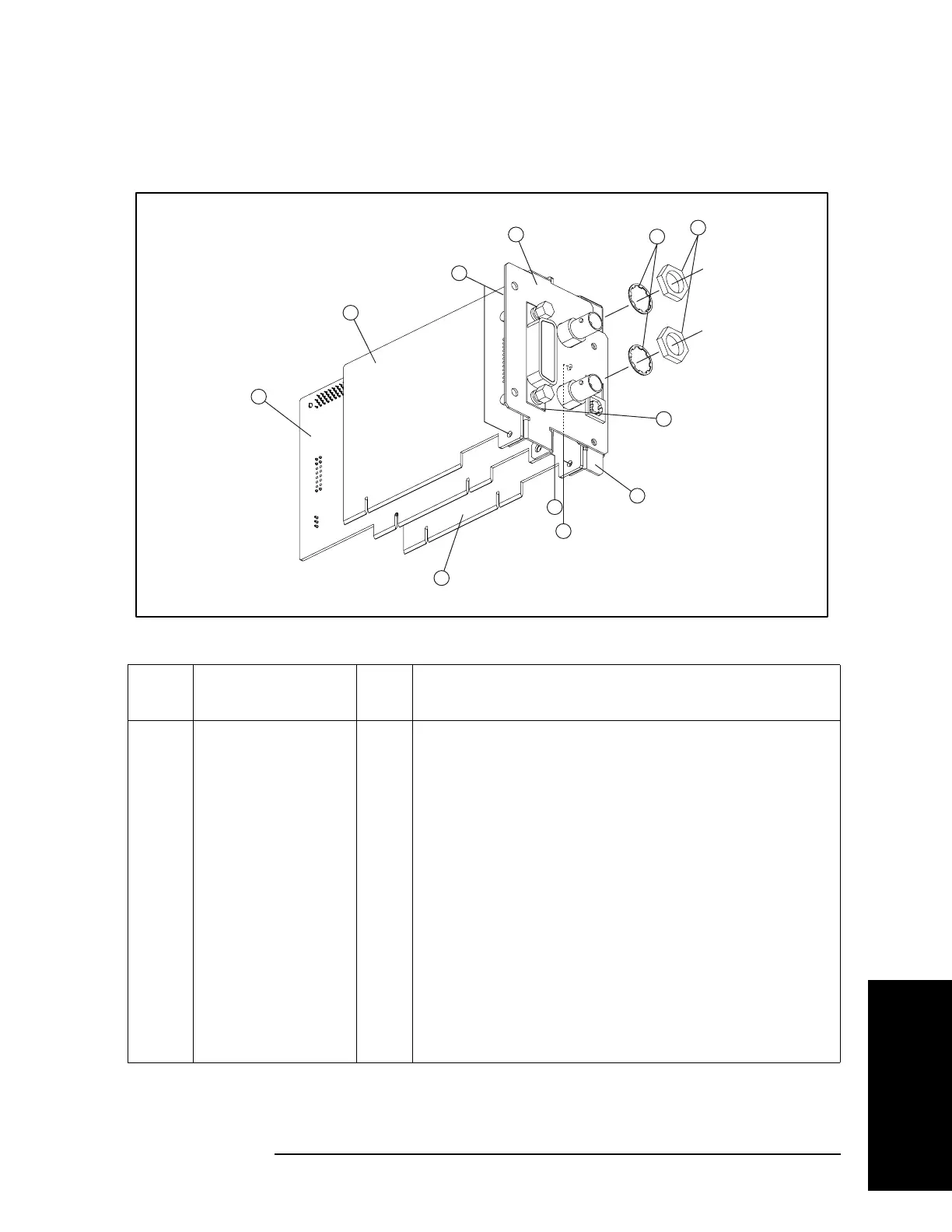

Figure 5-19 PCI DSP Card, GPIB Card AND USB Card Assembly
e5071cse1021
1
4
2
6
7
11
9
10
5
3
8
Table 5-19 PCI DSP Card, GPIB Card AND USB Card Assembly
Ref.
Desig.
Agilent Part Number Qty. Description
1 E5071-01204 1 BRACKET BOARD
2 E5070-66551 1 PCI DSP CARD
3 0515-0430 1 SCREW-MACH M3.0 x 6 PN T10
4 82350-66512 1 PCI GPIB CARD (Service Center Only)
5 0515-0430 2 SCREW-MACH M3.0 x 6 PN T10
6 0960-2357 1 USB ADAPTER CARD
7 E5071-01218 1 BRACKET USB
8 0515-0430 2 SCREW-MACH M3.0 x 6 PN T10
9 2190-0054 2 WSHR-LK INTL T
10 2950-0054 2 NUT-HEX-DBL-CHAM
11 1253-6142 1 SHIELD
