238 Chapter 5

Replaceable Parts

Replaceable Parts List

Removable Hard Disk Drive Assembly

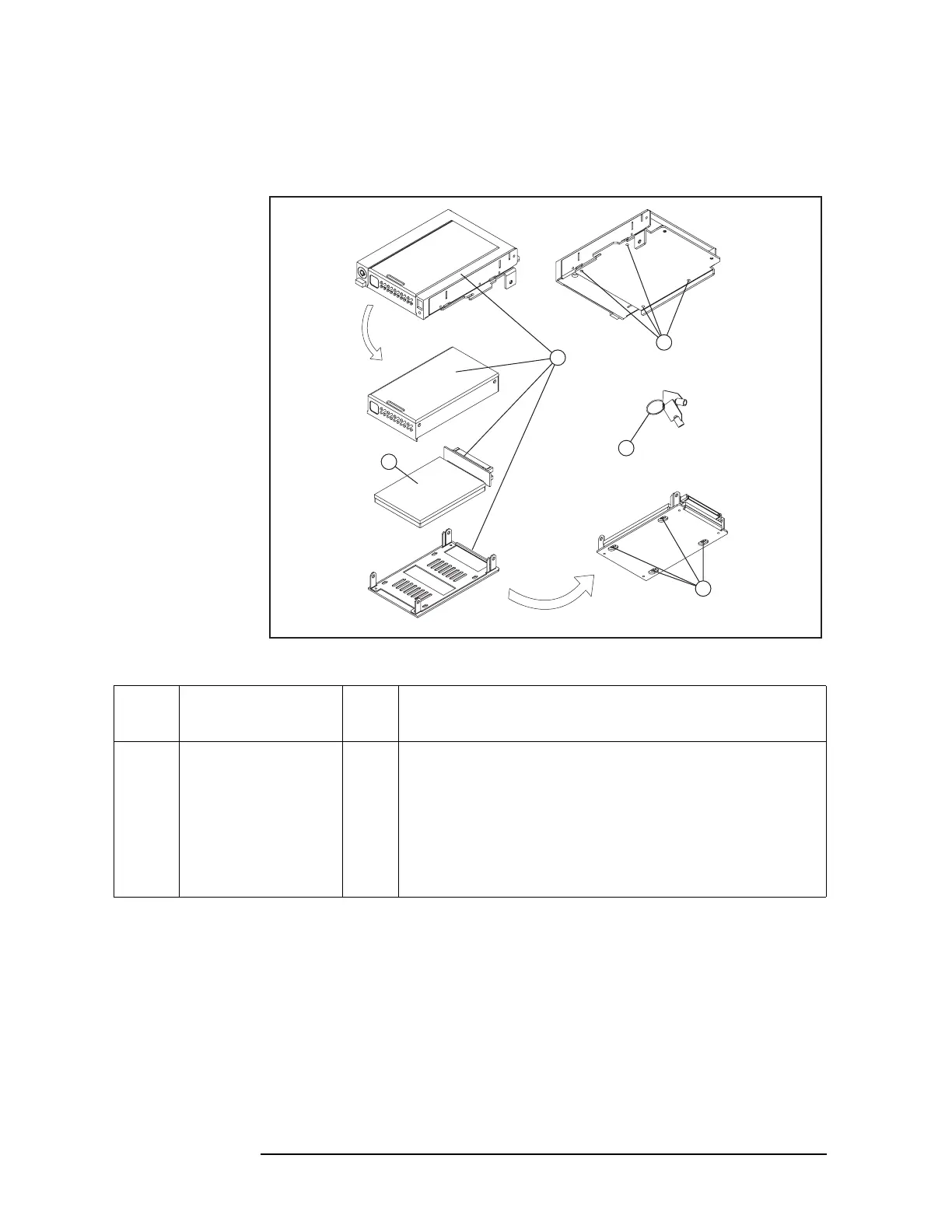

Figure 5-16 Removable Hard Disk Drive Assembly

e5071cse1016

Table 5-16 Removable Hard Disk Drive Assembly

Ref.

Desig.

Agilent Part Number Qty. Description

1 5188-4410 1 HDD CARRIER (Service Center Only)

2 E5071-82301 1 HDD INSTALLED (Service Center Only)

3 0515-4353 4 SCREW-MACH M3.0 x L3 PN T10 (Service Center Only)

4 0960-2562 1 HDD KEYS

5 0515-0430 4 SCREW-MACH M3.0 x L6 PN T10
