Chapter 4 183
Troubleshooting
Boot Process Troubleshooting
4. Troubleshooting
Step 1. Splash Screen
The splash screen is displayed with Agilent logo as shown in Figure 4-5.
If the splash screen is displayed, you can assume that the CPU Mother Board Assembly is
functioning correctly.
NOTE While the splash screen is displayed, if you want to run the BIOS setup utility, push F2 key
as soon as in the screen.

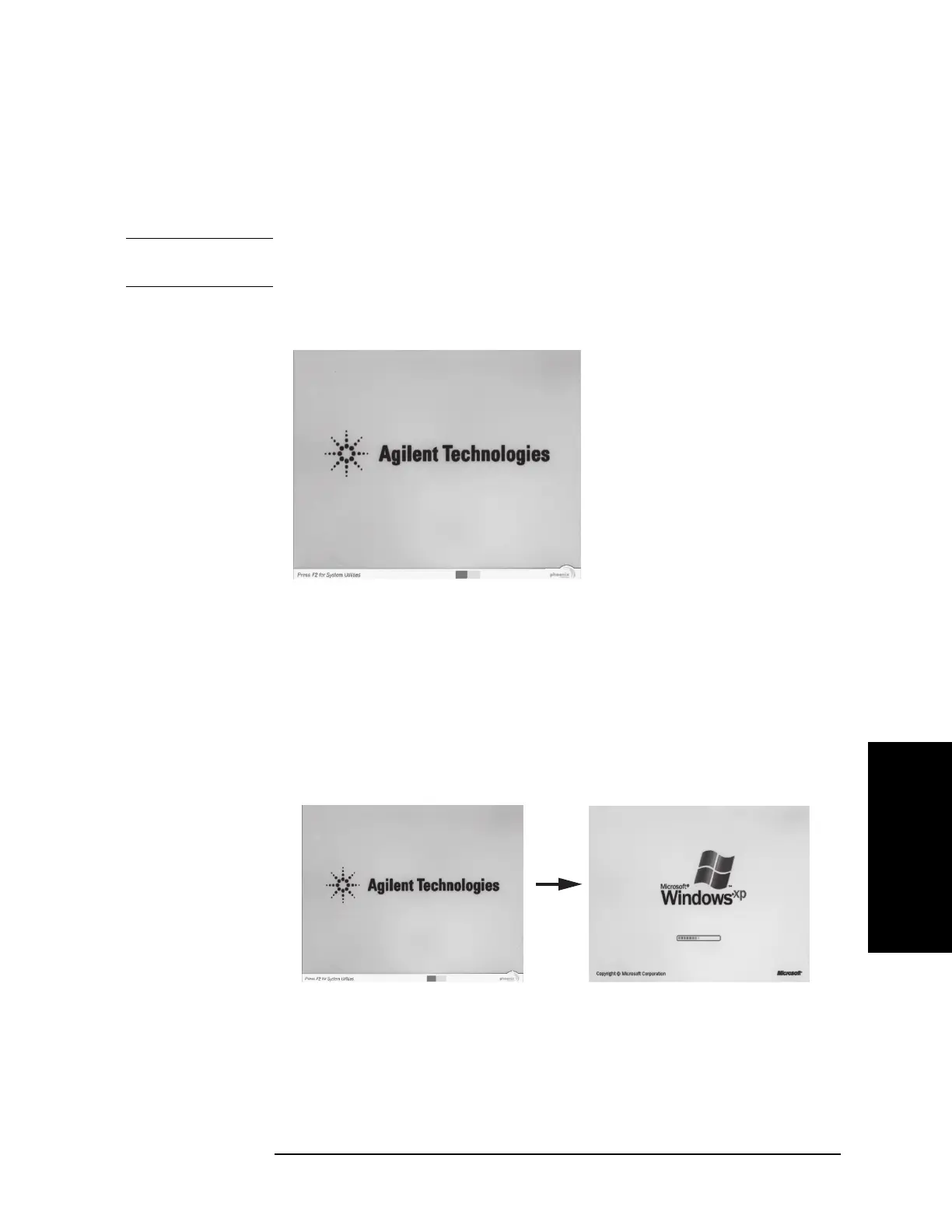

Figure 4-5 Splash Screen
e5071cse1061
Step 2. Windows boot screens
The Windows boot screens are displayed. The Windows boot screens consists of two
screens. Each screen is displayed in the order as shown in
Figure 4-6. If the Windows boot
screens are displayed, it is assumed that the Hard Disk Drive works. While the Window
screens are displayed, Windows operating system is starting up.
Figure 4-6 Windows boot screens
e5071cse1058
If you encounter the following problems, try to reinstall the operating system before
replacing the Hard Disk Drive.
• "xxx file is missing" is displayed on DOS screen.
