Appendix B 345

System Recovery

B. System Recovery

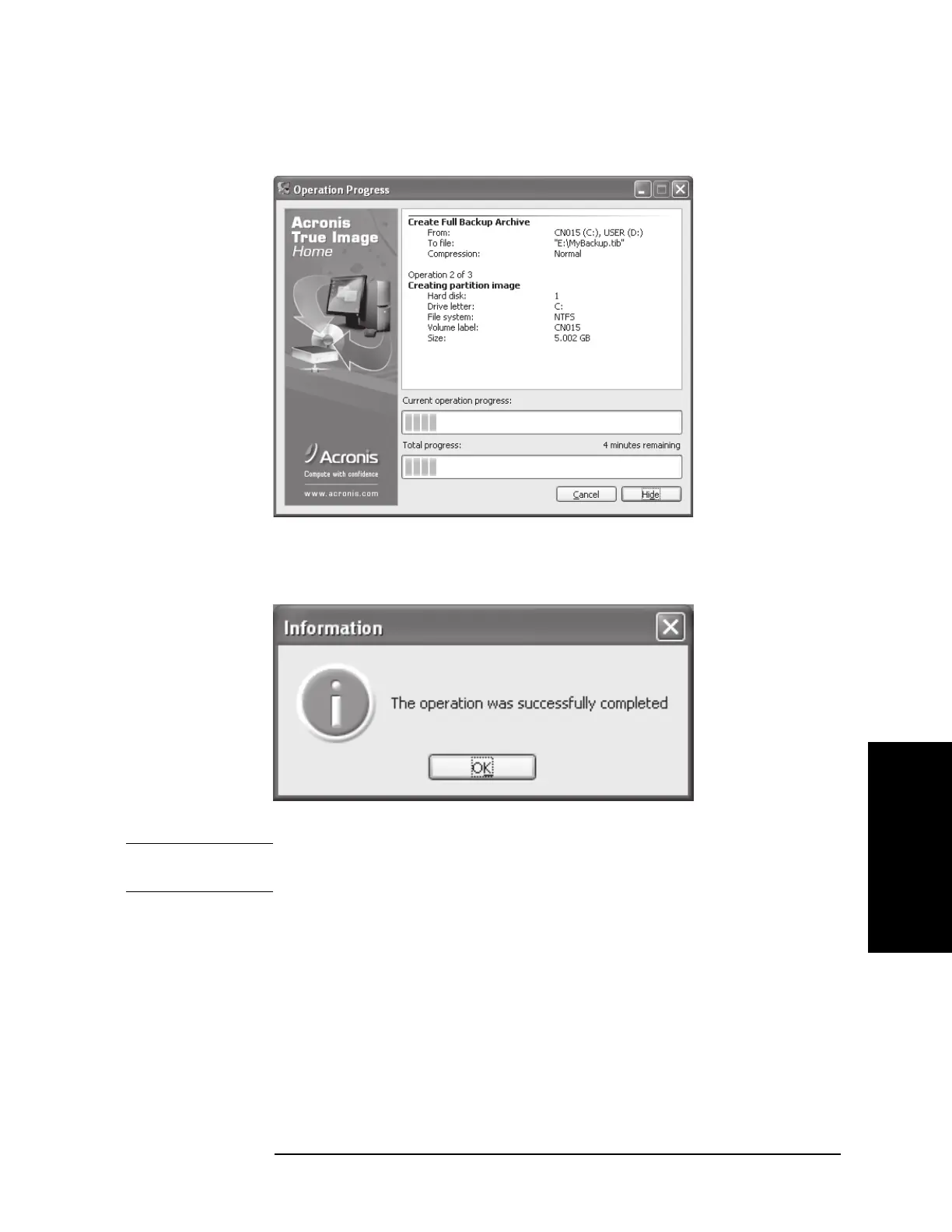

Step 14. The following screen appears during backup.

e5071cse1134

Step 15. The following screen appears when the user backup image was created. Click OK.

e5071cse1135

CAUTION Never turn off the power during creating the user backup image because doing so

may cause serious damage to the E5071C.
