Appendix B 351

System Recovery

B. System Recovery

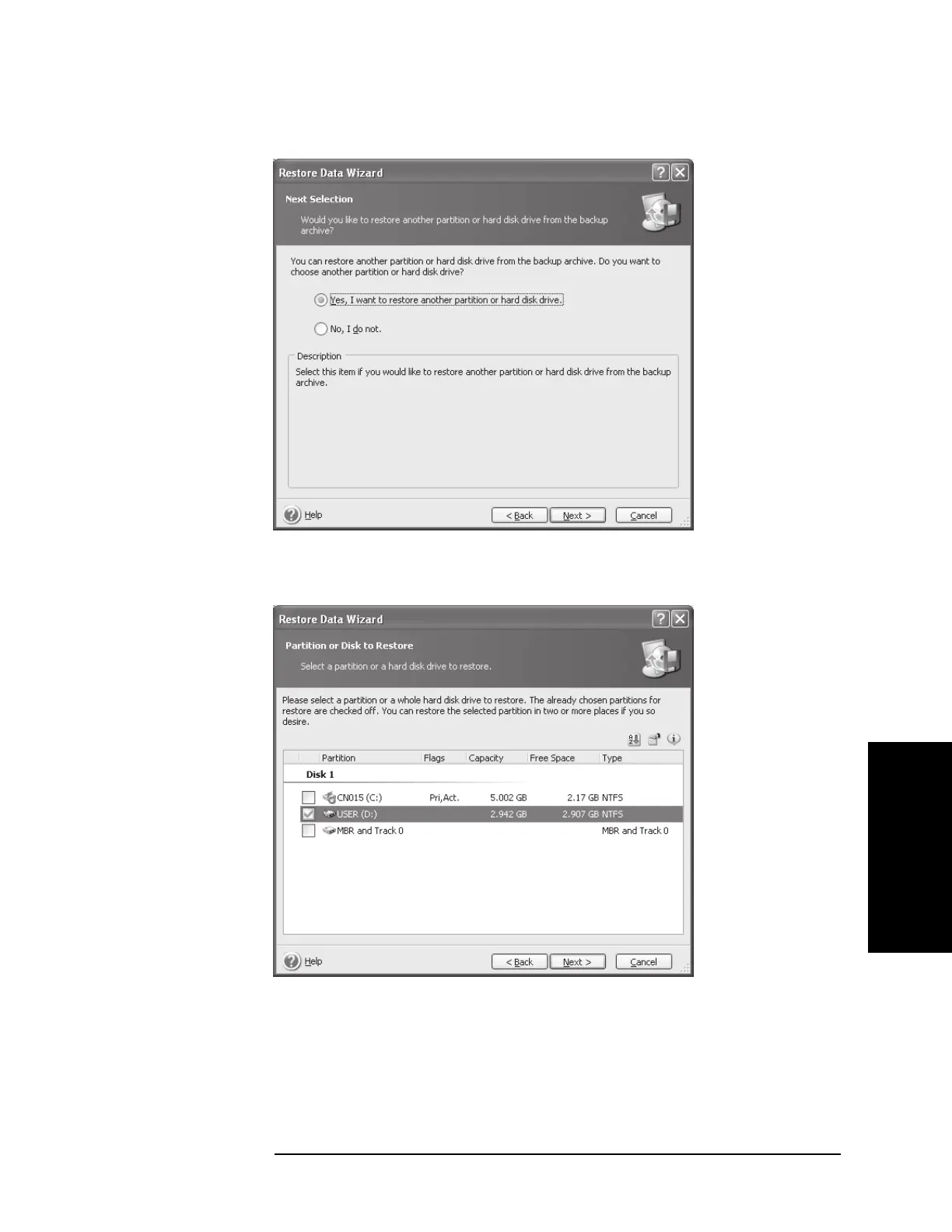

Step 14. Select “Yes, I want to restore another partition or hard disk drive,” then click Next button.

e5071cse1148

Step 15. Select the D drive to restore, then click Next button.

e5071cse1149
