150 Rockwell Automation Publication 1769-UM022C-EN-P - June 2018

Chapter 9 Develop Safety Applications

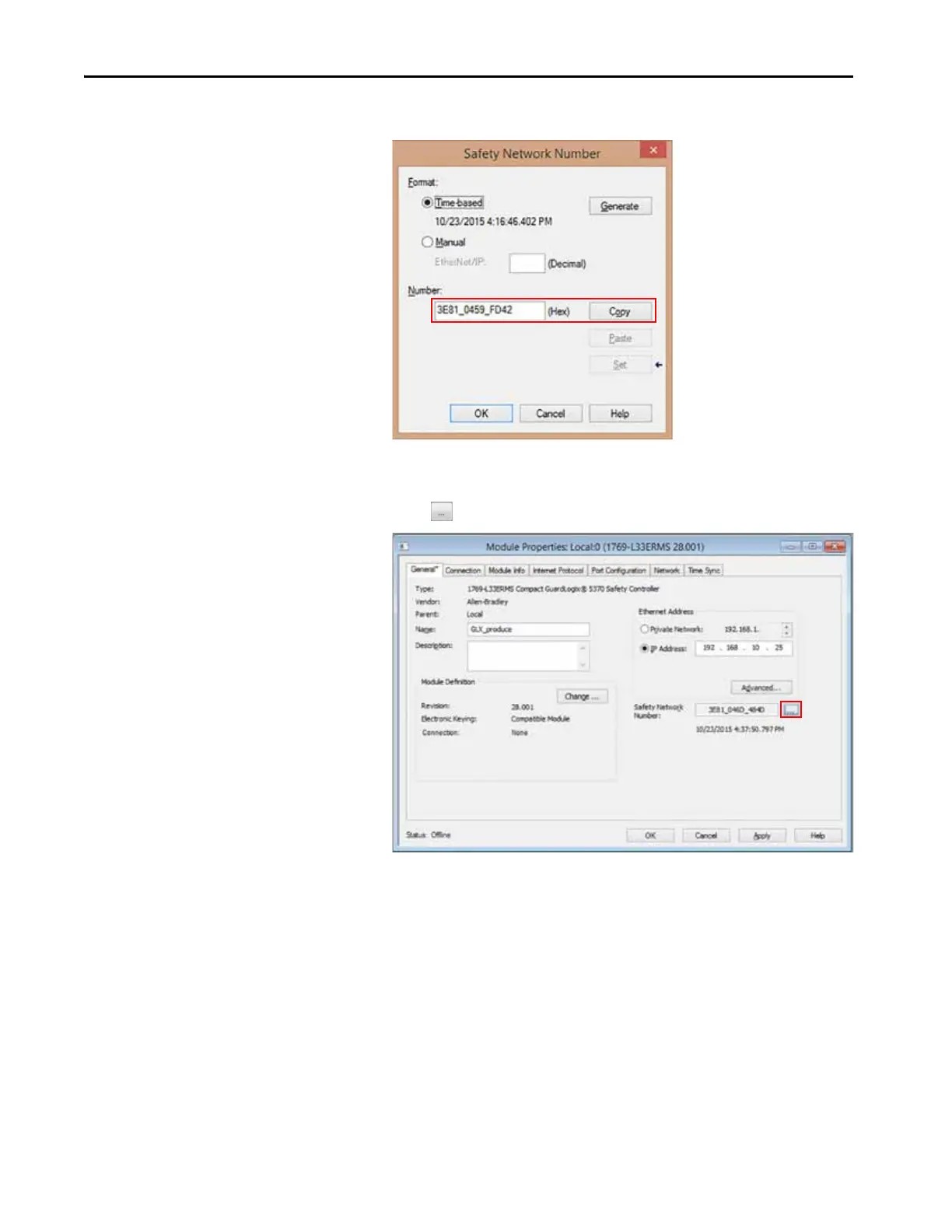

4. Click Copy to copy the producer controller’s SNN.

5. In the consumer controller’s project, right-click the producer controller

and choose Module Properties.

6. Click to open the Safety Network Number dialog box.
