Rockwell Automation Publication 1769-UM022C-EN-P - June 2018 37
Complete the Controller Setup Chapter 3

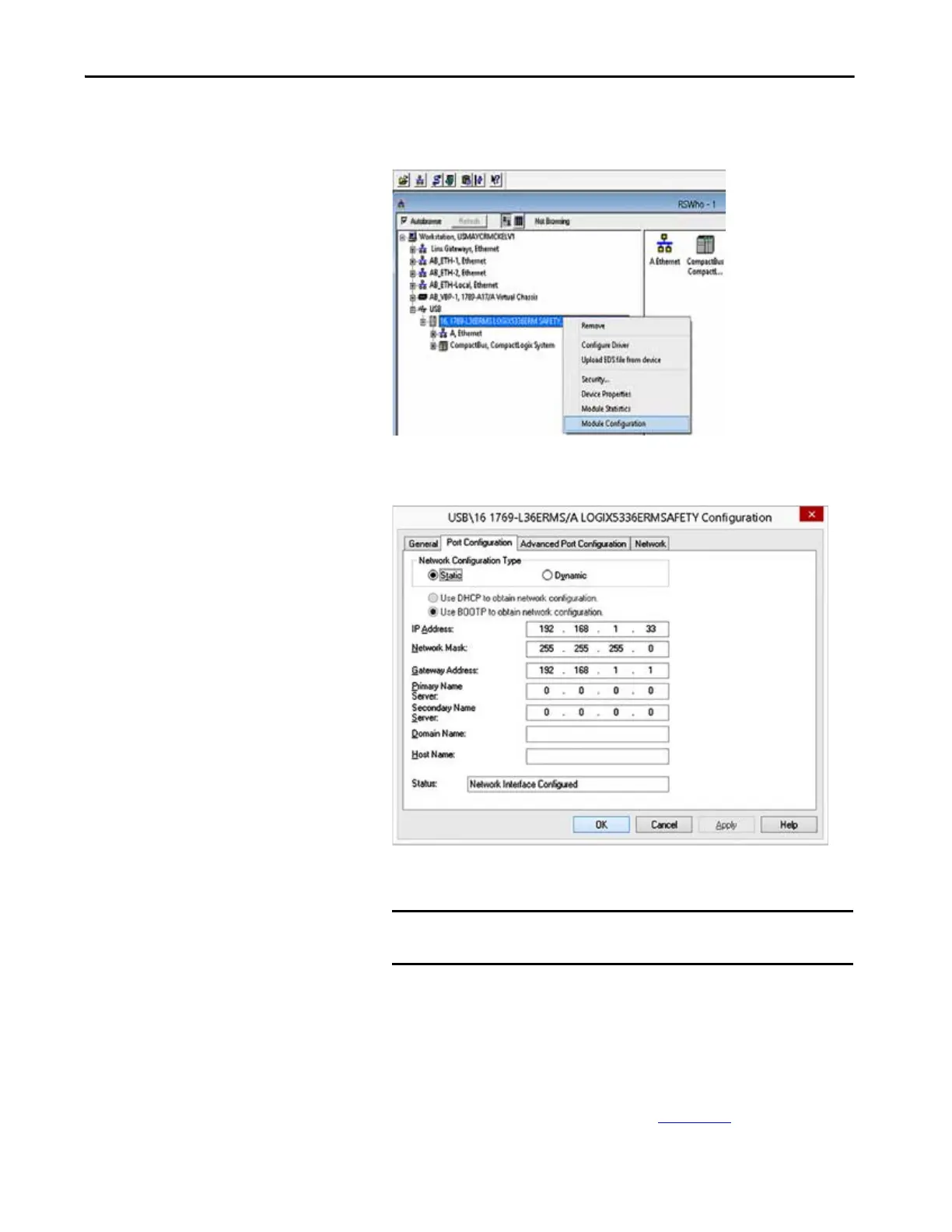

The RSWho dialog box appears and includes the USB driver.
4. Right-click the EtherNet/IP module and choose Module Configuration.
The Module Configuration dialog box appears.
5. Click the Port Configuration tab.
6.
For Network Configuration Type, select Static to assign this configuration
to the port.
7. Type the new IP address and Network Mask.
8. Click OK.
As with all configuration changes, make sure that you are using the SD card in a
way that does not overwrite the IP address at the next controller power cycle.
For more information on using the SD card, see Chapter
13.
IMPORTANT If you click Dynamic on a power cycle, the controller clears the
current IP configuration and starts to send BOOTP requests.
