10.1 IMPLEMENT ADVANCED SETTINGS
10.1.1 Spray spots congurations
Allows setting 20 different congurations (i.e., 20 nozzle combinations), which can be selected before starting each job.
Each conguration indicates which type of nozzle is installed on the boom's spraying points.
NOZZLES
A, B, C, D
Spraying point
Nozzle A Nozzle C
Nozzle B Nozzle D
Nozzle A
Nozzle B

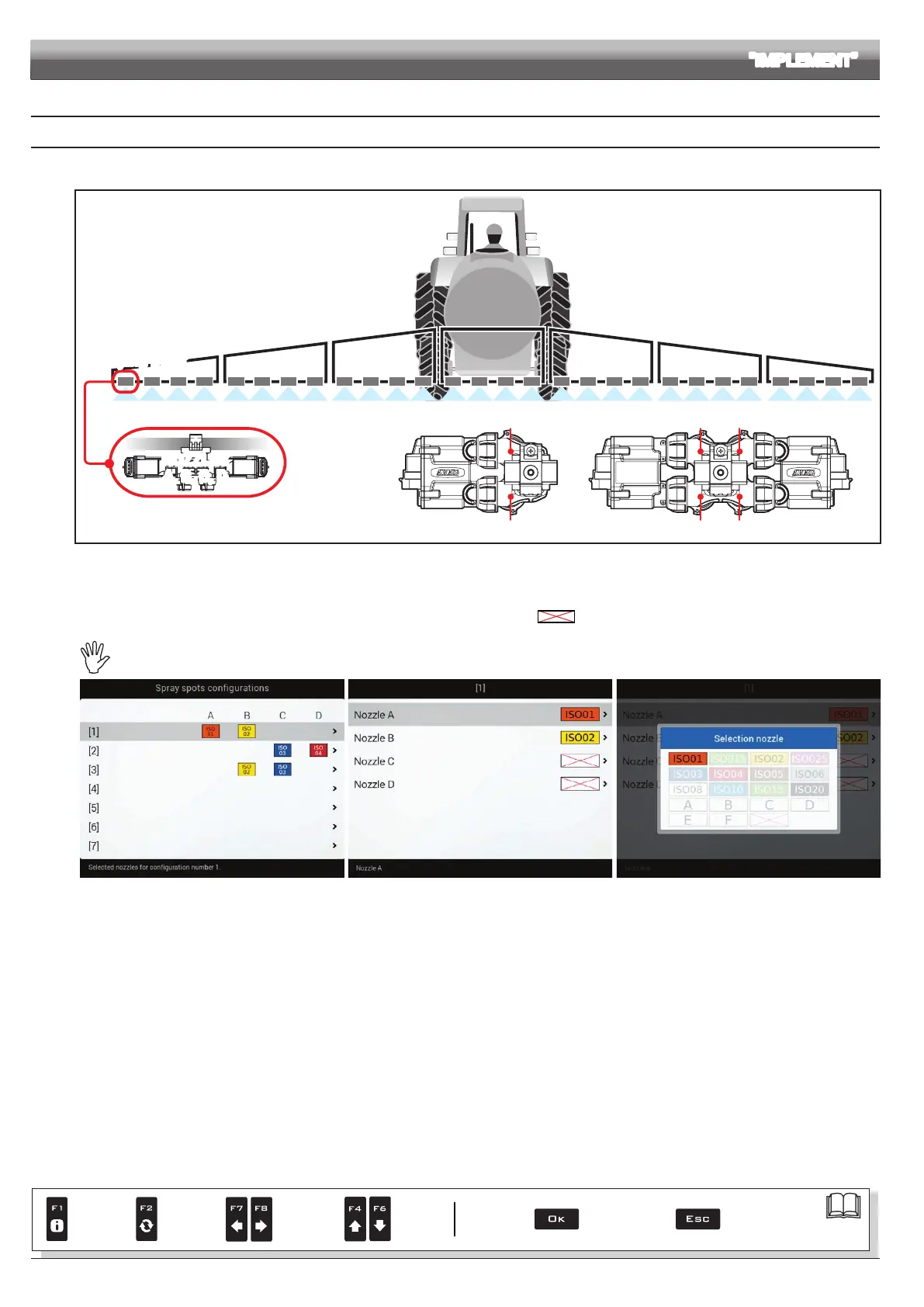

Fig. 75
During guided setup (chap. 9), the computer will ask you to indicate which type of Seletron is installed at said spraying points (single, twin or fourfold).
Depending on the selected option the number of nozzles to be programmed in this menu will vary.
- Select the conguration you wish to set up (Fig. 76).
- Select the nozzle you wish to set up (
A, B, C or D, in Fig. 77).
- Select one of the suggested nozzles (Fig. 78): if a nozzle is NOT in use, disable it by selecting .
- Repeat the setup for each conguration.
The nozzle settings are the same for all spraying points on the boom.
Fi g. 76 Fig. 77 Fig. 78
