ARAG DELTA 80 - Reference Lines Distance Offset

47
END 10.1.12 Working parameters
ADVANCED SETUP "IMPLEMENT"

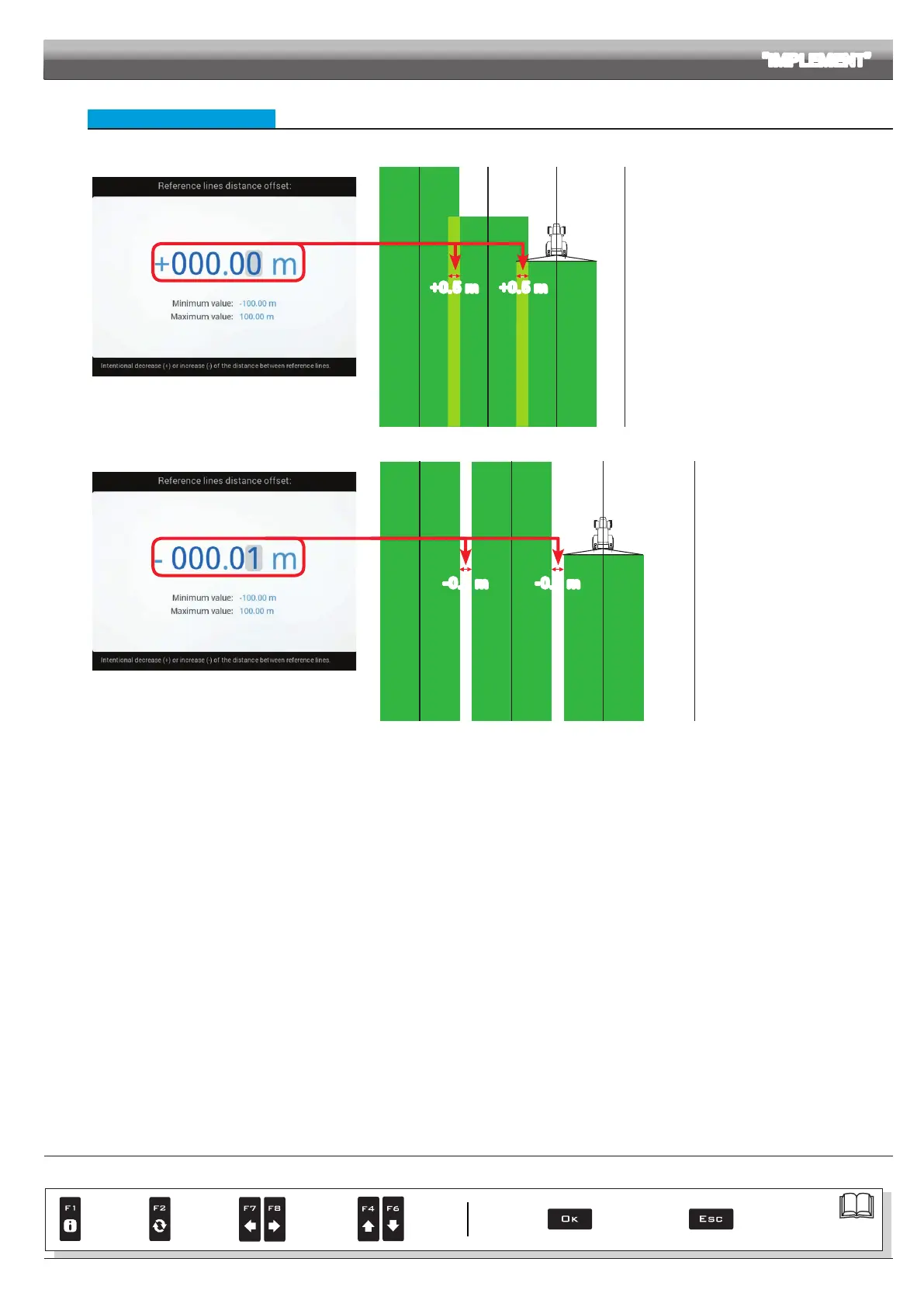

• Reference lines distance offset
This value allows changing the distance between the reference tracks.
Fig. 147
+0.5 m +0.5 m
Fig. 148
When the value is positive, the distance between the
reference tracks (black lines) decreases.
The spray lateral sides overlap.
Fig. 149
-0.5 m -0.5 m
Fig. 150
When the value is negative, the
distance between the reference tracks
(black lines) increases.
Unsprayed spaces are left between
one spray and the other.
Par.
7. 4
Conrm access
or data change
Exit the function or
data change
Delete
selected
character
Scroll
(LEFT /
RIGHT)
Data
increase /
decrease
Scroll
(UP /
DOWN)
Enter
selected
character
