ARAG DELTA 80 - Flowmeter; Type; Constant; Minimum Flowrate

33

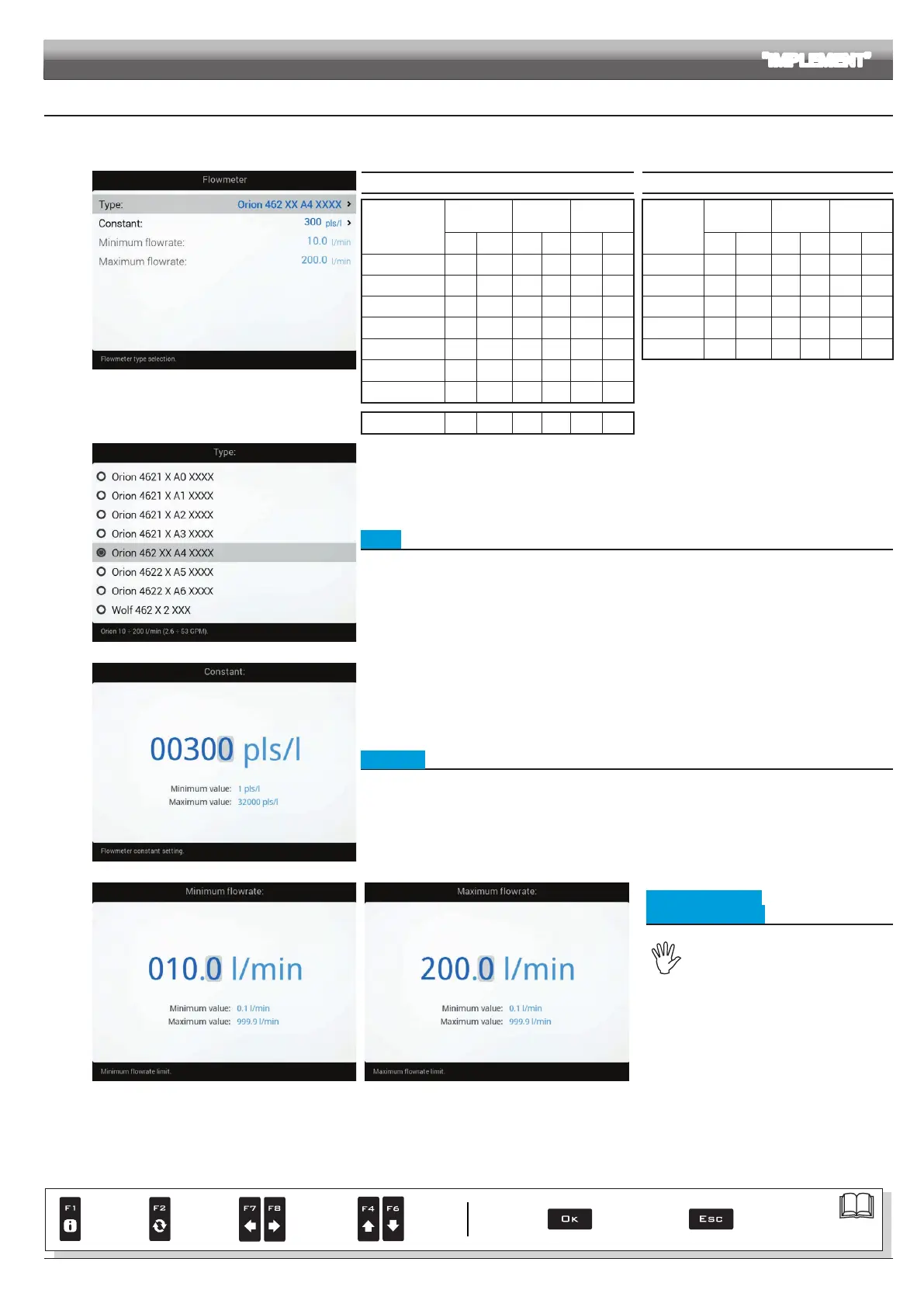

10.1.3 Flowmeter
Enter the values for the owmeter installed on the system.
The table below indicates the values that are automatically set when selecting the owmeter code.
If the installed owmeter is not displayed, select Other and enter the relevant values.
Fig. 87
ORION FLOWMETERS WOLF FLOWMETERS
Type
Constant
Minimum
flowrate
Maximum
flowrate
Type
Constant
Minimum
flowrate
Maximum
flowrate
pls/l pls/gal l/min GPM l/min GPM pls/l pls/gal l/min GPM l/min GPM
4621xA0xxxx
6000 22710 0.5 0.10 10 2.6
462x2xxx
1025 3880 2.5 0.7 50 13.2
4621xA1xxxx
3000 11355 1 0.30 20 5.3
462x3xxx
625 2366 5.0 1. 3 100 26.4
4621xA2xxxx
1200 4542 2.5 0.70 50 13.2
462x4xxx
250 946 10.0 2.6 200 52.8
4621xA3xxxx
600 2271 5 1.30 100 26.4
462x5xxx
132 500 20.0 5.3 400 105.7
462xxA4xxxx
300 113 5 10 2.60 200 52.8
462x7xxx
60 227 40.0 10.6 800 211.3
4622xA5xxxx
150 568 20 5.30 400 105.7
4622xA6xxxx
100 378 30 7.90 600 158.5
Other
625 2366 10 2.60 200 52.8
Fig. 88
• Type
Indicate the type of owmeter installed.
Fig. 89
• Constant
Indicate the constant of the installed owmeter.
Fig. 90 Fig. 91
• Minimum owrate
• Maximum owrate
The items Minimum flowrate and
Maximum flowrate can be modied
only when the option Other (Type menu
in Fig. 88) is enabled.
Enable the relevant function on the
Alarms menu
(par. 10.1.11) if you want the computer to trigger
an alarm when, during spraying, the owmeter
rate is outside the set range.
For the procedure to be followed when an
alarm occurs, please refer to par. 17.1 Error
messages.
ADVANCED SETUP "IMPLEMENT"
Par.
7. 4
Conrm access
or data change
Exit the function or
data change
Delete
selected
character
Scroll
(LEFT /
RIGHT)
Data
increase /
decrease
Scroll
(UP /
DOWN)
Enter
selected
character
