8

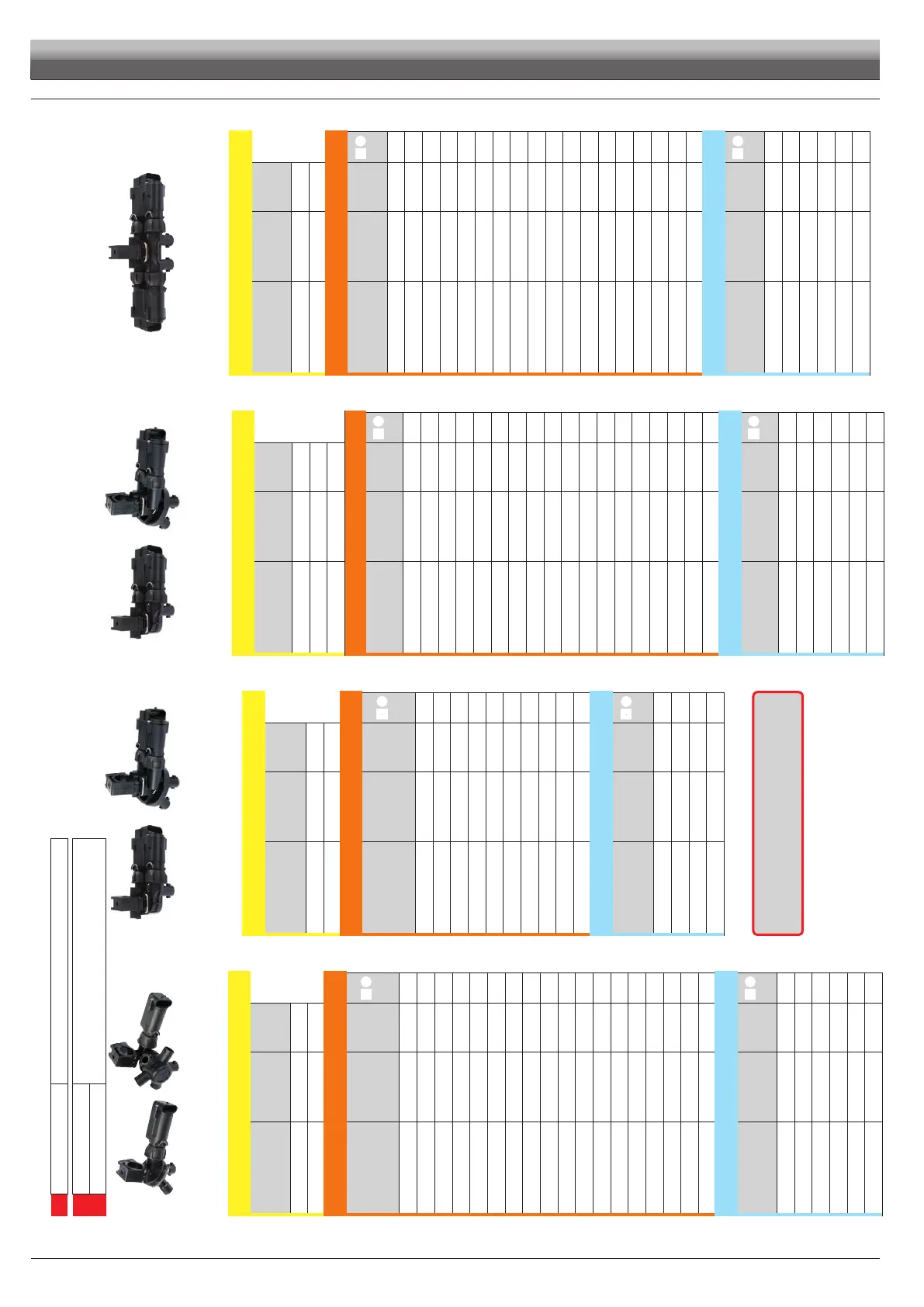

Tab. 1 - CONNECTION CABLES
INSTALLATION
CABLES FOR SELETRON - FOURFOLD
MAX. BOOM WIDTH 36 M
50 cm spacing
3 - CENTRAL CABLES
Code
no. of
SELETRON
nozzle holders
Cable
length
(m)
467 491 D020.100 2 9.5
467 491 D031.100 3 10
4 - PLUS EXTENSION CABLES
Code
no. of
SELETRON
nozzle holders
Cable
length
(m)
/
(m)
467 492 D031.100 3 3 0.5
467 492 D041.100 4 3.5 1
467 492 D051.100 5 4 0.5
467 492 D061.100 6 4.5 1
467 492 D071.100 7 5 0.5
467 492 D081.100 8 5.5 1
467 492 D091.100 9 6 0.5
467 492 D101.100 10 6.5 1
467 492 D111.100 11 7 0.5
467 492 D121.100 12 7. 5 1
467 492 D131.100 13 8 0.5
467 492 D141.100 14 8.5 1
467 492 D151.100 15 9 0.5
467 492 D161.100 16 9.5 1
467 492 D171.100 17 10 0.5
467 492 D181.100 18 10.5 1
467 492 D191.100 19 11 0.5
467 492 D201.100 20 11. 5 1
5 - PLUS TERMINATION CABLES
Code
no. of
SELETRON
nozzle holders
Cable
length
(m)
/
(m)
467 493 D031.100 3 2 0.5
467 493 D041.100 4 2.5 1
467 493 D051.100 5 3 0.5
467 493 D061.100 6 3.5 1
467 493 D071.100 7 4 0.5
467 493 D081.100 8 4.5 1
CABLES FOR SELETRON - SINGLE
MAX. BOOM WIDTH 48 M
50 cm spacing
3 - CENTRAL CABLES
Code
no. of
SELETRON
nozzle holders
Cable
length
(m)
467 491 C020.100 2 9.5
467 491 C031.100 3 10
4 - STANDARD EXTENSION CABLES
Code
no. of
SELETRON
nozzle holders
Cable
length
(m)
/
(m)
467 492 A031.100 3 3 0.5
467 492 A041.100 4 3.5 1
467 492 A051.100 5 4 0.5
467 492 A061.100 6 4.5 1
467 492 A071.100 7 5 0.5
467 492 A081.100 8 5.5 1
467 492 A091.100 9 6 0.5
467 492 A101.100 10 6.5 1
467 492 A111.100 11 7 0.5
467 492 A121.100 12 7. 5 1
467 492 A131.100 13 8 0.5
467 492 A141.100 14 8.5 1
467 492 A151.100 15 9 0.5
467 492 A161.100 16 9.5 1
467 492 A171.100 17 10 0.5
467 492 A181.100 18 10.5 1
467 492 A191.100 19 11 0.5
467 492 A201.100 20 11. 5 1
5 - STANDARD TERMINATION CABLES
Code
no. of
SELETRON
nozzle holders
Cable
length
(m)
/
(m)
467 493 A031.100 3 2 0.5
467 493 A041.100 4 2.5 1
467 493 A051.100 5 3 0.5
467 493 A061.100 6 3.5 1
467 493 A071.100 7 4 0.5
467 493 A081.100 8 4.5 1
CABLES FOR SELETRON - TWIN /
FOURFOLD
MAX. BOOM WIDTH 24 M
50 cm spacing
3 - CENTRAL CABLES
Code
no. of
SELETRON
nozzle holders
Cable
length
(m)
467 491 C020.100 2 9.5
467 491 C031.100 3 10
4 - STANDARD EXTENSION CABLES
Code
no. of
SELETRON
nozzle
holders
Cable
length
(m)
/
(m)
467 492 A031.100 3 3 0.5
467 492 A041.100 4 3.5 1
467 492 A051.100 5 4 0.5
467 492 A061.100 6 4.5 1
467 492 A071.100 7 5 0.5
467 492 A081.100 8 5.5 1
467 492 A091.100 9 6 0.5
467 492 A101.100 10 6.5 1
467 492 A111.100 11 7 0.5
467 492 A121.100 12 7. 5 1
5 - STANDARD TERMINATION CABLES
Code
no. of
SELETRON
nozzle holders
Cable
length
(m)
/
(m)
467 493 A031.100 3 2 0.5
467 493 A041.100 4 2.5 1
467 493 A051.100 5 3 0.5
467 493 A061.100 6 3.5 1
CABLES FOR SELETRON - TWIN /
FOURFOLD
MAX. BOOM WIDTH 36 M
50 cm spacing
3 - CENTRAL CABLES
Code
no. of
SELETRON
nozzle holders
Cable
length
(m)
467 491 C020.100 2 9.5
467 491 C031.100 3 10
467 491 C041.100 4 10.5
4 - PLUS EXTENSION CABLES
Code
no. of
SELETRON
nozzle holders
Cable
length
(m)
/
(m)
467 492 C031.100 3 3 0.5
467 492 C041.100 4 3.5 1
467 492 C051.100 5 4 0.5
467 492 C061.100 6 4.5 1
467 492 C071.100 7 5 0.5
467 492 C081.100 8 5.5 1
467 492 C091.100 9 6 0.5
467 492 C101.100 10 6.5 1
467 492 C111.100 11 7 0.5
467 492 C121.100 12 7. 5 1
467 492 C131.100 13 8 0.5
467 492 C141.100 14 8.5 1
467 492 C151.100 15 9 0.5
467 492 C161.100 16 9.5 1
467 492 C171.100 17 10 0.5
467 492 C181.100 18 10.5 1
467 492 C191.100 19 11 0.5
467 492 C201.100 20 11. 5 1
5 - PLUS TERMINATION CABLES
Code
no. of
SELETRON
nozzle holders
Cable
length
(m)
/
(m)
467 493 C031.100 3 2 0.5
467 493 C041.100 4 2.5 1
467 493 C051.100 5 3 0.5
467 493 C061.100 6 3.5 1
467 493 C071.100 7 4 0.5
467 493 C081.100 8 4.5 1
> > > 5.1 System recommended composition
Connection cable for MONITOR / CONTROL UNIT / BATTERY
1A 467 49000.151 Cable for TOWED machine
1B
467 49000.101 (3+2 m)
Cable for SELF-PROPELLED machine
467 49000.102 (6+6 m)
LEGEND
Cable leadin center distance: 0.5 m
Cable leadin center distance: 0.5 m
