Brake System
Argo Service Manual
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
BR-7
NEVER attempt to align these with the engine running and in gear.

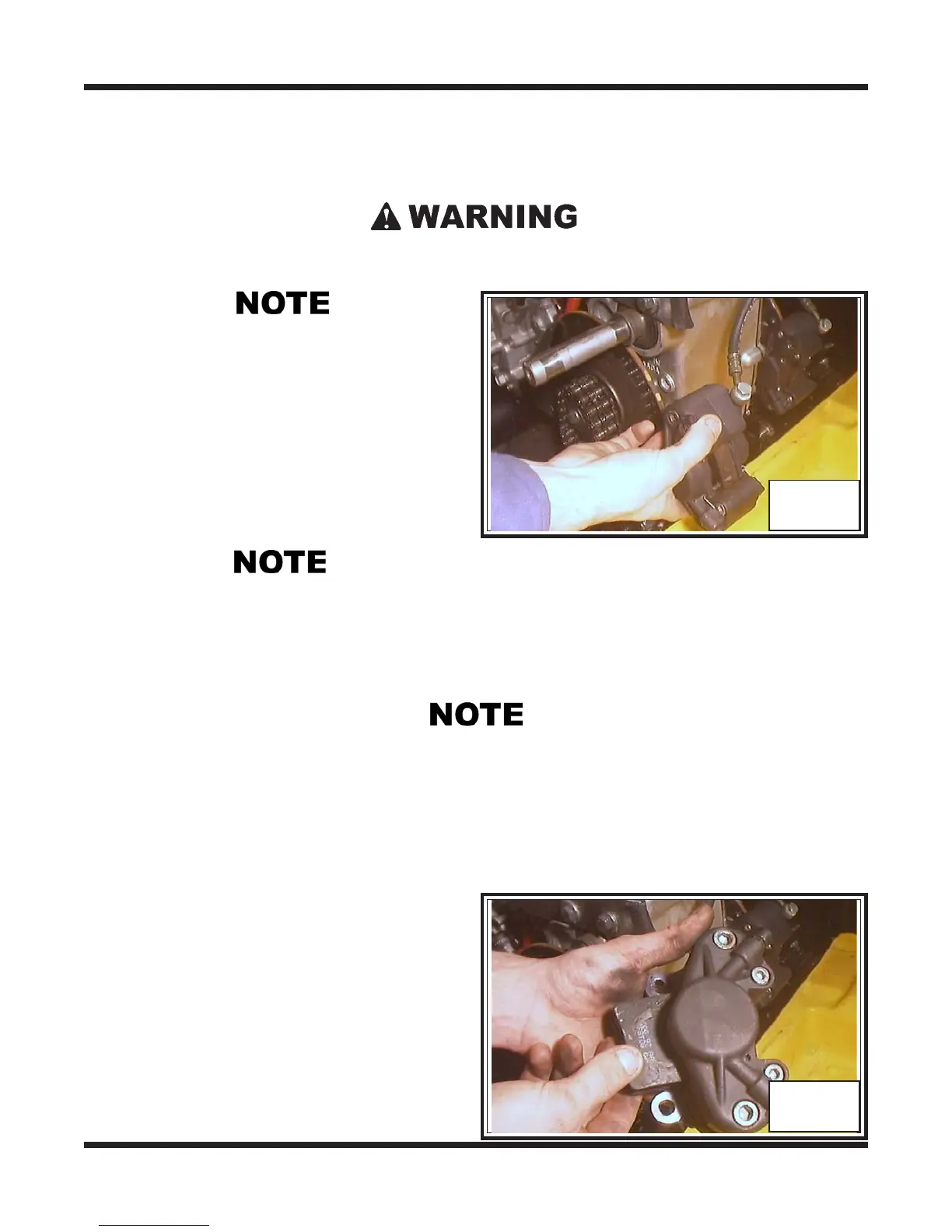

4. Remove the 2 fasteners and flat wash-
ers. Slide the caliper from the brake
disc. Photo BR-2
You may leave the brake fluid line connected
to the caliper
5. Remove the 2 cotter pins securing the
brake pads within the caliper and slide
the brake pads out through the front.
Photo BR-3
6. Perform the procedure, Hydraulic
Brake Pad Inspection.
When removing the caliper from the transmission, take note of any shims that may have
been used between the caliper and transmission mounting boss. Earlier models may have
employed shims to correctly align the calipers with the brake discs. Ensure that these are
reinstalled when remounting the caliper.
BR-2
BR-3
The left hand caliper requires the removal of the drive belt and driven clutch to access the
mounting bolts to the transmission. Refer to Removing the Driven Clutch in Section CS
of this service guide.
secure the hydraulic brake caliper to the transmission housing. To do this you will
need to rotate the tires by hand until they are lined up. Photo BR-1
