Brake System Argo Service Manual
BR-38
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421

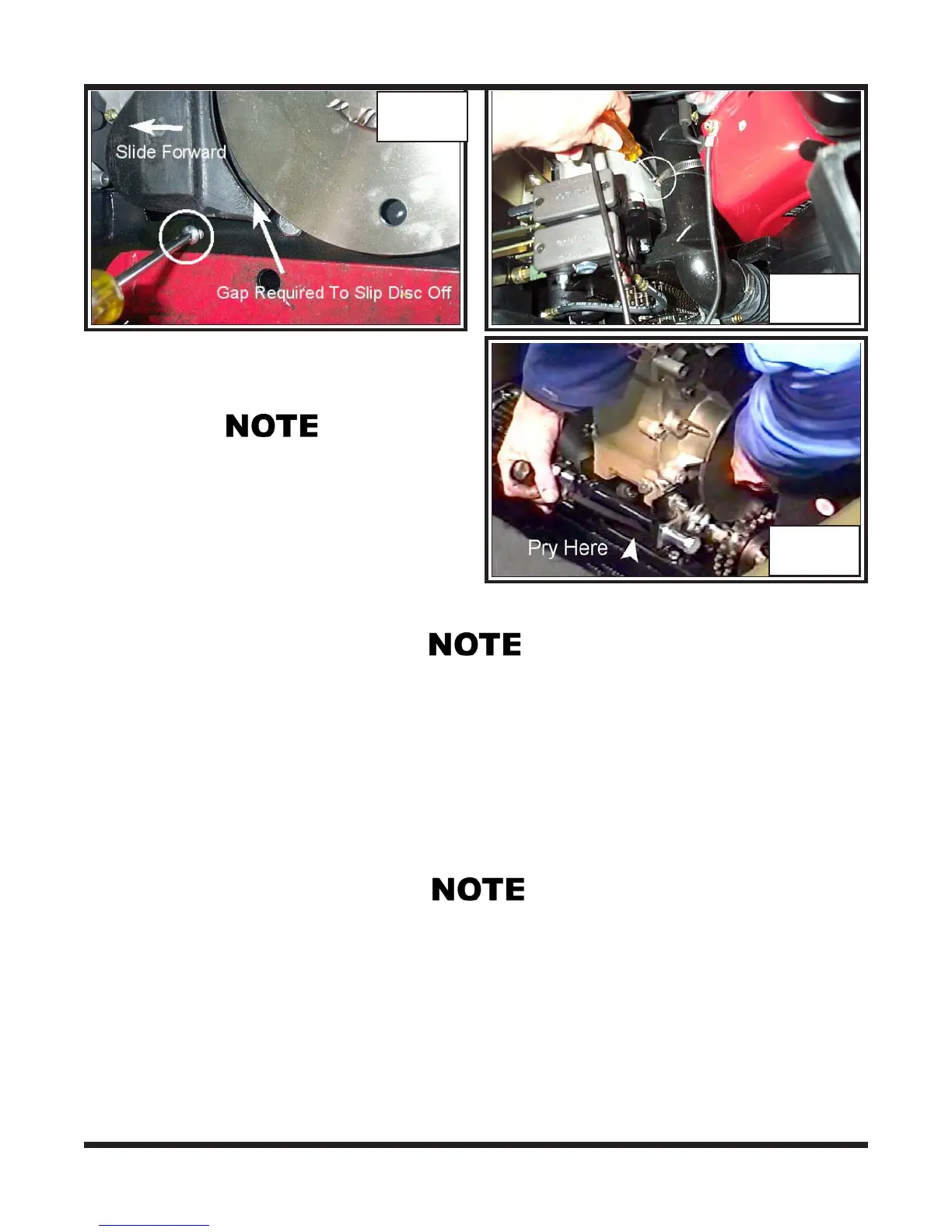

To remove the brake disc you may need to
raise the power pack up by prying at the rear
of the power pack frame. Raise it high enough
for the brake disc to clear the drive sprocket
when slipping it from the output shaft. Photo
BR-67
BR-65
BR-66
10. Slide the brake disc from the output
shaft.
If the brake disc won't move:
• If removing the right-hand brake disc, perform the servicing procedure, Battery
Removal in Section ES of this service guide
• Install a wheel puller on the brake disc and remove it from the transmission output
shaft.
BR-67
Vehicles manufactured prior to October 21, 1999 utilize keyways machined within the
brake disc. There are two 1/4" x 1/4" keys used on the keyed output shafts. Vehicles
produced from S/N's: S11188, SN11196, CB16459, RB16446 & BF11143, are splined.
These accommodate the newer style splined output shafts. These splined brake discs are
fully exchangeable with the keyed versions if desired, however this would also mean
replacing the output shaft as well. Keyed brake discs and outputs are still available.
